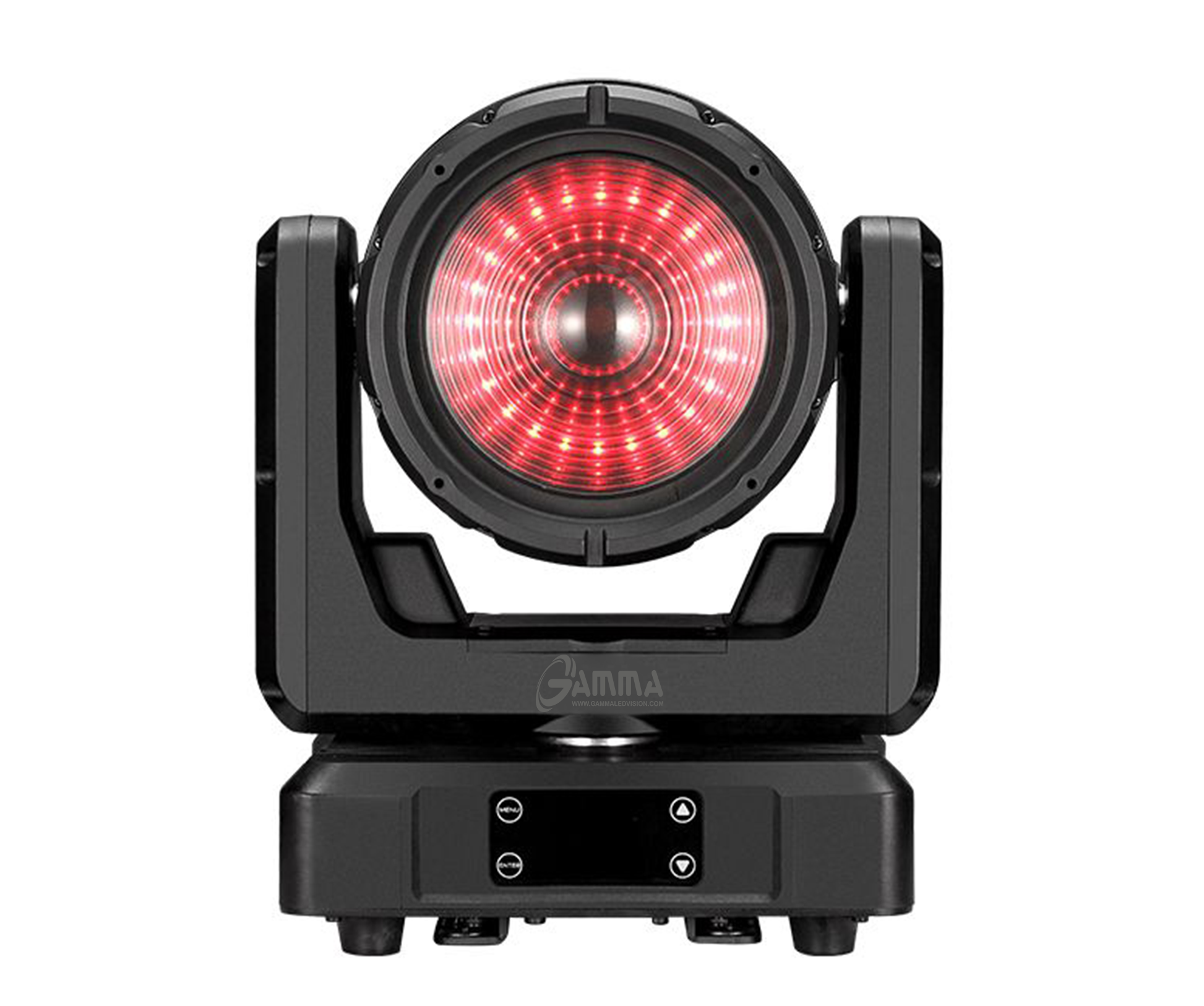

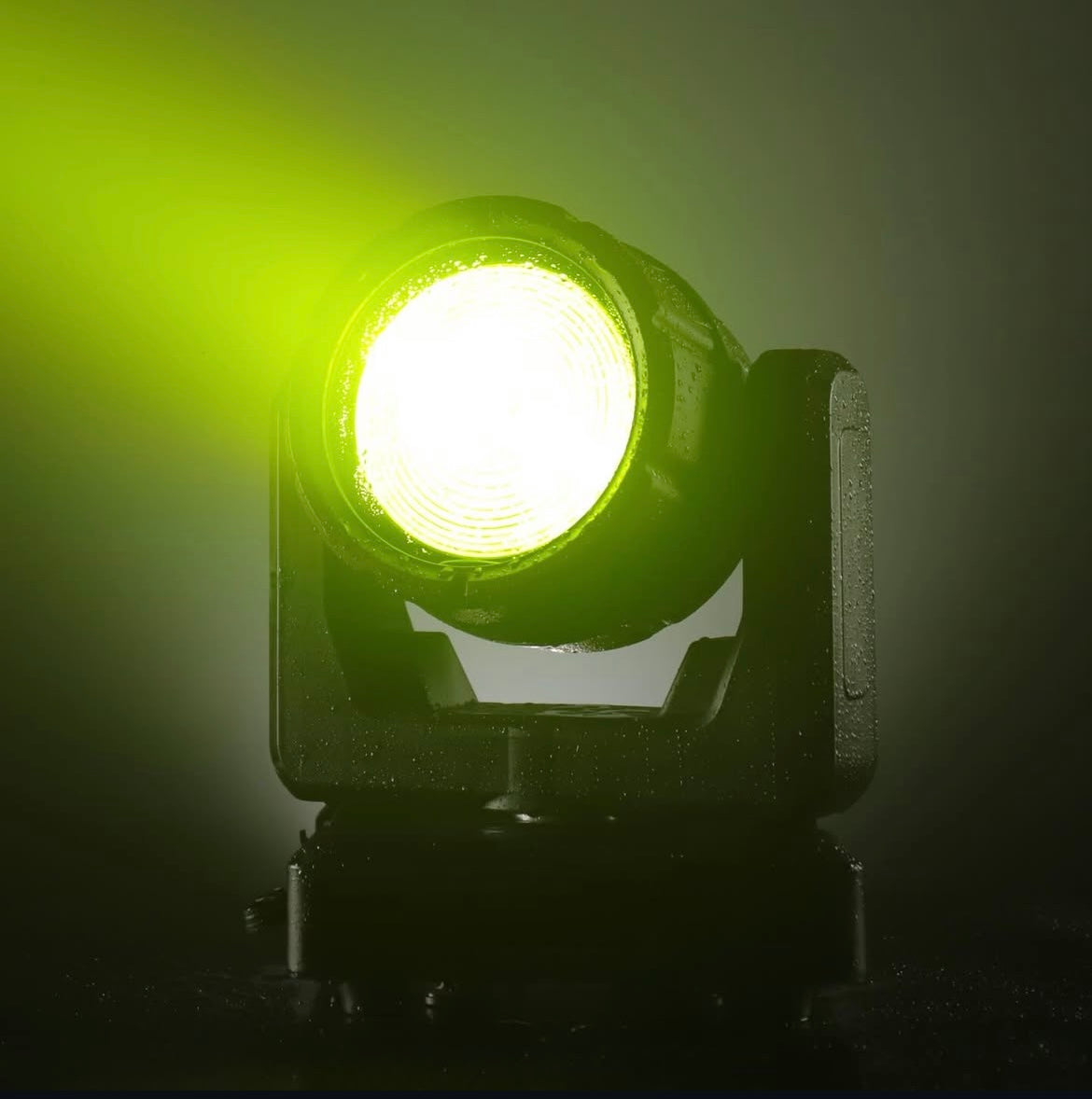

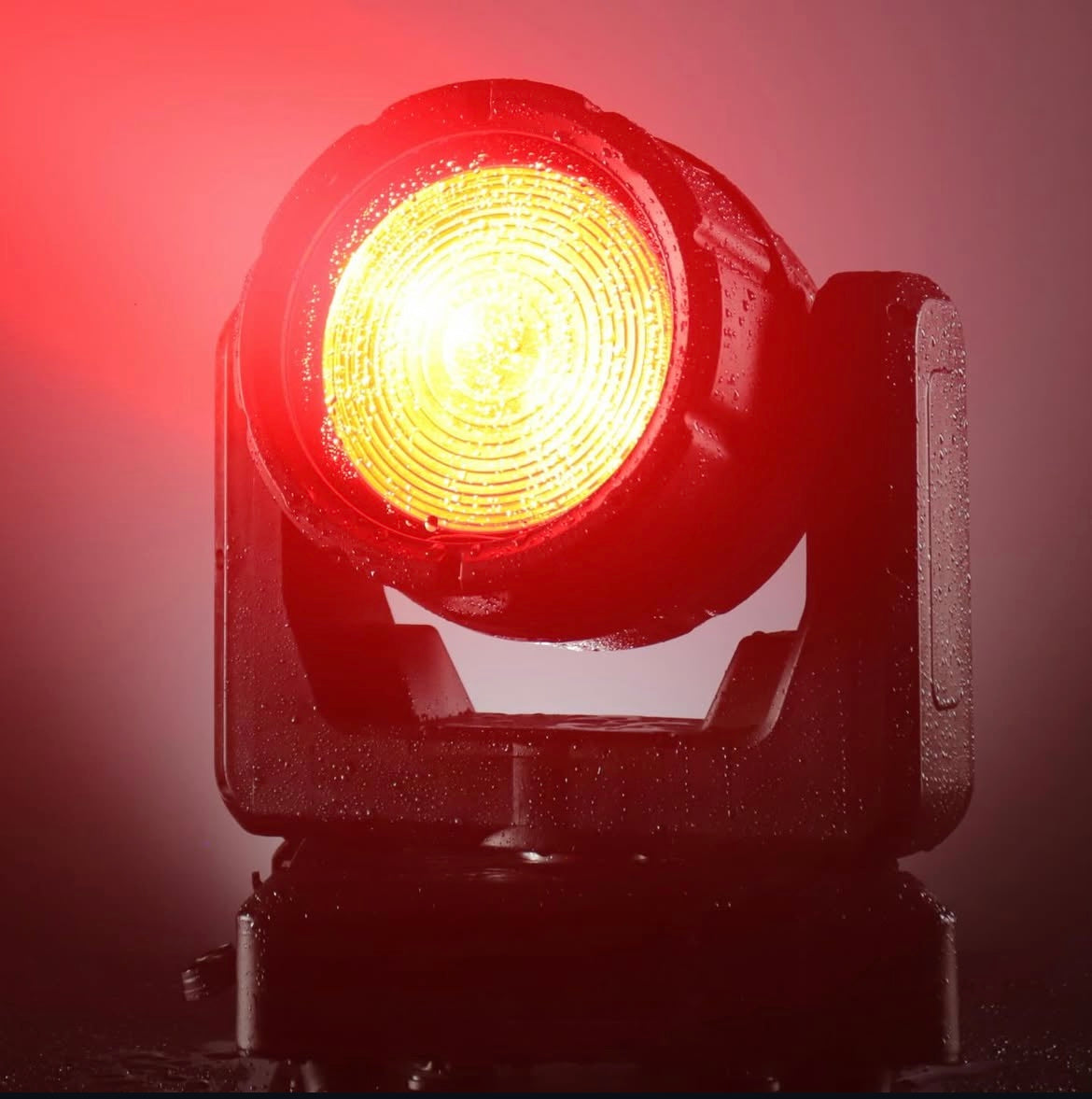

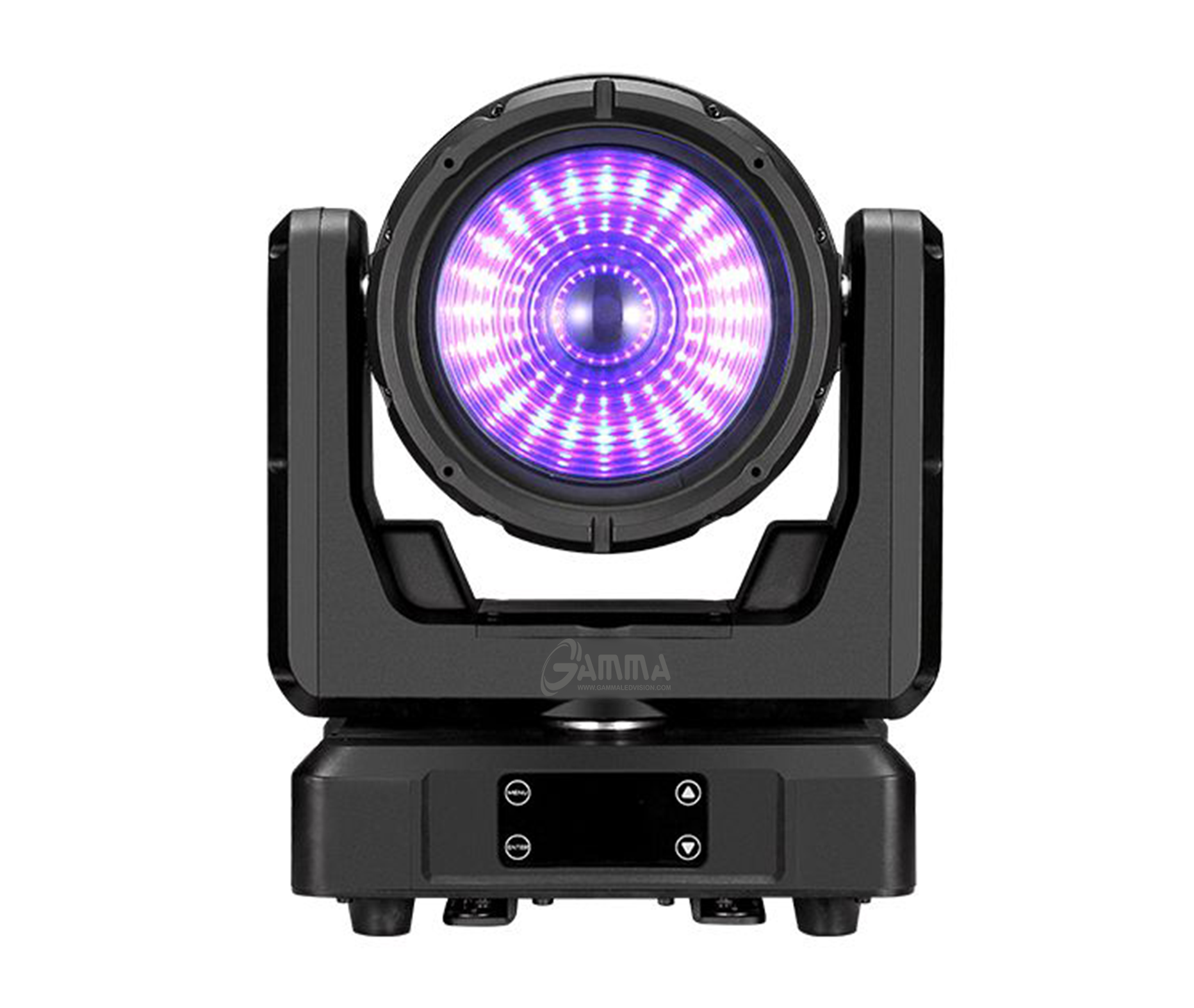

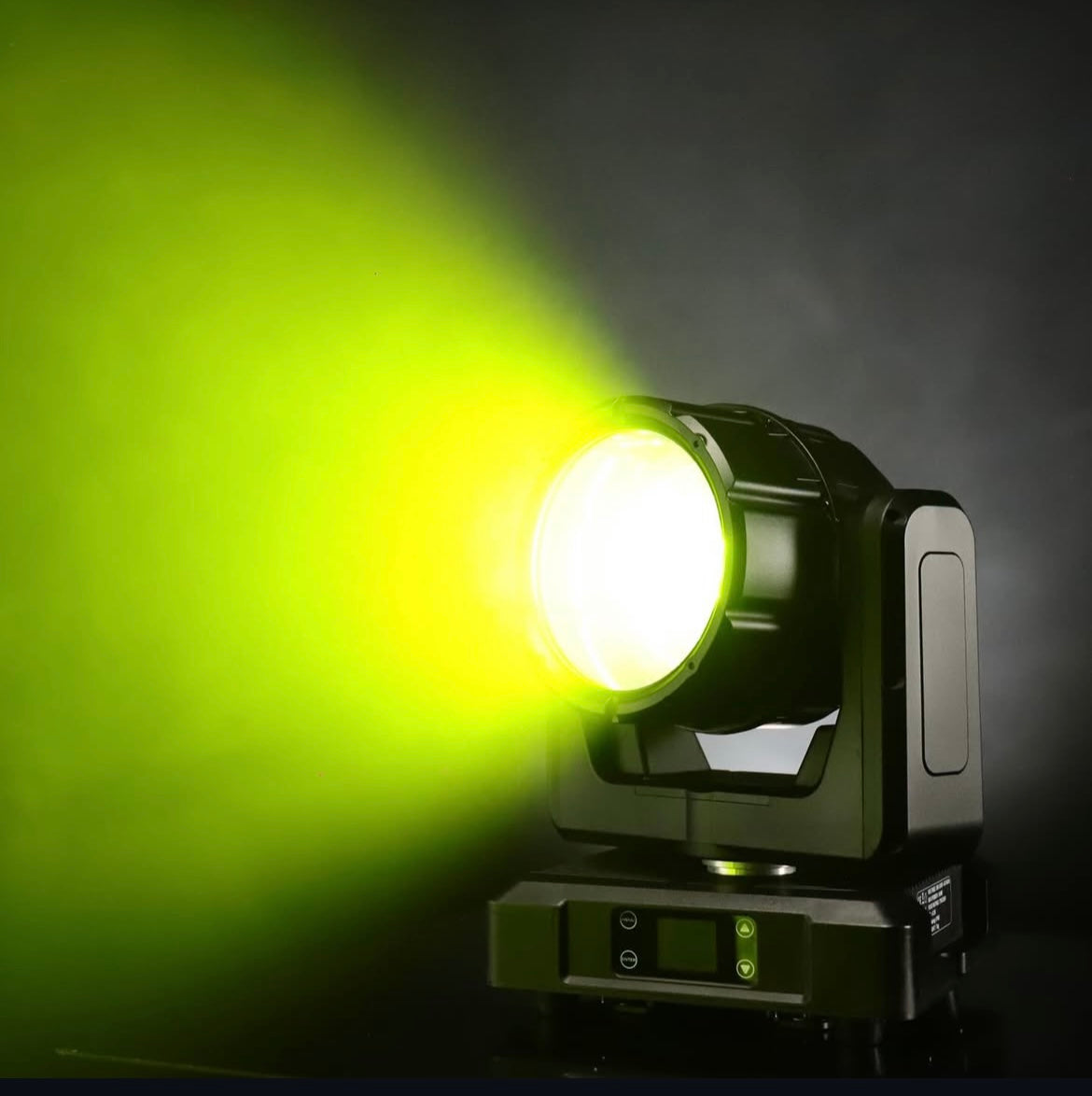

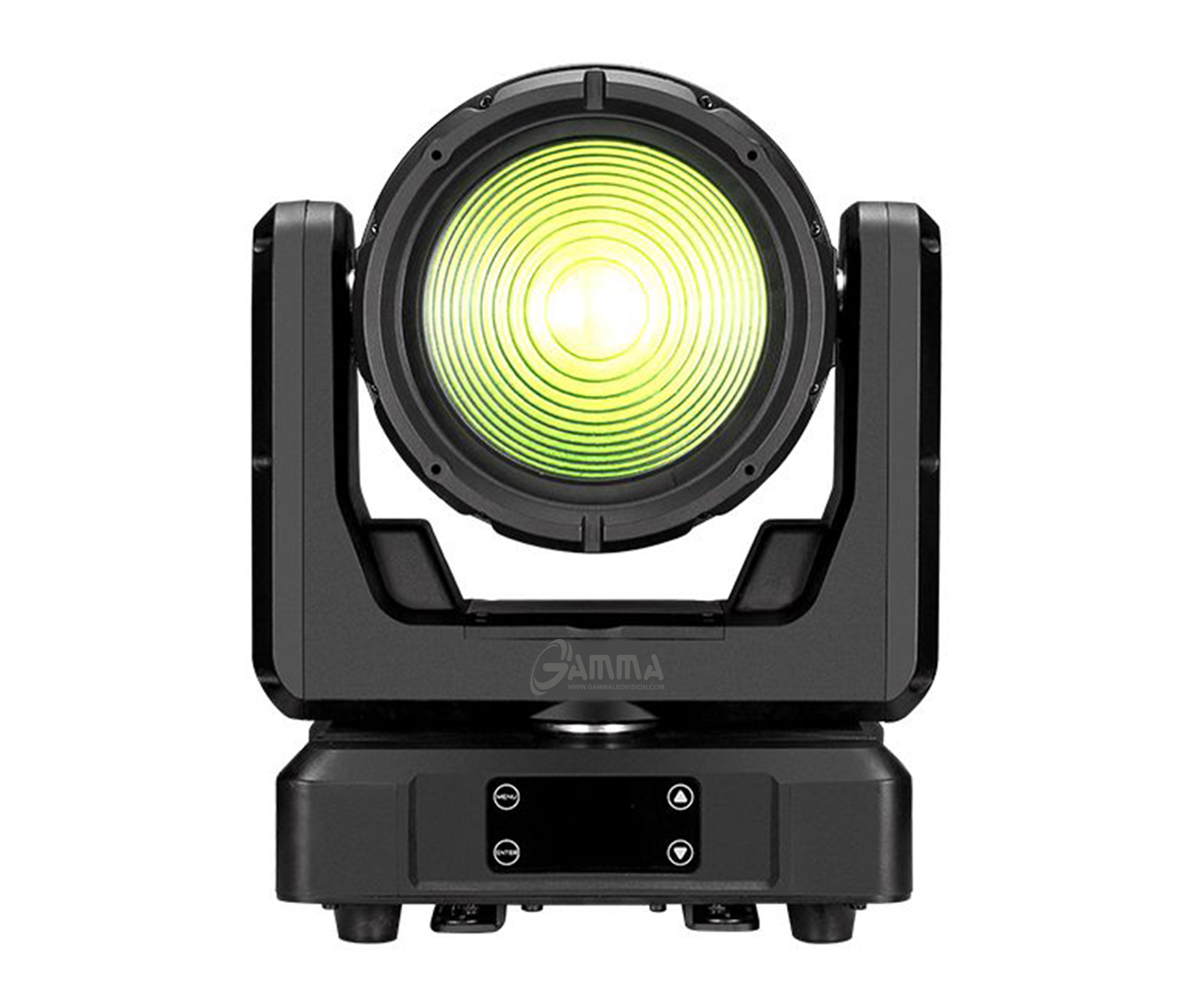

The Tidal Helix Z IP delivers professional performance with a 120W RGBL LED main source and a pixel-mapped background layer of 48 RGB+WW LEDs. Its versatile 3.8º to 38º motorized zoom allows for sharp, defined beams and smooth, expansive washes. A 140mm Fresnel lens ensures high-quality light distribution and color consistency across the entire range. Calibrated color modes and green-magenta shift provide precision control for demanding production environments. The IP-65 rated housing protects the fixture from outdoor elements, ensuring reliability in any weather. Integration is seamless with support for DMX, Art-Net, and sACN protocols. This compact 15.5-pound fixture is ideal for both high-impact indoor events and rugged outdoor installations.
| Light Source | 120W RGBL LED Main Layer |
| Background Layer | (48) 1W RGB+WW LEDs with Pixel Mapping |
| Zoom Range | 3.8º to 38º Motorized Zoom |
| Lens | 140mm Fresnel Lens |
| Protection Rating | IP-65 Outdoor Rated |
| Luminous Flux | 2,500 Lumens |
| Pan/Tilt | 540 Degree Pan, 220 Degree Tilt |
| Control Protocols | DMX 512, Art-Net, sACN |
| Color Temperature | 2,000K - 12,850K |
| Voltage | AC100-240V |
