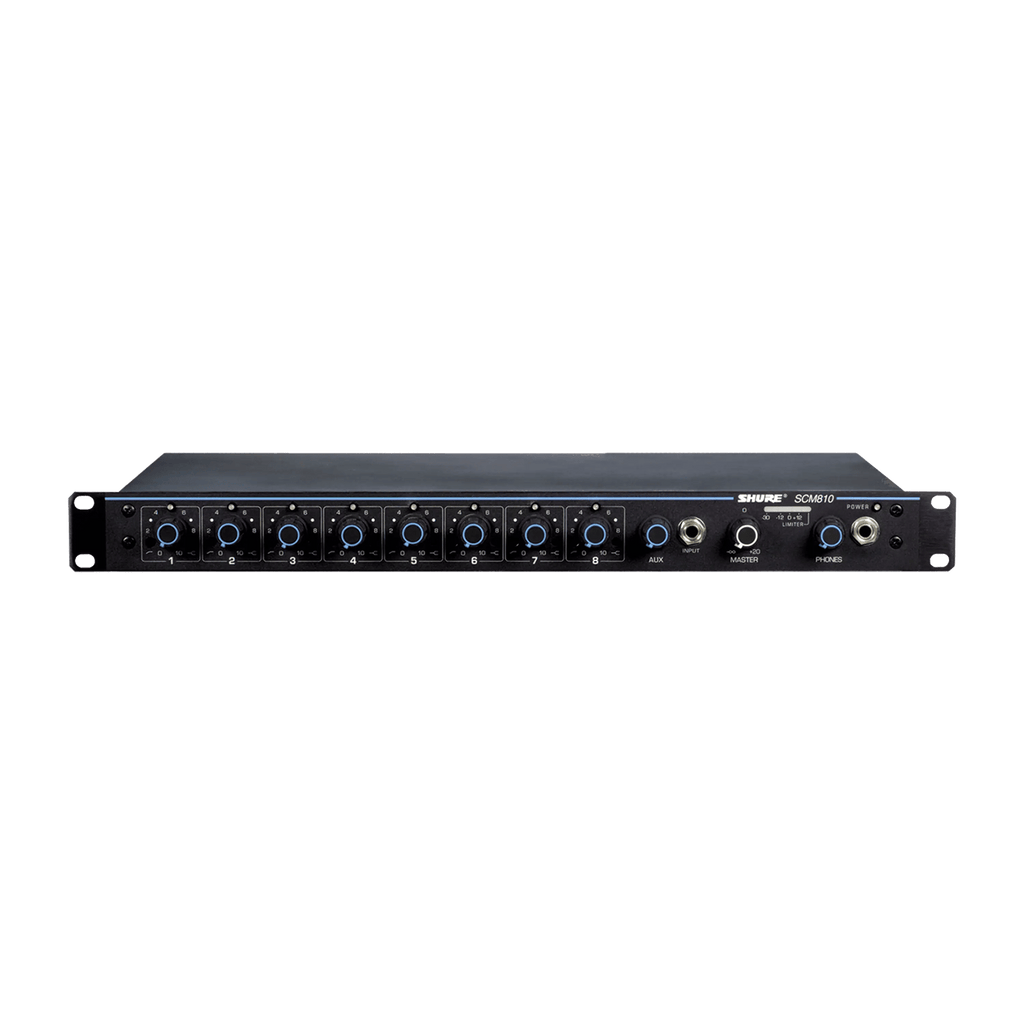

The Shure SCM810 is an advanced 8-channel automatic mixer engineered to significantly enhance audio quality in multi-microphone environments. Its proprietary IntelliMix technology precisely activates only the microphones in use, thereby reducing ambient noise and feedback. Key features include rapid microphone selection, comprehensive adjustable equalization, and an optimized low-frequency roll-off. A peak-responding output limiter ensures consistent audio levels, preventing distortion in dynamic soundscapes. This mixer is an indispensable tool for professional conferencing, broadcast, and sound reinforcement applications. It delivers superior clarity and intelligibility, making it a recognized standard in automatic audio mixing solutions.
| Channels | 8-channel automatic mixer |
| Technology | IntelliMix |
| Equalization | Adjustable EQ |
| Low-Frequency Control | Adjustable low-frequency roll-off |
| Output Limiter | Peak-responding |
| Frequency Response | 50 Hz to 15,000 Hz |
| Inputs | 8 balanced microphone-level, 1 unbalanced auxiliary-level |
| Outputs | 1 balanced master, 1 unbalanced auxiliary |
| Phantom Power | +12 Vdc |
| Dynamic Range | 100 dB |
| Power Requirements | 100-120 Vac, 50/60 Hz, 15 W |
