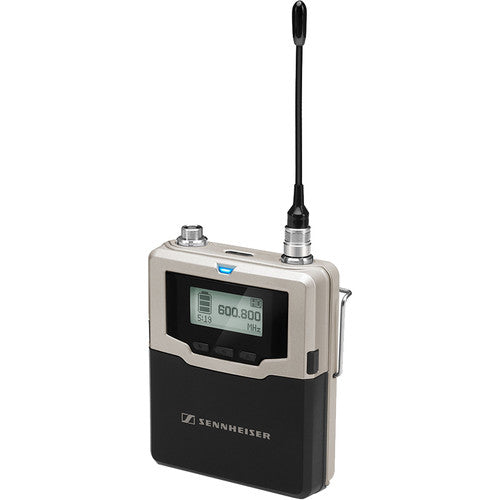

The SK 9000 digital bodypack transmitter delivers uncompressed audio with the same clarity as a high-quality wired connection. Its die-cast magnesium housing provides a lightweight yet rugged solution for demanding stage and studio environments. This transmitter features a 3-pin Lemo socket compatible with various lavalier microphones and instrument signals. An intuitive icon-based menu allows for rapid configuration while infrared synchronization ensures seamless pairing with receivers. The device utilizes exchangeable lithium-ion energy packs to maximize operational efficiency and reduce environmental waste. Compact dimensions allow for easy concealment within costumes for theatrical or broadcast applications. Digital transmission technology guarantees reliable performance even under the most challenging RF conditions.
| Frequency Range | 630 to 718 MHz (B5-B8 Band) |
| Housing Material | Die-cast magnesium |
| Audio Input | 3-pin Lemo socket |
| RF Output Power | Mode HD: 10 mW rms, 50 mW peak; Mode LR: 25 mW rms, 50 mW peak |
| Audio Sampling | 24-bit / 96 kHz |
| Frequency Response | 30 Hz to 20 kHz |
| Weight | 0.32 lbs (with battery pack) |
| Dimensions | 3.23 x 2.56 x 0.87 inches |
| System Latency | 3 milliseconds |
| Input Sensitivity | Adjustable in 3 dB steps from -6 dB to +42 dB |
