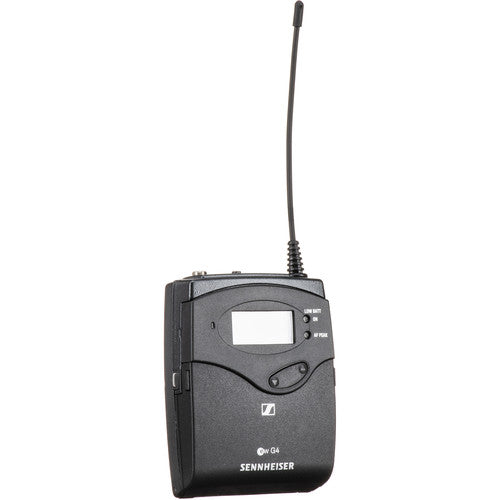

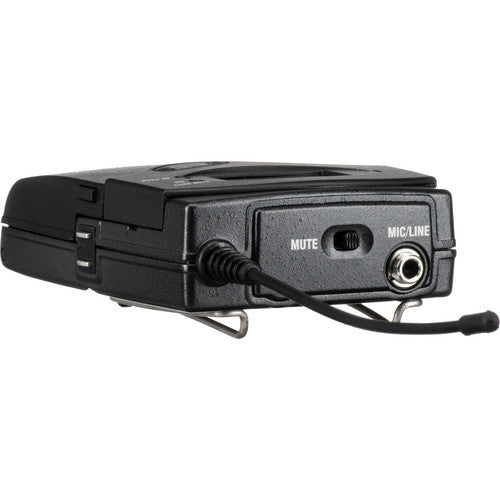

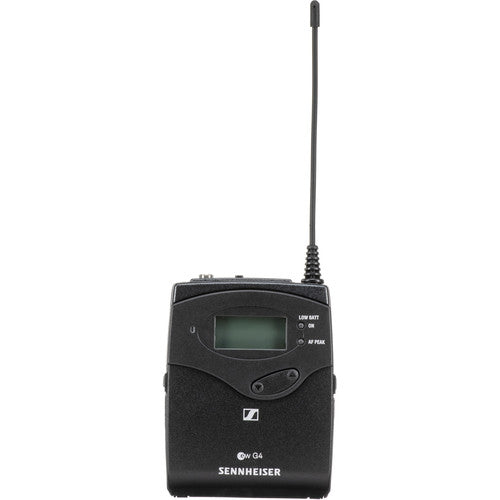

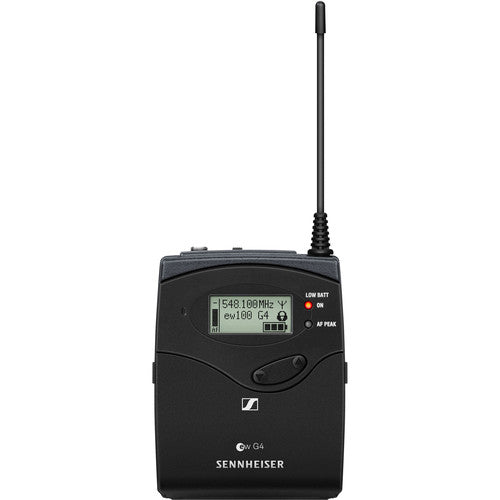

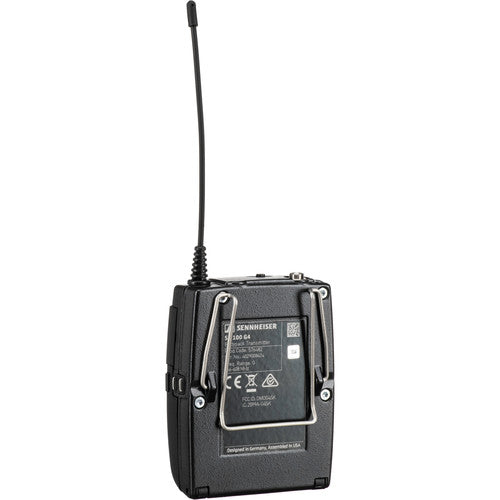

This professional bodypack transmitter provides reliable wireless transmission for demanding stage applications. Built with a robust housing, the unit withstands the rigors of daily use in live environments. Infrared synchronization allows for seamless pairing with receivers, ensuring quick and easy setup. The system supports up to 20 compatible channels across a 42 MHz tuning bandwidth. Users benefit from 1680 selectable frequencies within a stable UHF range for interference-free operation. High RF output power provides a dependable signal reach of up to 300 feet. This transmitter is a core component of the industry-standard evolution wireless G4 series.
| Frequency Range | 516 - 558 MHz (Band A) |
| Dimensions | 3.23 x 2.52 x 0.94 inches |
| Transmission Range | Up to 300 feet |
| RF Output Power | 30 mW |
| Input Impedance | 40 kΩ (unbalanced) / 1 MΩ |
| Signal-to-Noise Ratio | ≥ 110 dBA |
| Tuning Bandwidth | 42 MHz |
| Frequency Selection | 1,680 frequencies, tunable in 25 kHz steps |
