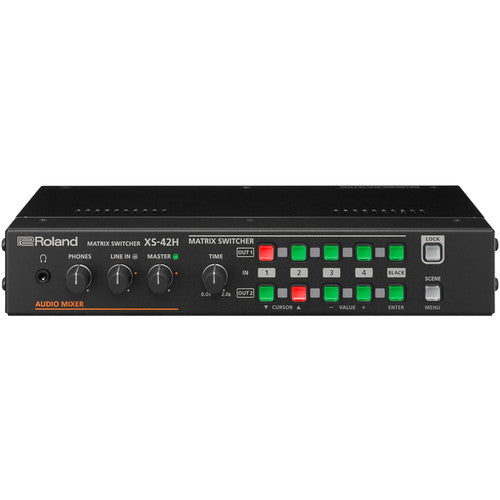

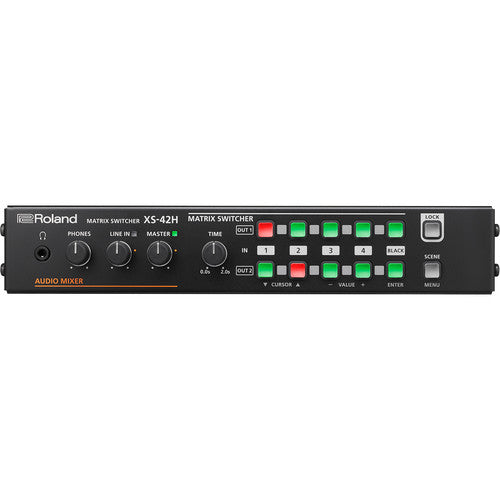

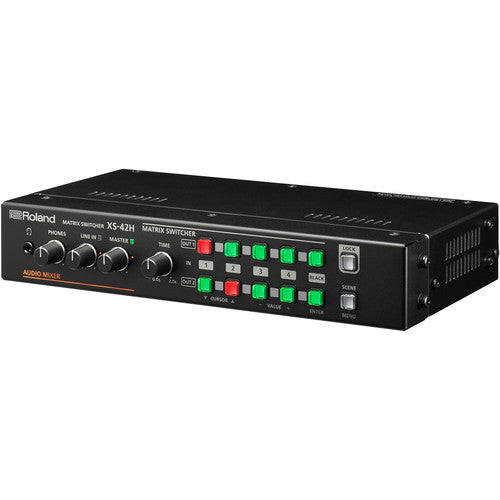

The Roland XS-42H is a professional-grade 4x2 HDMI matrix switcher designed for seamless huddle space and meeting room integration. It features four primary HDMI inputs and two outputs with integrated scaling to ensure optimal resolution across disparate displays. Automatic input detection eliminates the need for manual switching, allowing presenters to share content instantly upon connection. The internal audio mixer manages embedded HDMI audio and external RCA inputs, providing high-fidelity sound via dedicated outputs. Users can control the entire system remotely through a web browser on any networked tablet or smartphone. Supporting 10-bit 4:4:4 video processing, the unit delivers broadcast-quality visual clarity for critical presentations. This compact solution replaces complex AV setups with a reliable, user-friendly interface.
| Video Processing | 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits |
| HDMI Inputs | 4 x HDMI Type A (HDCP Supported) |
| HDMI Outputs | 2 x HDMI Type A (HDCP Supported) |
| Maximum Resolution | 1920 x 1200 @ 60Hz |
| Audio Inputs | 4 x HDMI, 1 x Stereo RCA |
| Audio Outputs | 2 x HDMI, 1 x Stereo RCA, 1 x 3.5mm Headphone |
| External Control | RS-232 (DB-9), LAN (RJ45), USB |
| Scene Memory | 10 presets for instant setup recall |
| Power Consumption | 25 Watts |
| Operating Temperature | 32 to 104 degrees Fahrenheit |
