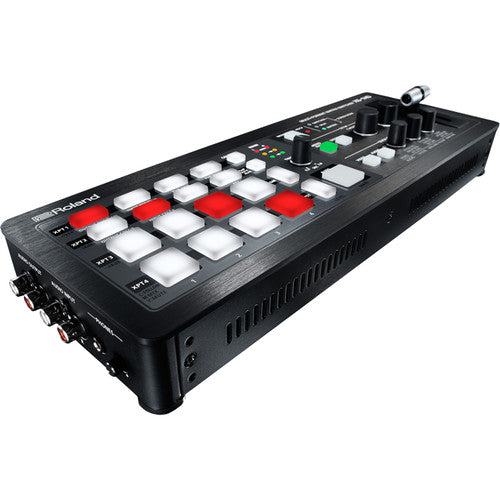

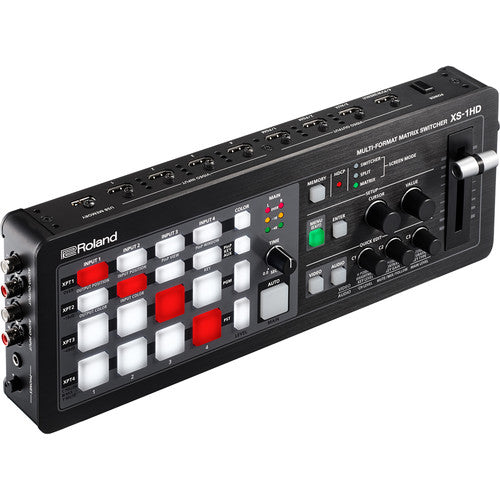

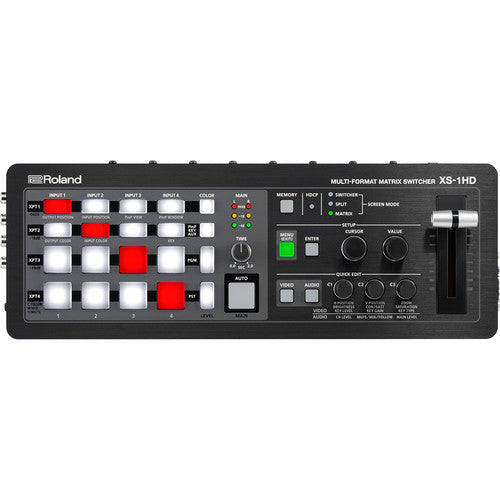

The Roland XS-1HD is a professional-grade multi-format matrix switcher designed for high-performance live event production. It features four HDMI inputs and outputs with high-quality 4:4:4 10-bit processing for crystal-clear video. Each input includes an internal scaler and frame synchronizer to handle diverse signal formats seamlessly. Three operation modes—Matrix, Switcher, and Split—provide versatile control over multi-screen configurations and complex compositing. The integrated eight-channel digital audio mixer allows for precise sound management alongside video transitions. Its compact footprint, roughly the width of a 13-inch laptop, makes it ideal for space-constrained environments like podiums or media carts. This unit ensures reliable performance with built-in EDID emulation and full HDCP compliance for protected content.
| Video Processing | 4:4:4 (Y/Pb/Pr, RGB) / 10-bit |
| Input Connectors | 4 x HDMI Type A (HDCP Supported) |
| Output Connectors | 4 x HDMI Type A (HDCP Supported) |
| Audio Input | RCA pin type (stereo) |
| Audio Output | RCA pin type (stereo), Stereo mini phones |
| Audio Sampling Rate | 24-bit / 48 kHz |
| Operation Modes | Matrix, Switcher, Split |
| Remote Control | RS-232 DB-9 type (Male) |
| Power Consumption | 25 Watts |
| Preset Memories | 16 |
