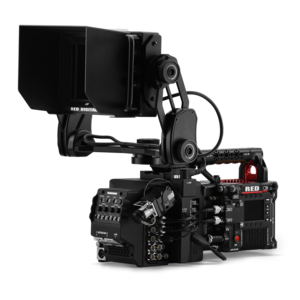

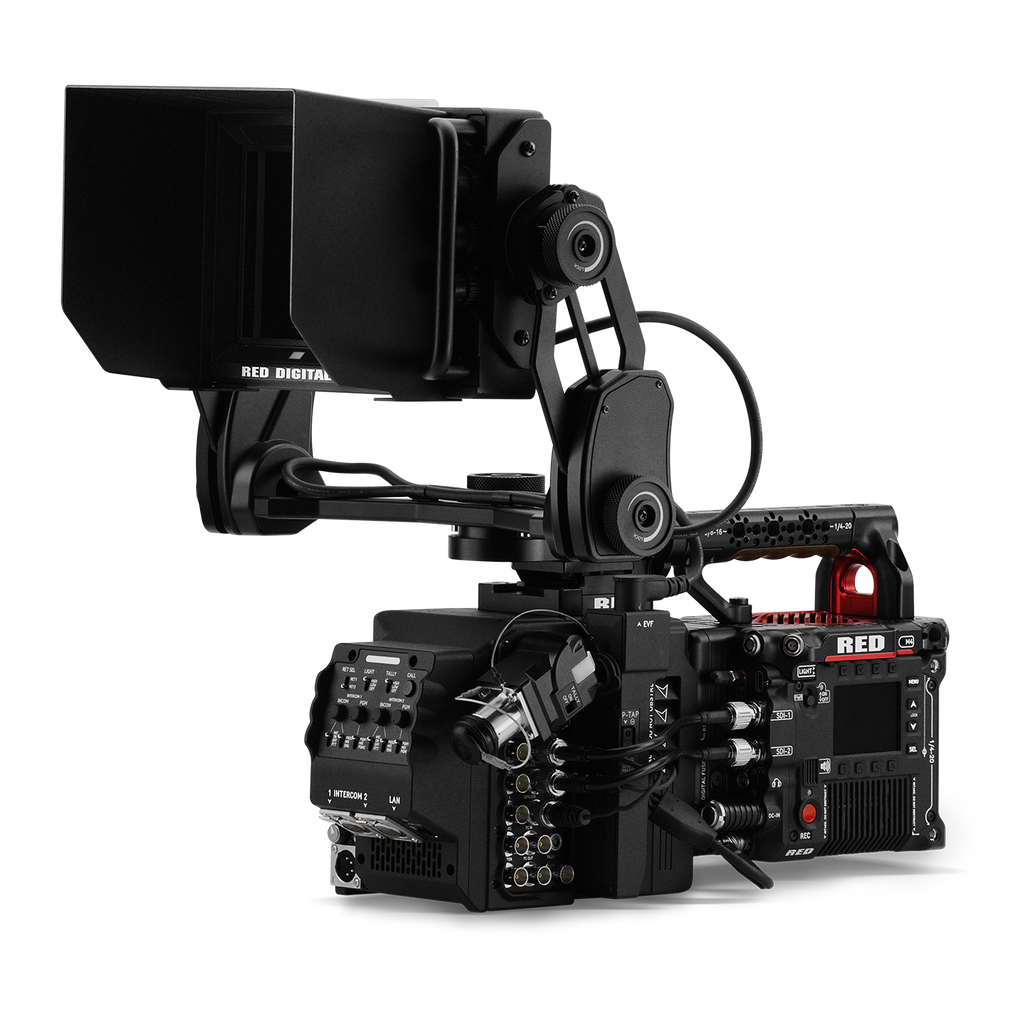

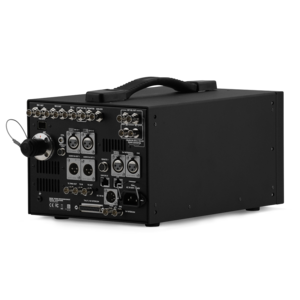

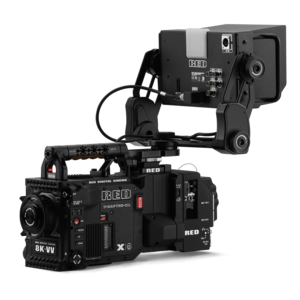

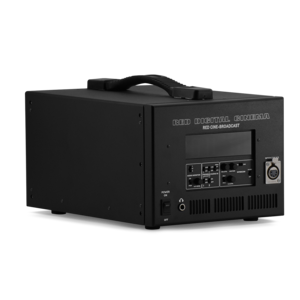

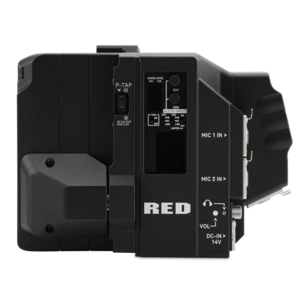

The RED Cine-Broadcast Pack transforms V-RAPTOR camera systems into powerful live production tools with cinematic fidelity. This comprehensive solution enables dual-channel 4K 60P HDR transmission over 12G-SDI for uncompromising broadcast quality. Integrated SMPTE ST 2110 support ensures the module is fully prepared for modern IP-based broadcast environments. Advanced workflows allow for 8K 120FPS R3D live streaming and AI-driven augmentation when paired with RED Connect licenses. A dedicated Broadcast Color pipeline facilitates real-time multi-camera matching using industry-standard remote control panels. The system supports super slow-motion capabilities and live-to-headset functionality for immersive monitoring. Each pack includes the camera body, broadcast module, base station, and premium monitoring accessories for a turnkey professional experience.
| Material | Aerospace-grade Aluminum and Magnesium Alloy |
| SDI Output | Dual 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI |
| IP Video Standard | SMPTE ST 2110 (TR-08) Ready |
| Resolution Support | Up to 8K at 120FPS (via RED Connect) |
| Fiber Connection | LEMO SMPTE 311M/304M Hybrid Optical |
| Audio Input | Dual 3-Pin XLR with +48V Phantom Power |
| Operating Temperature | 32° to 104°F |
| Module Weight | 6.35 lbs |
| Module Dimensions | 6.02 x 6.06 x 7.83 inches |
