The grandMA3 onPC command wing provides a sophisticated hardware solution for mobile lighting professionals. It replicates the command area of full-sized grandMA3 consoles to ensure a seamless workflow transition. This unit unlocks 4,096 control parameters when paired with the grandMA3 onPC software on a computer. Precision control is achieved through ten motorized 60 mm faders and forty separate tactile playbacks. Integrated connectivity features include three DMX ports, MIDI interfaces, and a linear timecode input for synchronization. The ergonomic design incorporates silent backlit keys and five dual-encoders for efficient programming in any environment. This versatile wing serves as a powerful primary controller for smaller venues or a robust backup system.
| Control Parameters | 4,096 (HTP/LTP) |
| Motorized Faders | 10 x 60 mm faders, 2 x 100 mm A/B faders |
| DMX Interface | 2x DMX512-A Out (5pin XLR), 1x DMX512-A In (5pin XLR) |

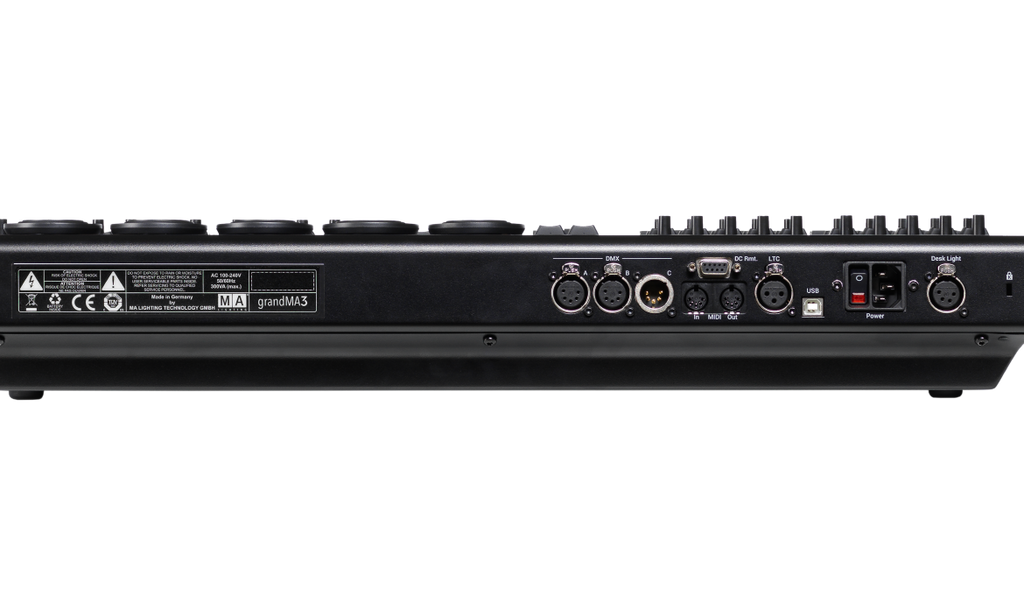

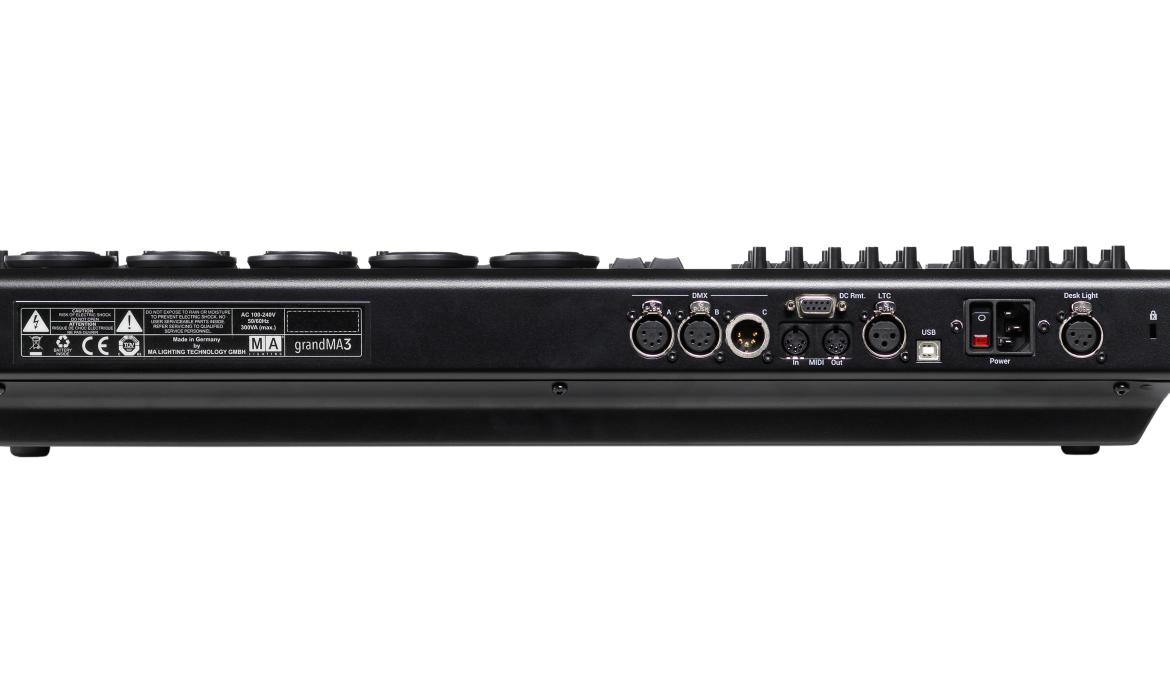

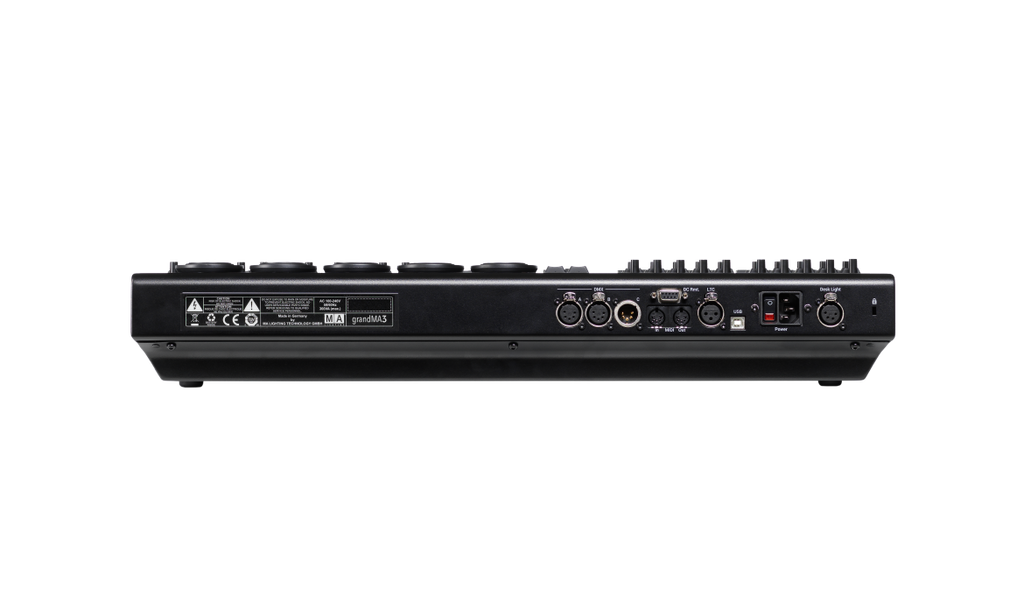

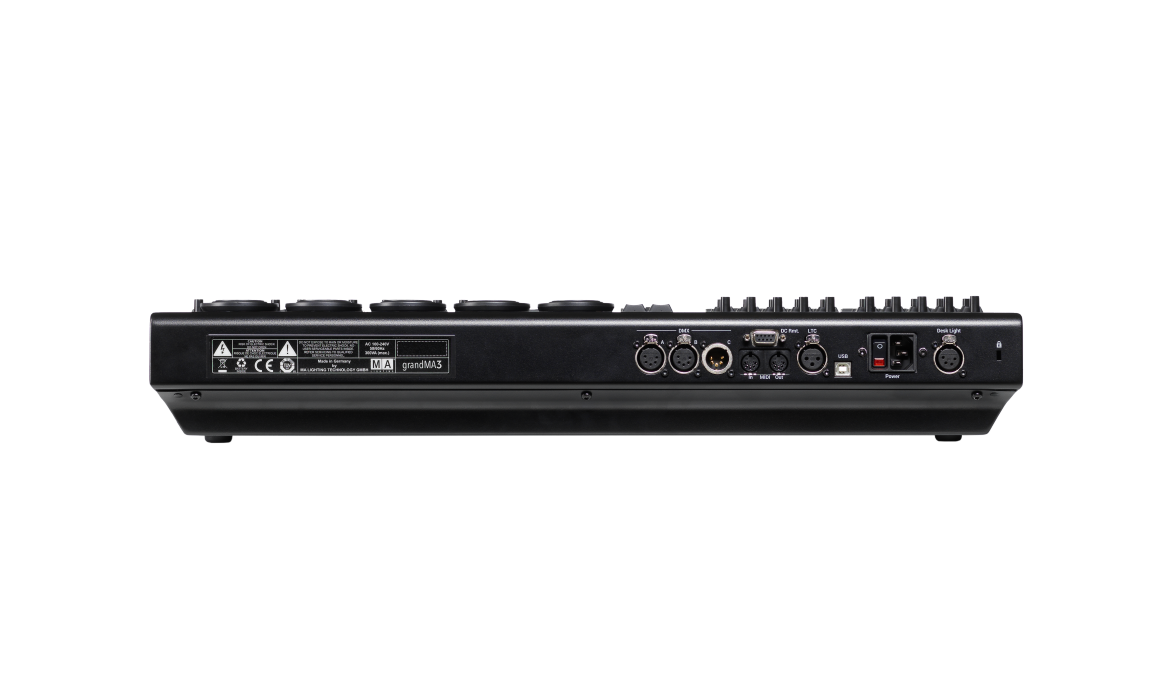

| Connectivity | 1x MIDI In, 1x MIDI Out, 1x Linear Timecode, 1x USB 2.0 Type B |
| Material | Professional-grade metal and high-impact plastic (estimated: true) |
| Operating Voltage | 100 - 240 V; 50/60 Hz |
| Dimensions | 24.4 x 16.8 x 4.0 in (estimated: true) |
| Weight | 22.05 lb (estimated: true) |
| Included Accessories | Dust cover, USB 2.0 cable, magnetic labeling plate, power cable |
| Operating Temperature | 32 °F up to 104 °F |
