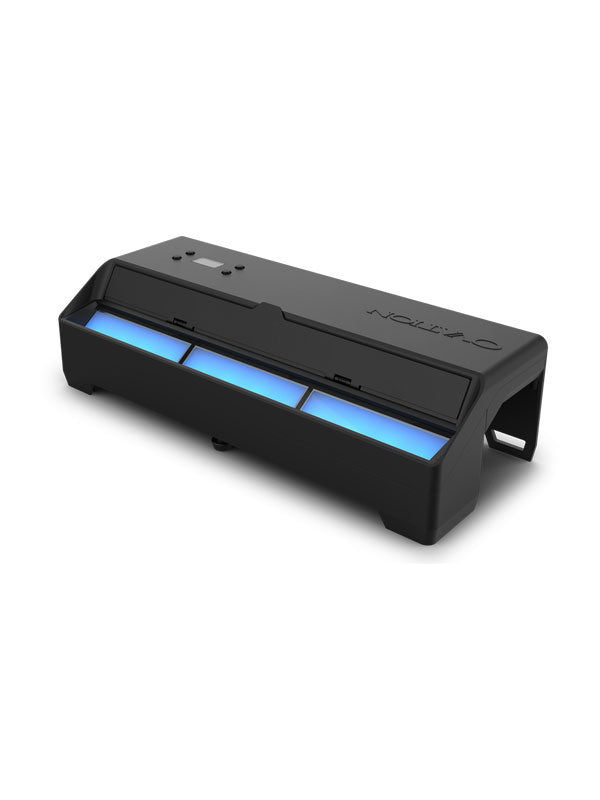

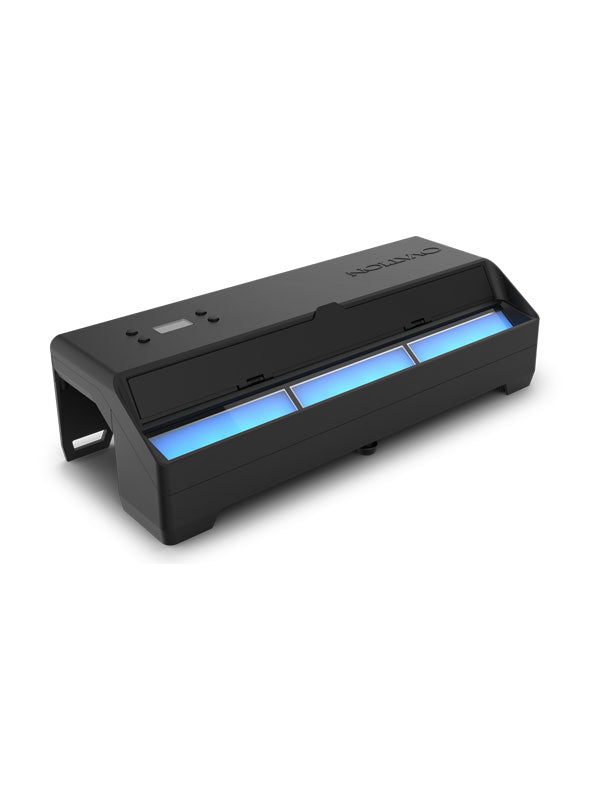

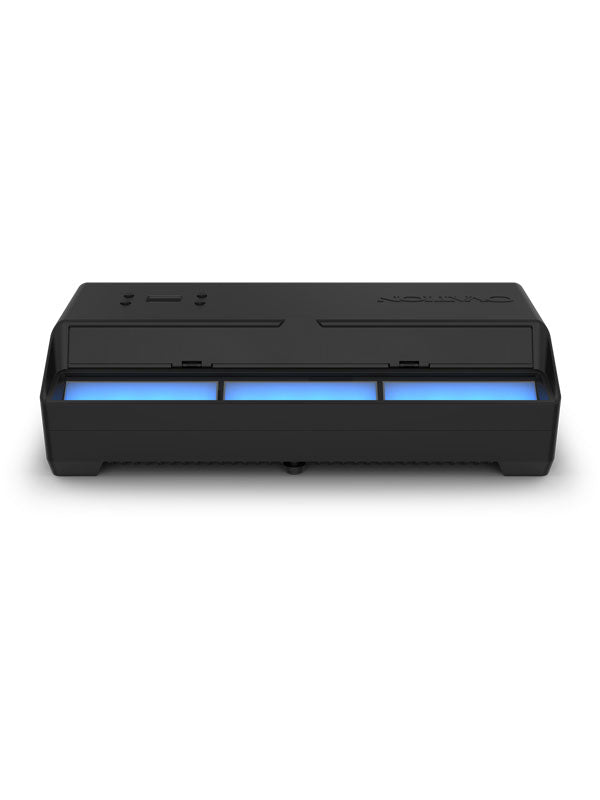

The Ovation CYC 1 FC stands as a premium, low-profile LED cyclorama light, engineered for discerning professional applications. Its advanced RGBAL color-mixing system delivers an expansive palette of highly saturated and realistic hues. Convection cooling ensures completely silent operation, making it indispensable for noise-sensitive environments like film sets and theatrical stages. Precision 16-bit dimming provides ultra-smooth intensity transitions, crucial for subtle lighting cues. The fixture projects a flat, even field of light with extensive reach and superior color uniformity. Versatile by design, it includes an integrated kickstand and adjustable glare shield for precise beam manipulation. This unit effectively serves as both a powerful cyclorama wash and a discreet footlight.
| Light Source | 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) |
| LED Power | 1.75 to 4.57 W per LED (1.4 A) |
| Life Expectancy | 50,000 hours |
| Color Temperature Range | 2800 to 6500 K |
| CRI (at 3200 K) | 90.6 |
| Beam Angle (Horizontal) | 81.1° |
| Beam Angle (Vertical) | 87.1° |
| Field Angle (Horizontal) | 124.6° |
| Field Angle (Vertical) | 148.1° |
| Lumens | 8,966 |
| Illuminance | 210 lux @ 16.4 ft |
| PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 27 Hz |
| Control Protocol | DMX, RDM |
| DMX Channels | 2, 4, 5, 8, 11, 13, 14, 16 or HSV (9 personalities) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Consumption (120V) | 139 W, 1.14 A |
| Certifications | CE, MET, FCC |
| IP Rating | IP20 (Dry location) |
| Operating Temperature | -4 °F to 113 °F |
| Housing Material | Aluminum die-cast |
| Exterior Color | Black |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Power Cable Length | 5 ft |
