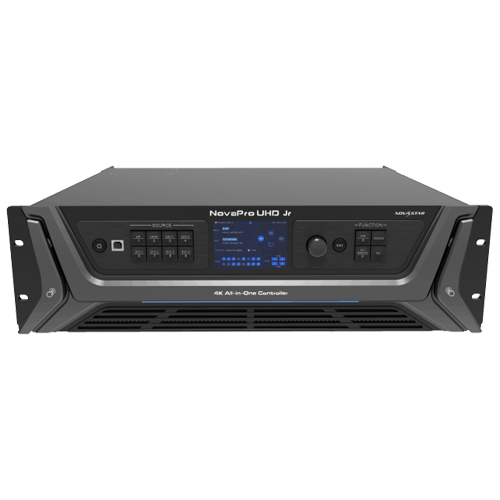

The NovaPro UHD Jr is a professional all-in-one controller integrating high-definition video processing with powerful sending card functions. It supports 4Kx2K@60Hz image processing via a versatile range of inputs including HDMI 2.0, DP 1.2, and 12G-SDI. With a loading capacity of up to 10.4 million pixels, it handles expansive screen configurations for high-end rental and fixed installations. The device features 16 Neutrik Gigabit Ethernet outputs and four optical fiber ports for stable, long-distance data transmission. Integrated V-Can software allows for advanced image mosaic effects and simplified operational workflows. Supporting HDR10-Optima and low-latency performance, it ensures superior visual quality for critical stage and conference applications. This rack-mountable solution is optimized for performance in fine-pitch LED display environments.
| Loading Capacity | 10,400,000 pixels |
| Max Input Resolution | 3840 x 2160 @ 60Hz |
| Ethernet Output Ports | 16x Neutrik Gigabit Ethernet |
| Optical Fiber Ports | 4x 10G OPT (Copy and backup modes) |
| Video Inputs | 4x DVI, 2x 12G-SDI, 1x DP 1.2, 1x HDMI 2.0 |
| HDR Support | HDR10-Optima |
| Rack Space | 3U (estimated: true) |
| Chassis Dimensions | 19.0 x 14.6 x 5.2 inches (estimated: true) |
