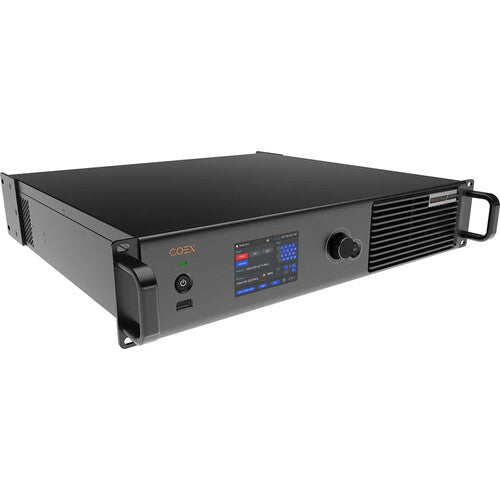

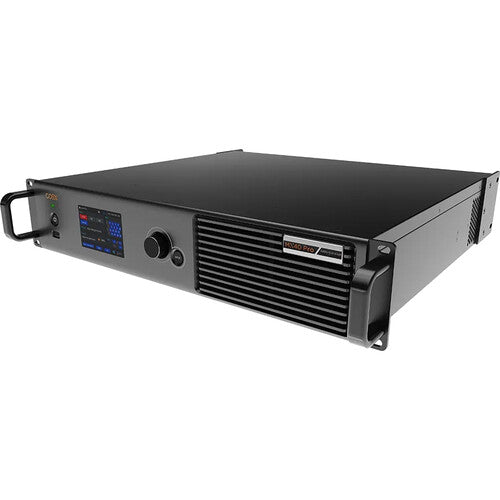

The MX40 Pro is a flagship 4K LED display controller designed for high-end video processing and screen management. This unit features the innovative Vision Management Platform software for seamless design and monitoring. Built with a robust hardware architecture, it ensures stunning image quality through precise color adjustment and high dynamic range support. The system simplifies complex LED installations for studio broadcasting, virtual production, and large-scale corporate events. It integrates advanced processing power to handle ultra-large resolutions with minimal latency. Professionals benefit from an intuitive interface that reduces setup time while maximizing visual performance. This controller represents the pinnacle of NovaStar's COEX series technology for demanding video environments.
| Video Inputs | 3x HDMI 2.0, 1x DP 1.2, 1x 12G-SDI |
| Output Capacity | 20x Ethernet ports, 4x 10G optical ports |
| Maximum Resolution | 4096 x 2160 @ 60Hz |
| Color Depth Support | 8-bit, 10-bit, and 12-bit inputs |
| Control Software | VMP (Vision Management Platform) |
| HDR Compliance | HDR10 and HLG compliant |
| Form Factor | Standard 2U rackmount chassis |
| Power Supply | 100-240V~, 50/60Hz, 1.6A |
| Operating Temperature | -20°C to +50°C |
| Latency | Low latency processing (estimated: true) |
