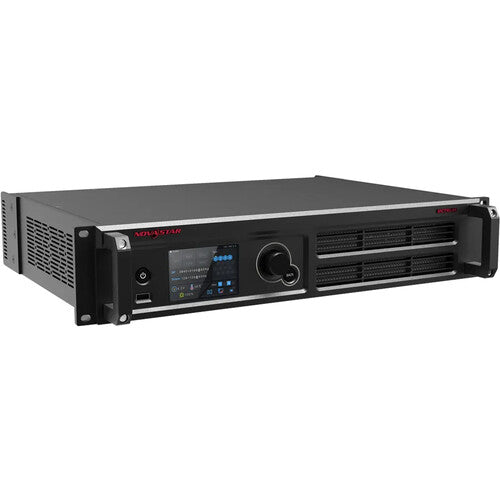

The NovaStar MCTRL4K is a professional-grade 4Kx2K LED display controller designed for high-resolution visual applications. It supports a massive loading capacity of up to 8.8 million pixels, ensuring stunning clarity on ultra-large screens. Integrated HDR10 and HLG technologies deliver lifelike images with enhanced dynamic range and vibrant color depth. Versatile input options include DP 1.2, HDMI 2.0, and Dual DVI to accommodate various source requirements. The unit features 16 Neutrik EtherCON outputs and 4 optical fiber ports for stable, long-distance signal transmission. Users can easily manage settings via a convenient webpage control interface for remote operation. This rack-mountable solution is ideal for high-end rental, fixed installations, and broadcasting environments.
| Maximum Resolution | 4096×2160 @ 60Hz |
| Pixel Loading Capacity | 8.8 Million Pixels |
| Video Inputs | 1x DP 1.2, 1x HDMI 2.0, 2x Dual DVI |

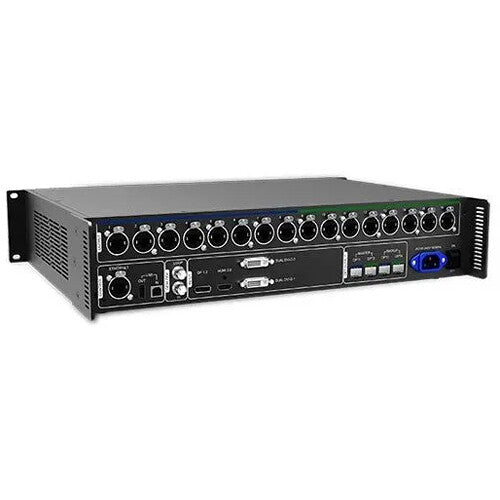

| Output Interfaces | 16x Neutrik EtherCON, 4x OPT |
| HDR Standards | HDR10-Optima, HLG |
| Control Methods | USB, Ethernet, Webpage Control |
| Form Factor | 2U Rackmount (estimated): true |
| Power Supply | AC 100V to 240V, 50/60Hz |
