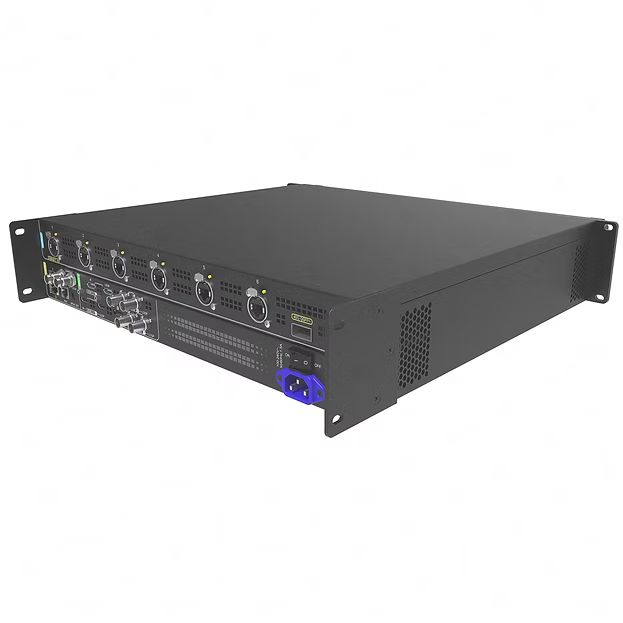

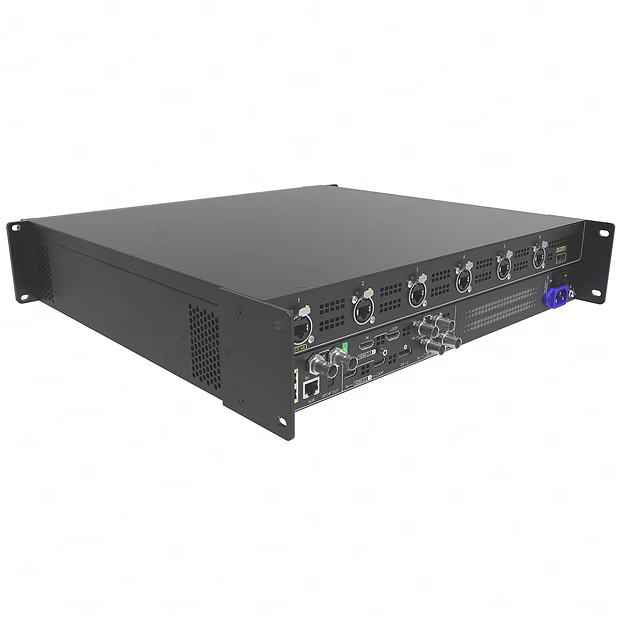

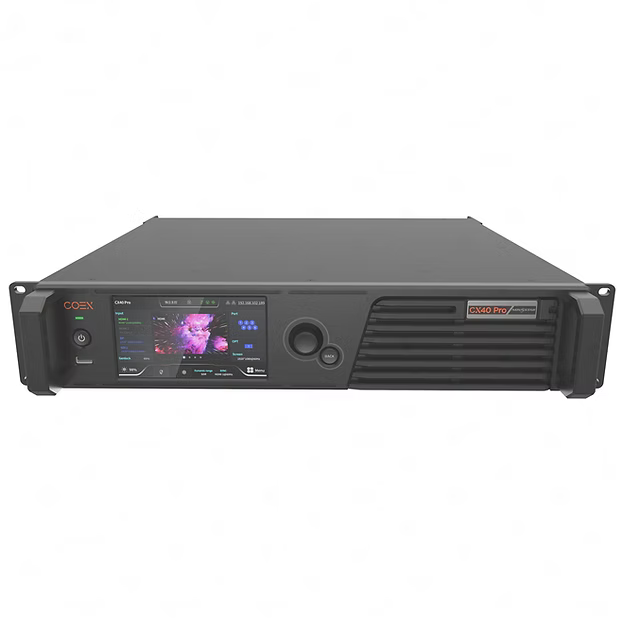

This flagship LED display controller provides high-bandwidth 5G transmission and ultra-high-definition 4K resolution support. It utilizes advanced image processing algorithms to deliver high frame rates and deep bit depths for superior visual fidelity. The hardware simplifies complex system wiring for large-scale LED installations and professional rental environments. Integrated with the COEX control system, it offers a streamlined web-based management interface for real-time monitoring. The unit supports HDR10 and HLG standards to ensure vibrant color reproduction and high dynamic range. Robust connectivity includes HDMI 2.0, DP 1.2, and 12G-SDI inputs for versatile source integration. It is specifically engineered to maintain low latency in critical broadcast and live event applications.
| Material | Aluminum Alloy (estimated: true) |
| Maximum Loading Capacity | 8.8 Million Pixels |
| Input Interface | 1x HDMI 2.0, 1x DP 1.2, 1x 12G-SDI |
| Output Interface | 4x 5G Ethernet Ports |
| Maximum Resolution | 4096 × 2160 @ 60Hz |
| Control Method | Ethernet, USB, Genlock |
| Rack Space | 1U |
| Operating Voltage | 100-240V AC |
