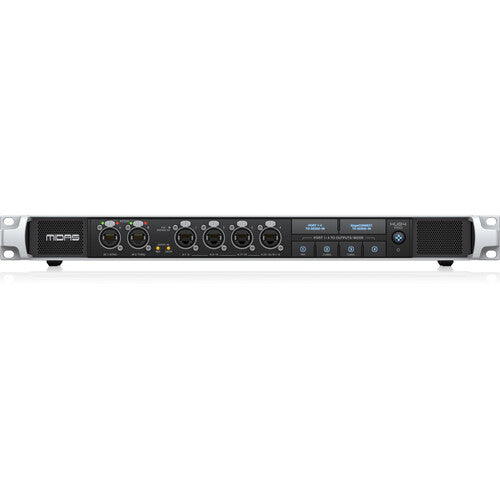

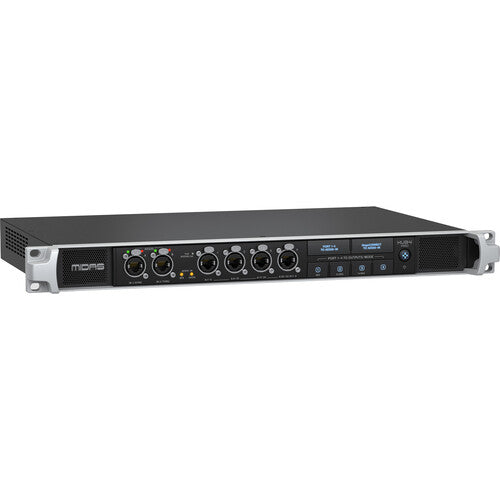

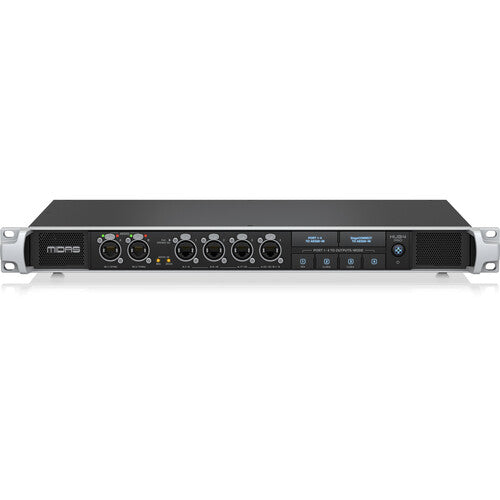

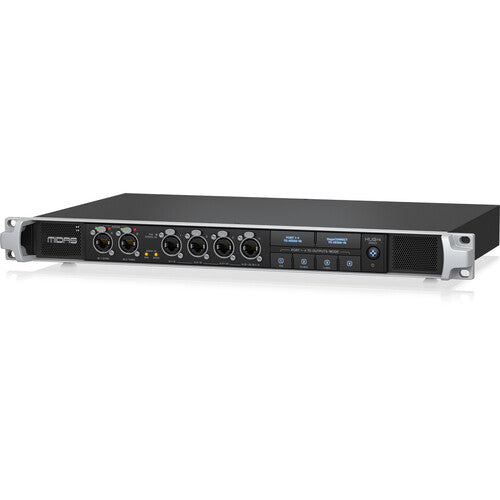

The Midas HUB4 PRO is a high-performance 96k monitor system hub designed for seamless integration within professional stage racks. It features four PoE-enabled ports specifically for DP48 personal monitor mixers, delivering both power and 48 channels of 24-bit audio over a single CAT5e cable. The unit includes 16 balanced analogue outputs, allowing for simplified routing of stereo mixes directly to IEM transmitters in side racks. With its StageConnect interface, users can expand I/O capacity by 32 channels of ultra-low latency audio using standard XLR cables. The integrated AES50 network ports support 48 bi-directional channels at 48 kHz or 96 kHz, ensuring compatibility with M32 and Heritage D consoles. Housed in a rugged 1U rackmount chassis, it provides a durable solution for both touring and fixed installation environments. This versatile hub streamlines monitoring setups by eliminating bulky analogue sub-snakes and reducing cable complexity on stage.
| Network Ports | 2 x AES50 (In/Thru) |
| Mixer Ports | 4 x PoE-Enabled for DP48 (IEEE802.3at) |
| Analogue Outputs | 16 x Balanced Line-Level |
| Digital Interface | StageConnect (32-channel I/O) |
| Sample Rate | 44.1/48 kHz or 88.2/96 kHz |
| Rack Size | 1U (Standard 19-inch) |
| Power Supply | Universal Switch-Mode (100-240V) |
| Connectivity | Shielded CAT5e/CAT6 |
