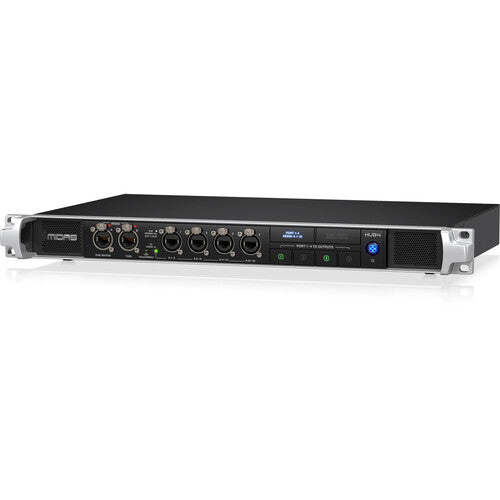

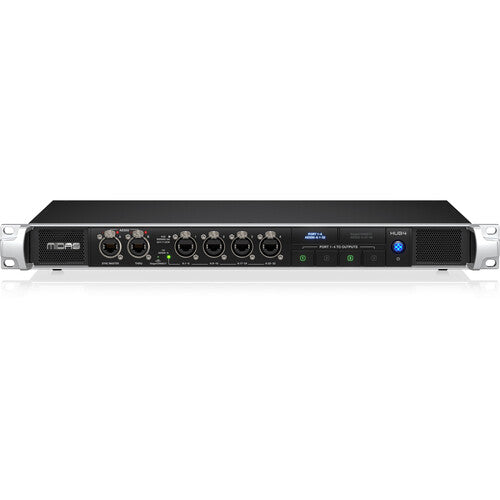

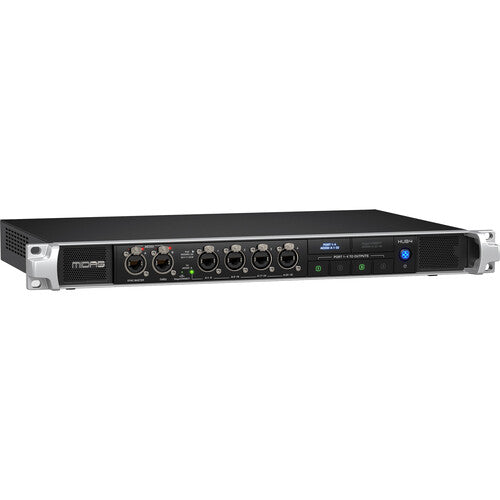

The Midas HUB4 represents a sophisticated solution for streamlined personal monitoring and stage distribution. This versatile hub provides four PoE ports designed to power and transmit 48 channels of bidirectional audio to DP48 personal mixers. Integrated StageConnect technology allows for high-density 32-channel audio transmission over standard XLR or DMX cabling with sub-millisecond latency. Professional-grade AES50 connectivity ensures seamless integration with M32 series consoles and DL8 stage boxes for comprehensive system control. Sixteen balanced analogue outputs facilitate direct connections to IEM transmitters, reducing complex cabling requirements in the rack. The unit supports cascading multiple hubs to accommodate large-scale orchestral or symphonic setups effortlessly. Rugged etherCON connectors and a road-ready chassis make this an essential component for demanding live production environments.
| AES50 Ports | 4 x RJ45 with PoE support |
| Analogue Outputs | 16 x 1/4" TRS balanced line-level |
| StageConnect I/O | 1 x XLR (32 channels, 24-bit @ 48 kHz) |
| PoE Compatibility | IEEE802.3at per port (up to 30W) |
| Sample Rates | 44.1 kHz, 48 kHz |
| Latency | Below 0.5 ms (StageConnect) |
| Connectivity | AES50 In and Through for cascading |
| Form Factor | 1U Rackmount |
| Chassis Material | Steel (estimated: true) |
