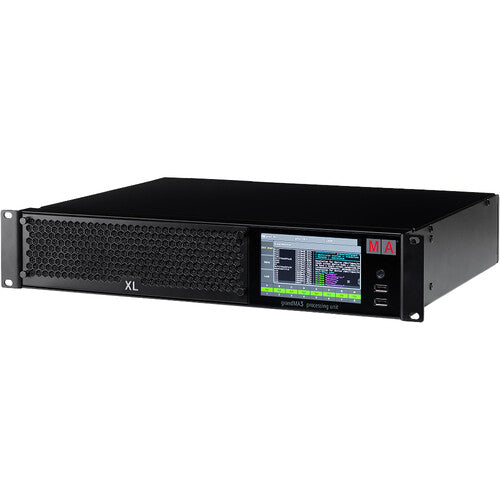

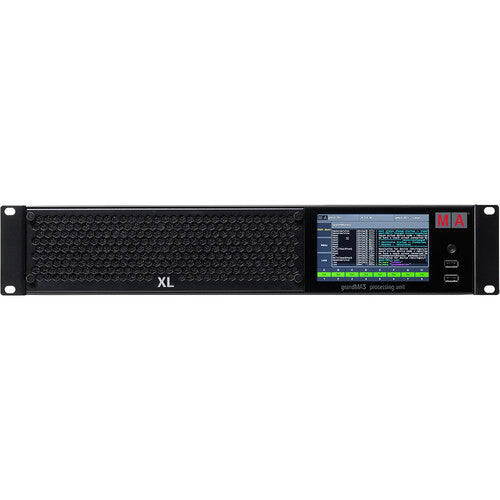

The grandMA3 processing unit XL provides a powerful parameter expansion solution for lighting control systems up to 250,000 parameters. It handles frame-synchronous calculation of 16,384 parameters within the native MA-Net3 environment. This unit also supports Mode2 to expand existing grandMA2 systems by 4,096 parameters. Designed for professional rack mounting, the compact 2RU chassis ensures efficient space utilization for touring and permanent installations. Each unit features eight frame-synchronous DMX outputs for reliable data distribution across the network. An integrated touchscreen offers a comprehensive system overview and immediate access to critical maintenance functions. This centralized processing architecture allows for seamless scaling of complex lighting environments.
| Parameters | 16,384 (HTP/LTP) |
| Mode2 Parameters | 4,096 (HTP/LTP) |
| Operating Voltage | 100-240V AC, 50/60Hz |
| Power Consumption | 200VA maximum |
| Dimensions | 19 x 15 x 4 in |
| Net Weight | 12 lbs |

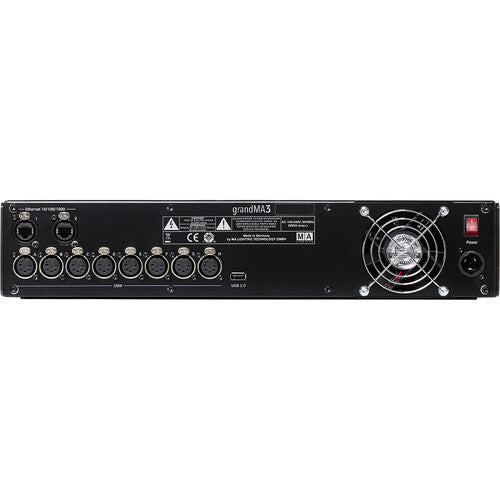

| DMX Connectors | 8 x DMX512-A Out (5-pin XLR female) |
| Network Connectors | 2 x etherCON/RJ45 |
| USB Ports | 3 x USB 2.0 (Type A) |
