This unit provides a seamless expansion of 8,192 parameters for complex lighting environments within the MA-Net3 ecosystem. It facilitates frame-synchronous parameter calculation to ensure precise timing across large-scale networked lighting systems. The compact 2RU rackmount design allows for efficient integration into professional touring and permanent installation racks. Integrated touchscreen controls offer an immediate system overview and simplified maintenance directly from the hardware. Eight frame-synchronous DMX outputs provide versatile connectivity for distributing data throughout the network. A dedicated Mode2 allows for the expansion of existing grandMA2 systems by 4,096 parameters for legacy support. This processing unit serves as a centralized powerhouse for high-demand lighting control and parameter management.
| Parameters | 8,192 (HTP/LTP) |
| Parameters Mode2 | 4,096 (HTP/LTP) |
| Operating Voltage | 100 - 240 V AC; 50/60 Hz |
| Power Consumption | 200 VA maximum |
| Operating Temperature | 32 °F to 104 °F |
| Dimensions (W x D x H) | 19.0 x 14.6 x 3.4 inches |
| Net Weight | 12.0 lbs |

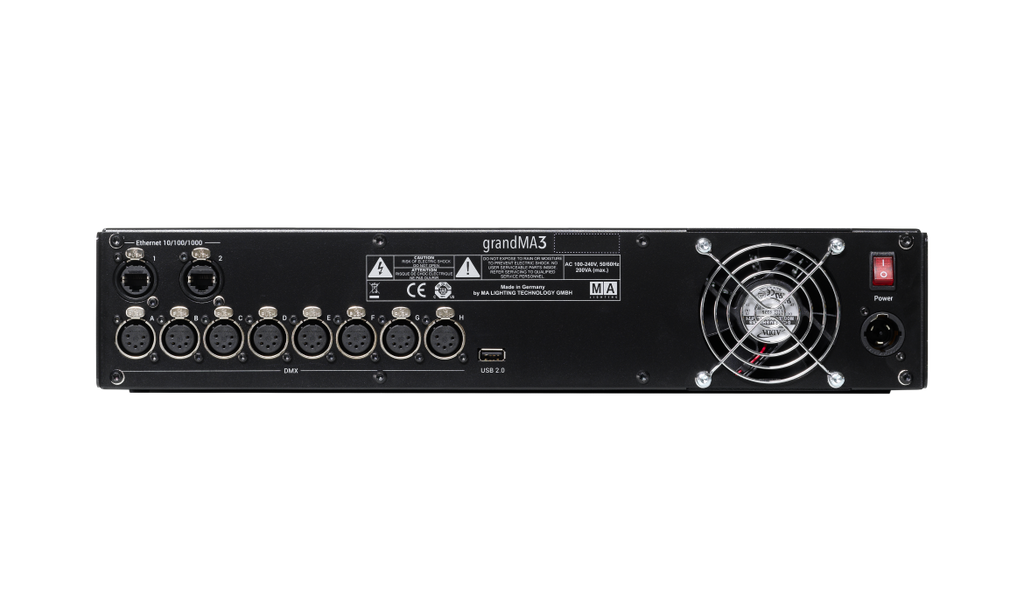

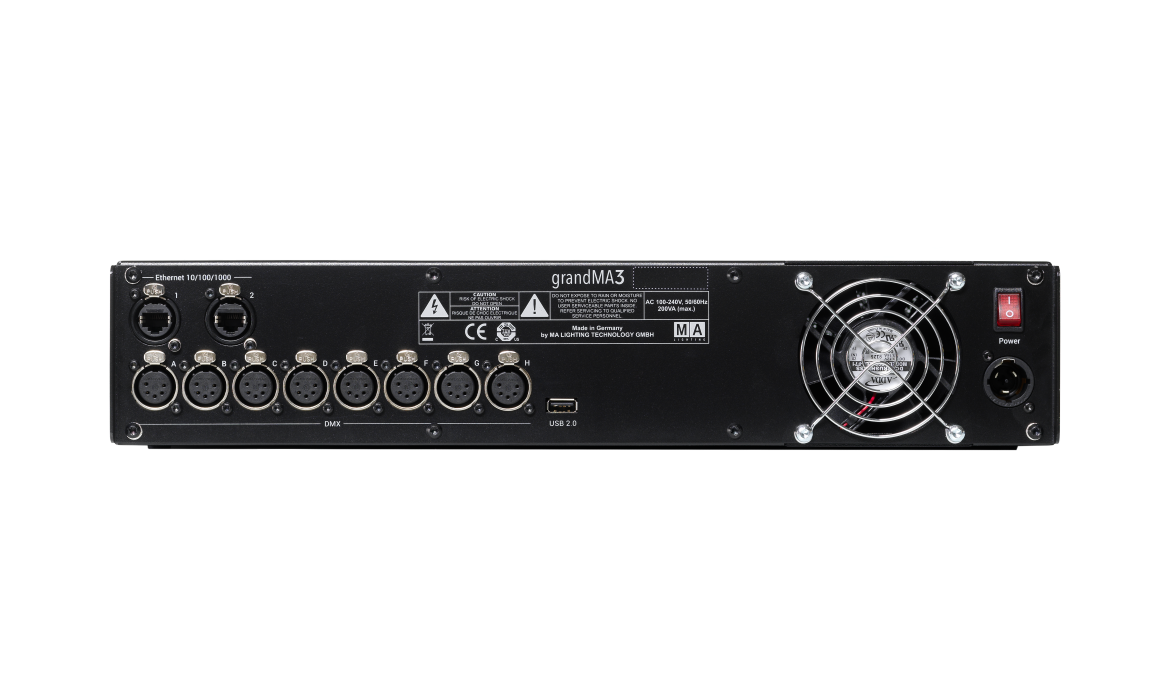

| DMX Connectors | 8 x DMX512-A Out (5-pin XLR female) |
| Network Connectors | 2 x etherCON/RJ45 |
| USB Connectors | 3 x USB 2.0 (Type A) |
