This professional DMX distribution node provides eight synchronous universes for grandMA3 onPC systems. The 19-inch rackmount housing features a high-performance processor and high-speed 1 Gb/s Ethernet connectivity. Integrated Power over Ethernet simplifies cabling by eliminating the need for local power sources. A vibrant 3.9-inch color display allows for immediate status monitoring and local configuration. The unit is fully RDM compliant and supports MA-Net3, sACN, and Art-Net protocols. Eight 5-pin XLR outputs ensure reliable signal distribution for large-scale theatrical and touring applications. This interface unlocks 4,096 parameters to provide full console functionality on PC-based systems.
| Parameters | 4,096 (HTP/LTP) |
| Housing | 19-inch 1RU Rackmount |

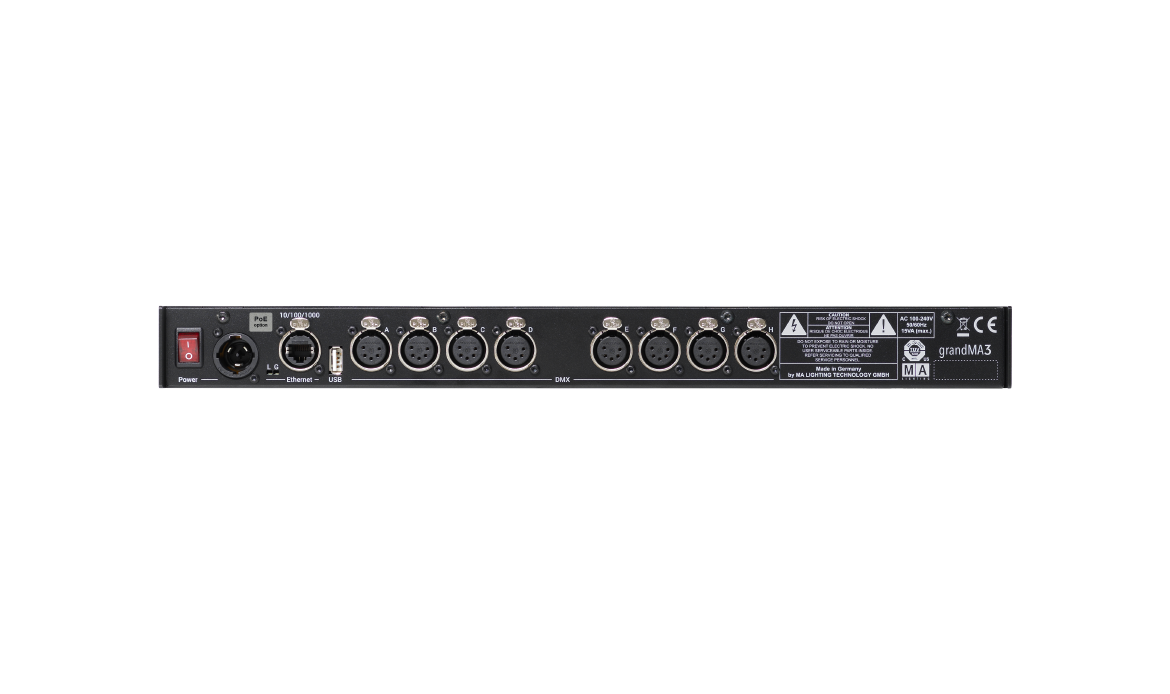

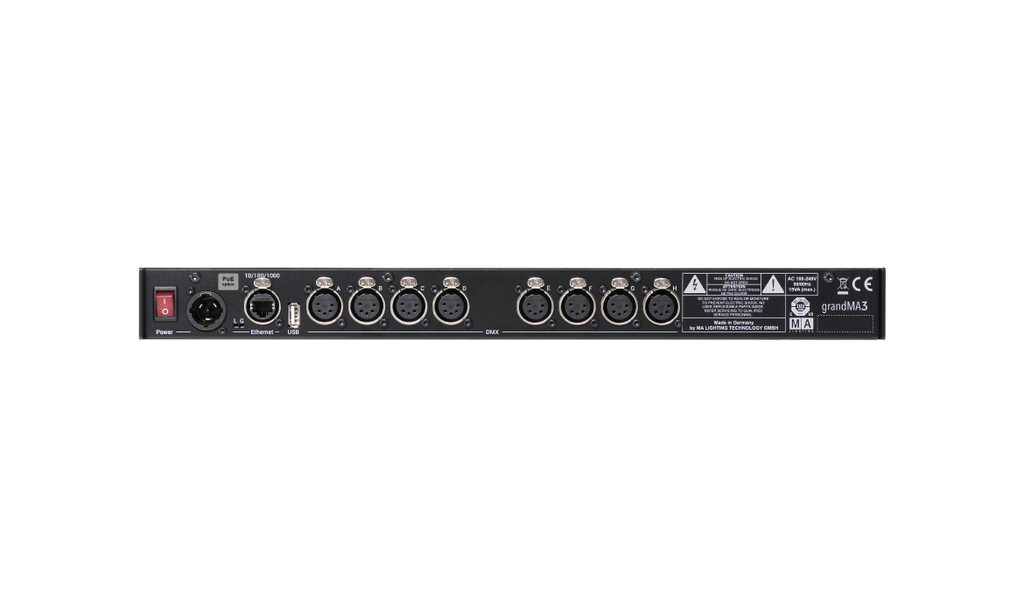

| DMX Ports | 8 x DMX512-A Out (5-pin XLR female) |
| Ethernet Connection | 1 x etherCON/RJ45 (1 Gb/s) |
| Operating Voltage | AC 100-240V; 50/60 Hz or PoE (IEEE 802.3af) |

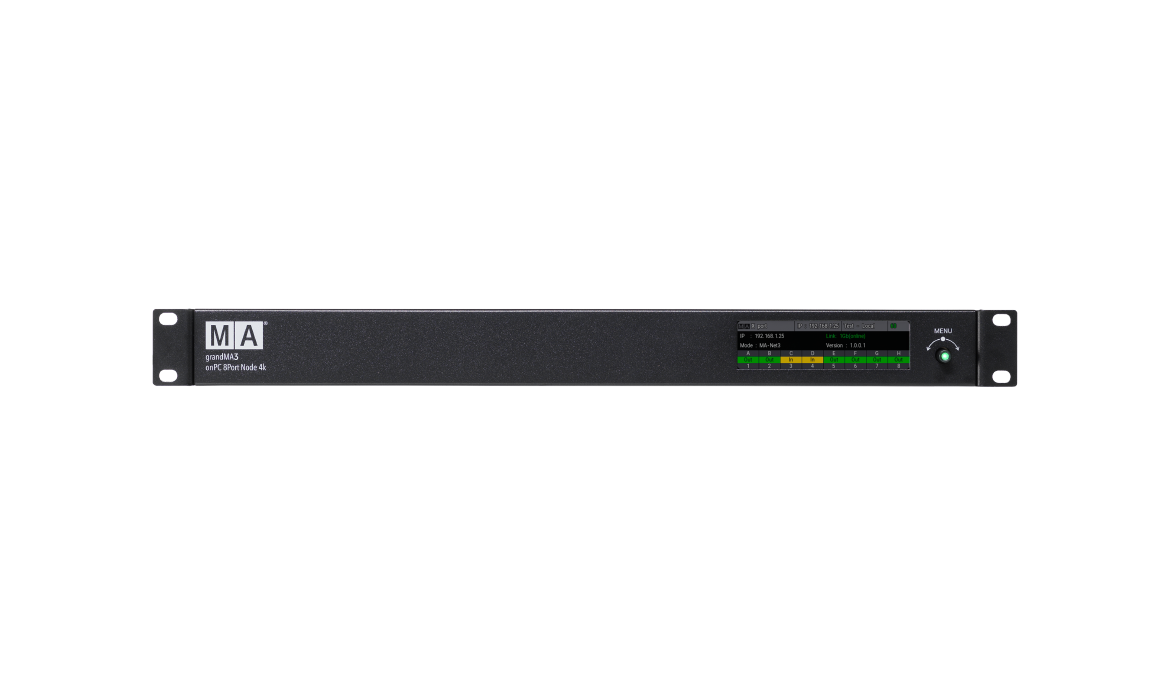

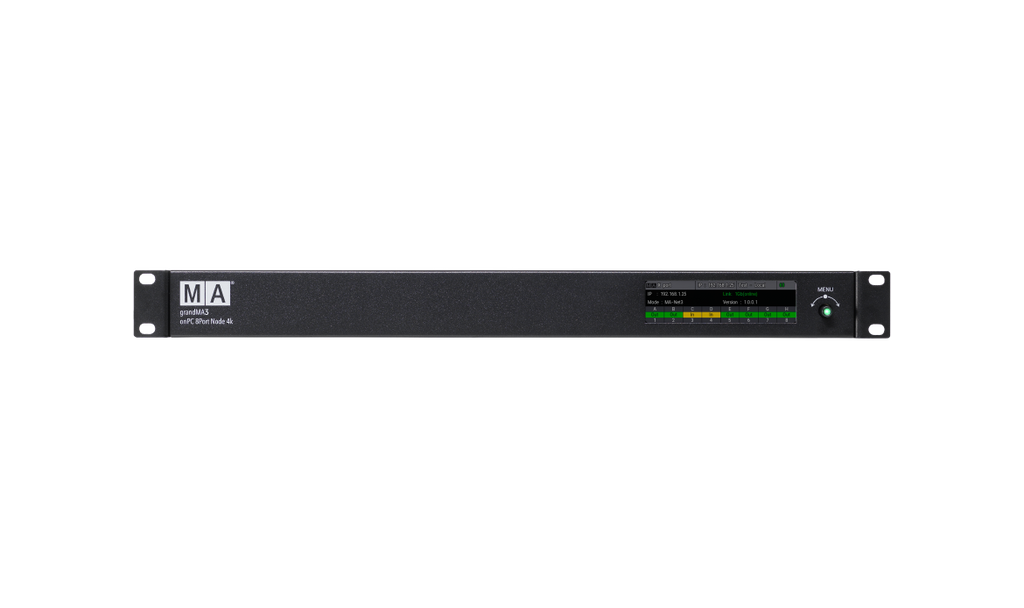

| Display | 3.9-inch Color Display |
| Supported Protocols | MA-Net3, MA-Net2, sACN, Art-Net |
| Compliance | Fully RDM Compliant |
| USB Connectivity | 1 x USB 2.0 (Type A) |
| Operating Temperature | 32 °F to 104 °F |
