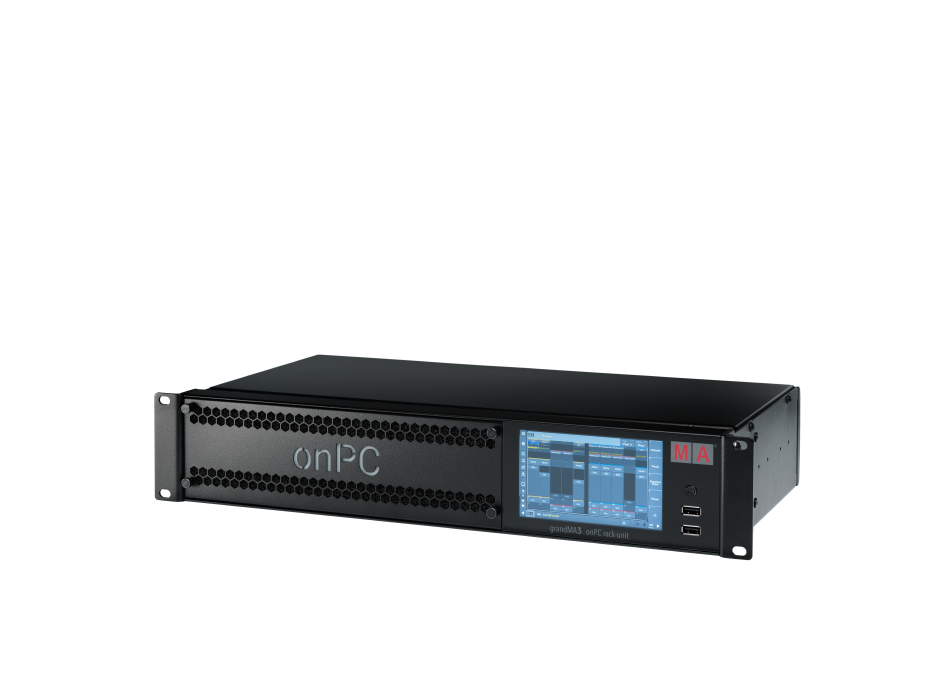

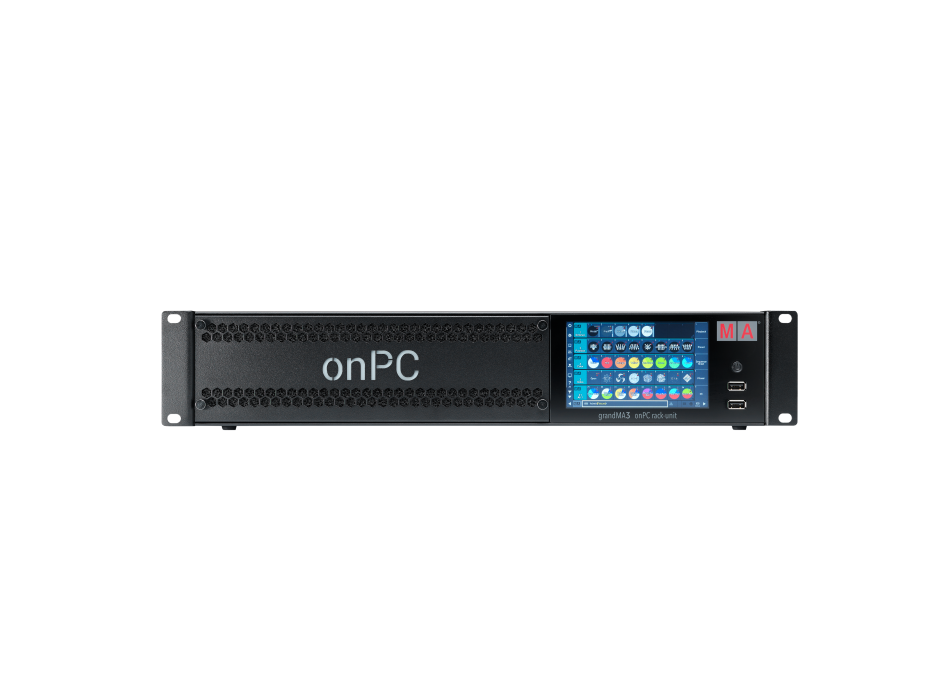

This 19-inch rack-unit provides a robust hardware solution for fixed installations in theaters, studios, and houses of worship. It features the grandMA3 onPC software pre-installed on a high-performance computer running Windows IoT for maximum reliability. The unit supports real-time control of 4,096 parameters, making it an ideal standalone controller or a dependable backup for larger systems. Integrated interfaces include DMX, MIDI, Timecode, and DC remote connections for seamless environment integration. Users can connect up to two external multi-touch monitors and a command wing to expand tactile control. Its compact 2U design ensures efficient space management within standard equipment racks. This professional playback device is engineered for automated show triggering via agenda events or external signals.
| Parameters | 4,096 (HTP/LTP) |
| Operating Voltage | 100 - 240 V AC; 50/60 Hz |
| Power Consumption | 100 VA maximum |
| Rack Size | 19 inch / 2U |
| Dimensions | 19 x 10 x 4 inches |
| Net Weight | 8.82 lbs |

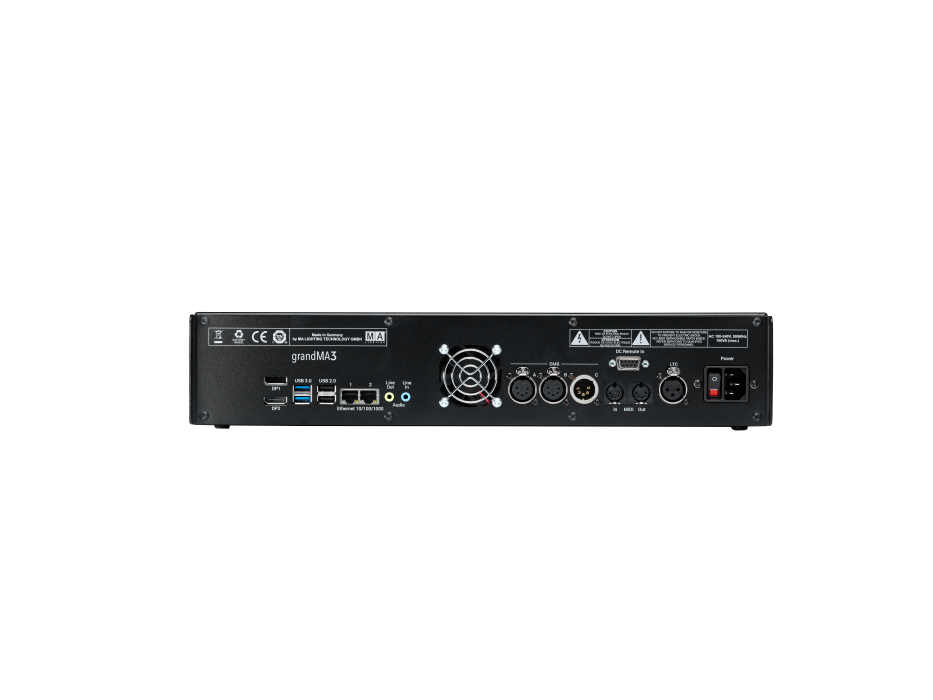

| DMX Connections | 2x Out (5-pin XLR), 1x In (5-pin XLR) |
| Video Output | 2x DisplayPort 1.2 for external screens |
| USB Ports | 4x USB 2.0, 2x USB 3.0 (Type A) |
| Internal Screen | 1x internal multi-touch command screen |
