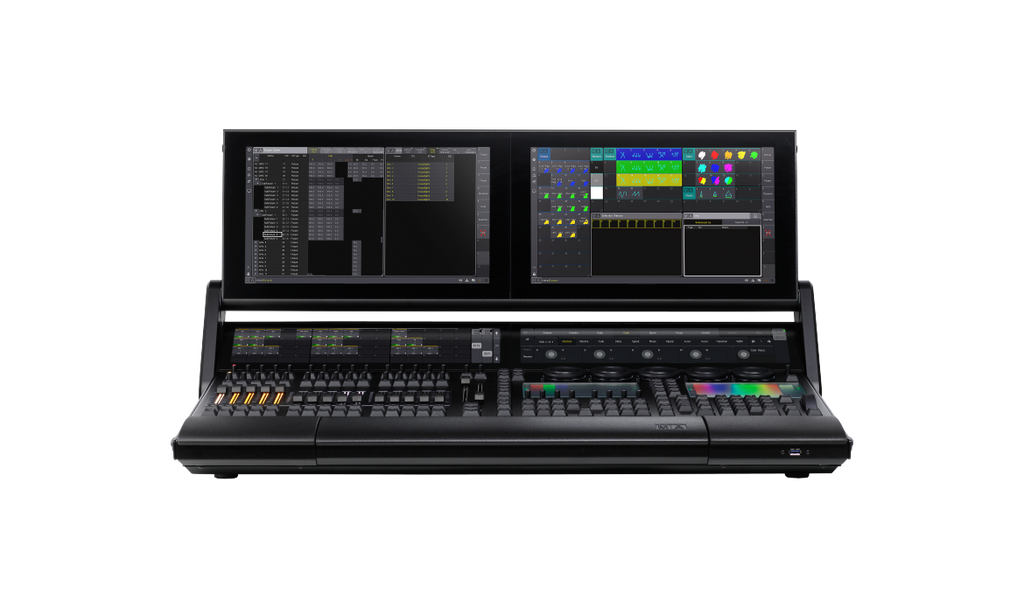

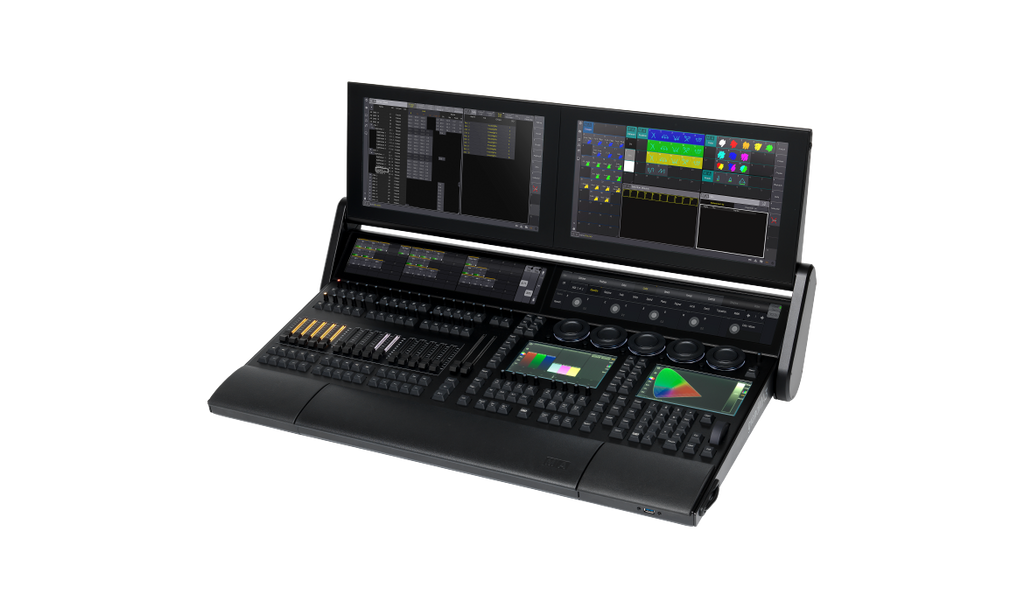

The grandMA3 light console serves as the definitive workhorse for professional entertainment lighting applications. It provides 16,384 control parameters natively, ensuring compatibility with the most complex production requirements. The hardware features 60 physical playbacks and 15 motorized faders equipped with RGB light pipes for immediate visual feedback. Two foldable multi-touch monitors and additional letterbox screens offer an expansive, customizable interface for fast programming. Dual encoders deliver intuitive control over secondary functions, significantly accelerating the workflow for lighting designers. Built for reliability, it includes an integrated uninterruptible power supply to maintain operation during power fluctuations. This console supports both grandMA2 and grandMA3 software modes for maximum versatility across existing show files.
| Control Parameters | 16,384 (HTP/LTP) |
| DMX Connections | 6x DMX512-A Out, 1x DMX512-A In |
| Internal Screens | 2x Foldable Multi-Touch Monitors |
| Motorized Faders | 15x Backlit 60mm Faders |
| Physical Playbacks | 60 Separate Playbacks |

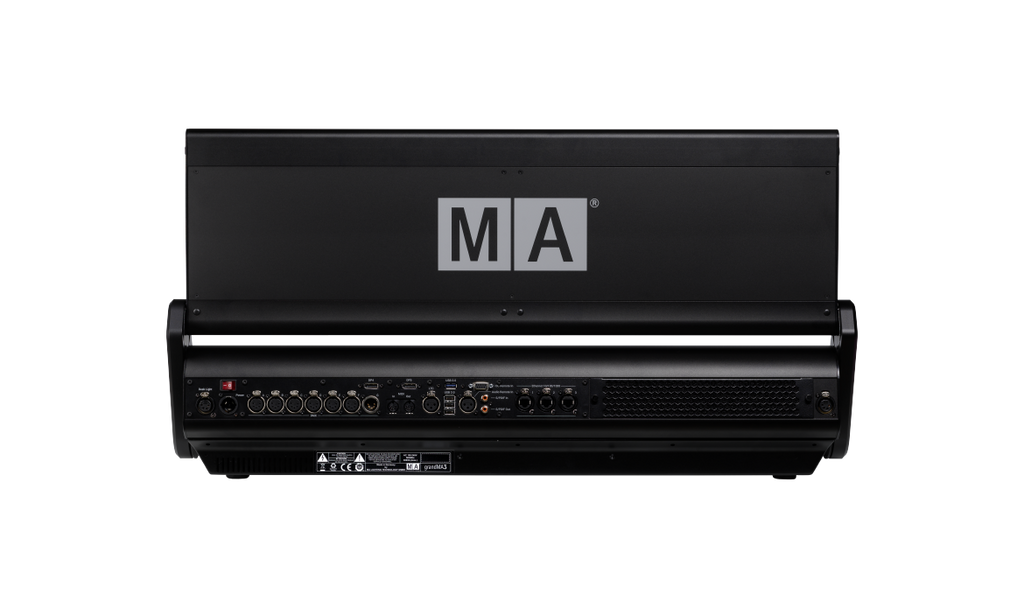

| Network Ports | 3x etherCON RJ45 |
| Power Supply | Integrated Uninterruptible Power Supply (UPS) |
| Operating Voltage | 100-240V, 50/60Hz |
