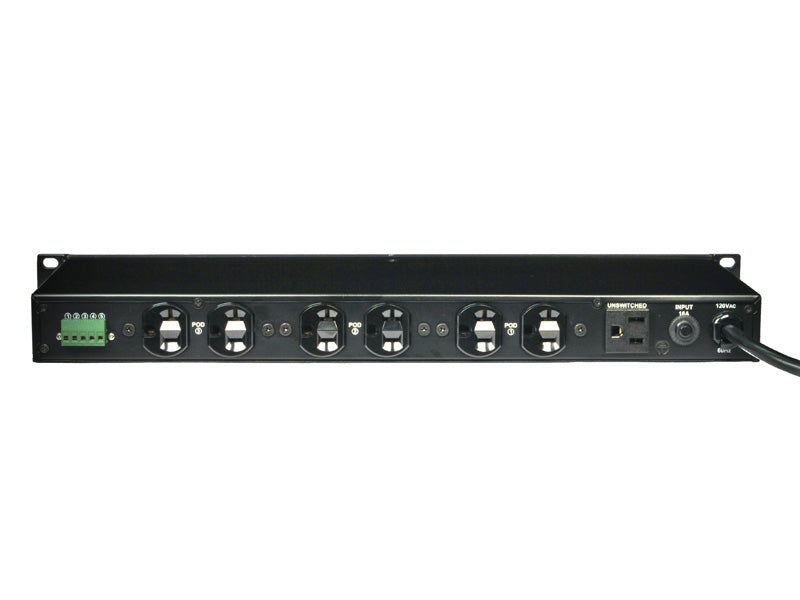

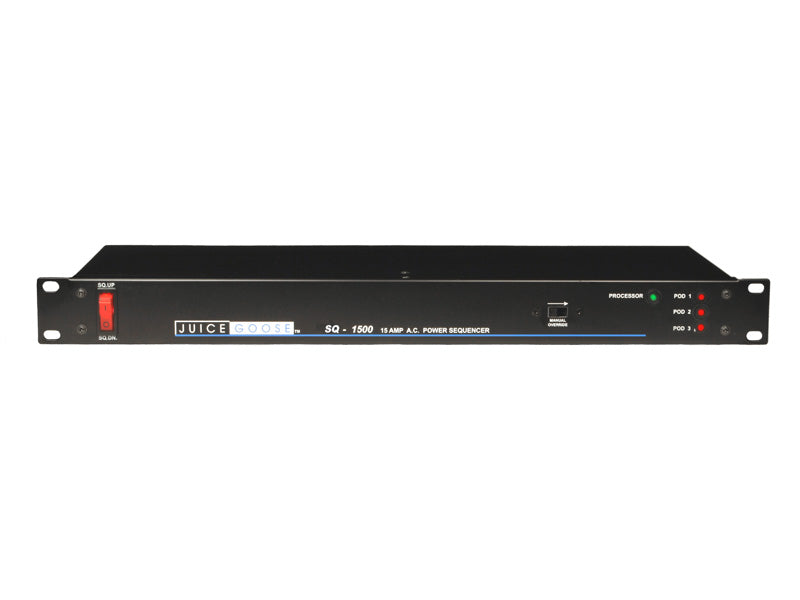

The SQ-1500 provides a professional-grade power sequencing solution for single rack audio and video installations. This unit features a robust 15-amp capacity and manages seven AC power outputs on the rear chassis. One outlet remains unswitched for constant power, while the remaining six are organized into three distinct sequence pods. Integrated surge and spike protection safeguard sensitive electronics from voltage transients and electrical interference. High-performance line noise filtration ensures clean power delivery for optimal equipment performance. Installation is streamlined via latching contact closures for efficient local or remote activation. Front-panel LED indicators provide real-time monitoring of processor health and relay status for reliable operation.
| Current Capacity | 15 Amps |
| Total AC Outlets | 7 (6 Switched, 1 Unswitched) |
| Sequence Steps | 3 Power Pods |
| Rack Height | 1U |
| Protection Type | Surge and Spike Protection |
| Filtration | Line Noise Filtration |
| Activation Method | Latching Contact Closure |
| Monitoring | LED Status Indicators |
| Chassis Material | Steel |
