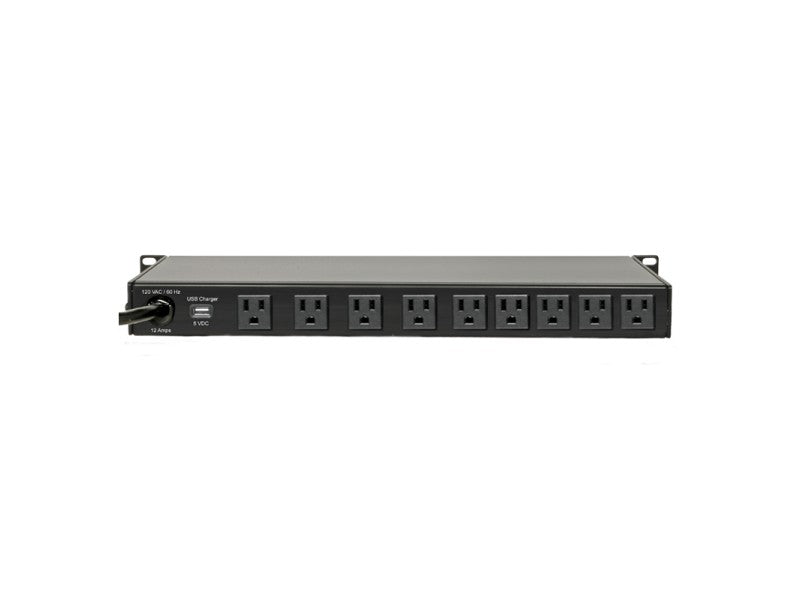

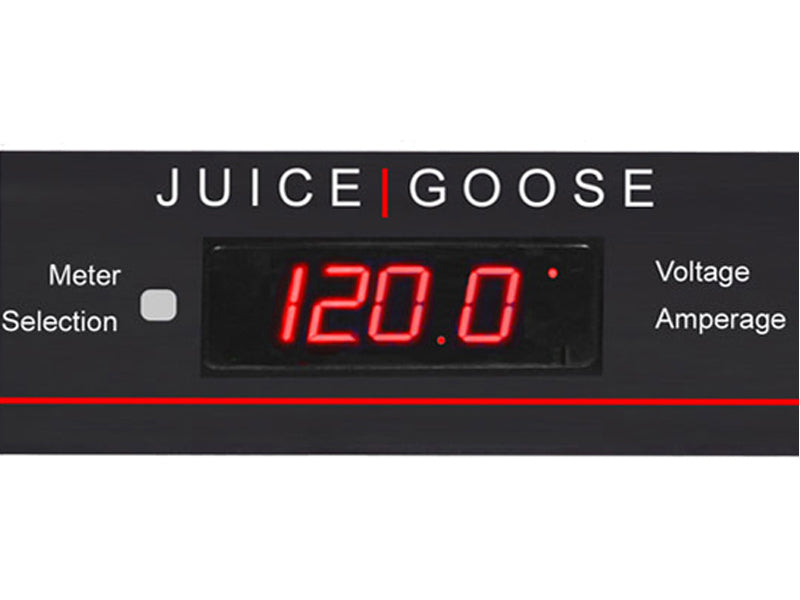

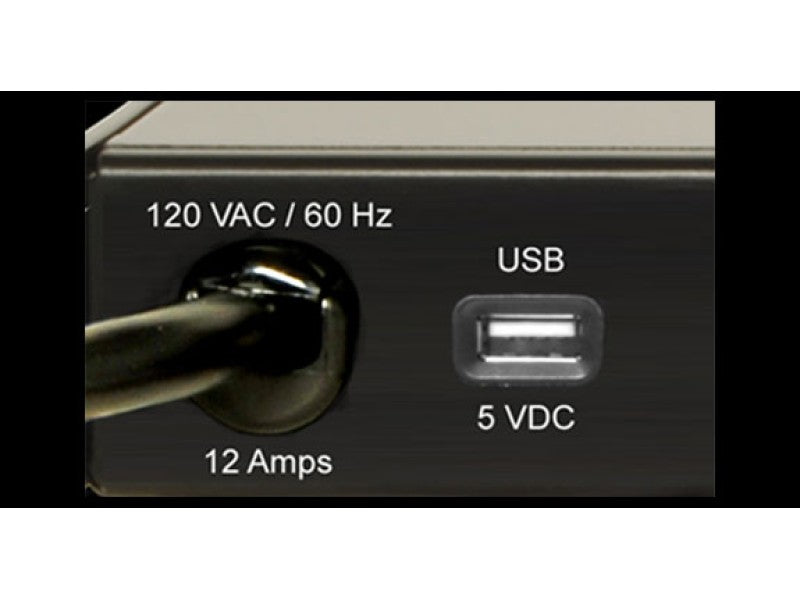

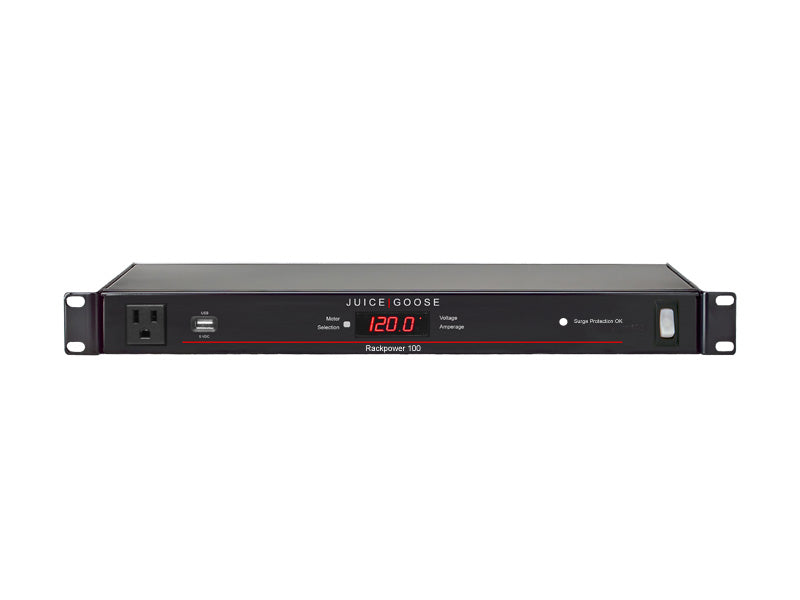

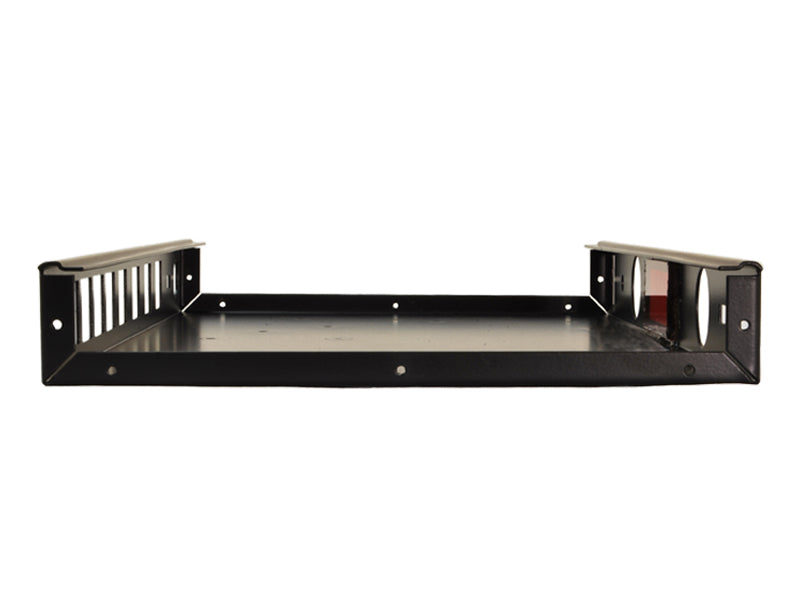

The RP 100-15RX is a premium power distribution unit engineered for musicians and audio professionals requiring superior line protection. Utilizing RX Series hybrid circuitry, it limits AC line surges to under 10 volts between line and neutral and significantly reduces ground line noise. A precision digital LED meter provides real-time monitoring, allowing users to toggle between voltage and amperage readings instantly. The unit features ten total AC outlets, including a front-panel receptacle and nine rear outlets rotated to accommodate bulky power adapters. Integrated USB ports on the front and back provide convenient 5V DC power for rack lighting or charging mobile devices. Built into a 7-inch deep Tour Class cold-rolled steel chassis, this unit offers exceptional durability for mobile or permanent installations. High-frequency filtration effectively minimizes EMI and RFI interference to maintain signal integrity in sensitive audio environments.
| Amperage | 15 Amps |
| Total Outlets | 10 (1 Front, 9 Rear) |
| Surge Protection | RX Series Hybrid Circuitry |
| Chassis Material | Cold Rolled Steel |
| Metering Type | Digital LED (Voltage and Amperage) |
| USB Ports | 2 x 5V DC (Front and Rear) |
| Power Cord | 7.0 ft, 14 Gauge |
| Input Plug | NEMA 5-15P |
| Rack Height | 1U |
| Chassis Depth | 7.0 inches |
