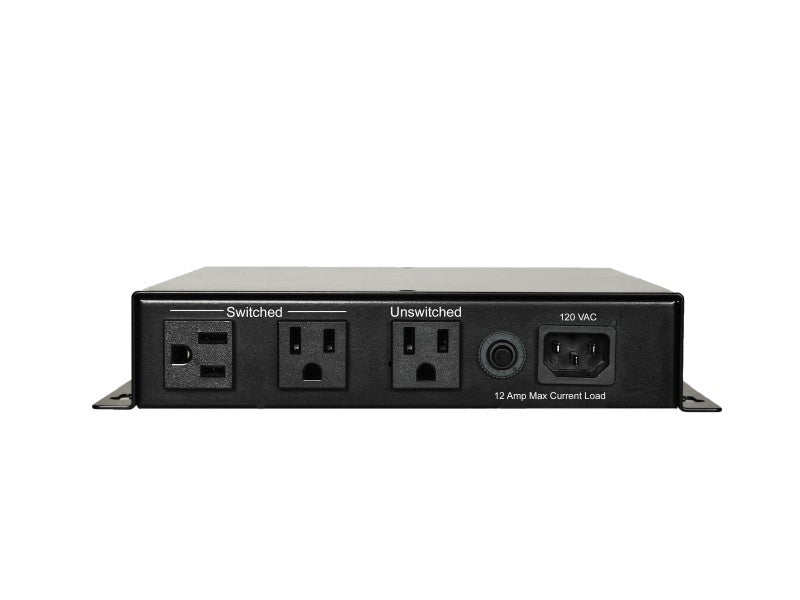

This compact power distribution module simplifies remote AC control for non-racked AV equipment like powered speakers and projectors. It features two switched NEMA 5-15R outlets that activate in a single sequence event, alongside one unswitched outlet for continuous power. The rugged metal enclosure includes two RJ45 ports for seamless daisy-chaining with other CQ Series devices. Integration is straightforward via plug-and-play connectivity into any standard fifteen amp AC receptacle. System control is achievable through wall-mounted key switches or latching contact closures for flexible installation. A built-in circuit breaker ensures reliable protection for connected electronics in commercial environments. This unit eliminates the need for bulky rack equipment in distributed AV networks.
| Material | Rugged Metal Enclosure |
| Current Rating | 15 Amps |
| Voltage | 120 VAC |
| Outlet Configuration | 3 Total (2 Switched, 1 Unswitched) |
| Receptacle Type | NEMA 5-15R |
| Control Connectors | 2 x RJ45 Ports |
| Sequence Events | Single Sequence Event |
| Power Cord | Detachable Cord Set |
| Protection | Integrated Circuit Breaker |
