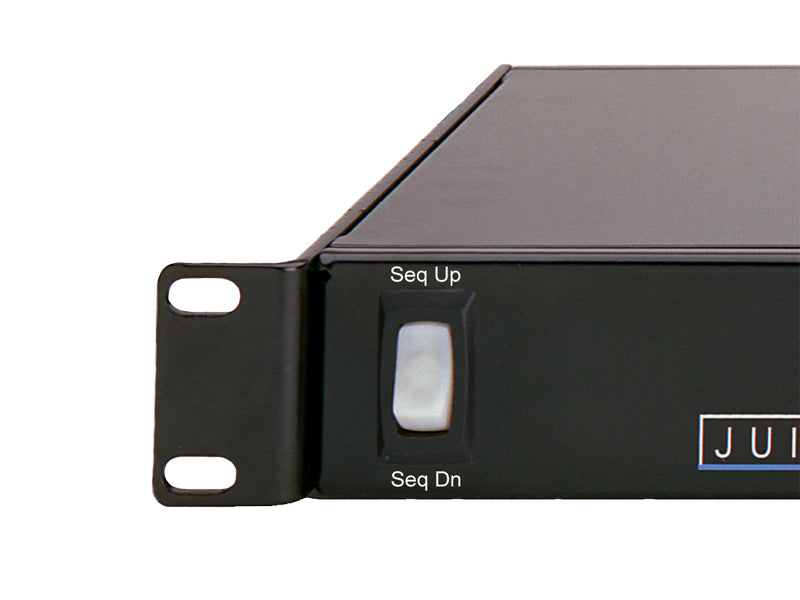

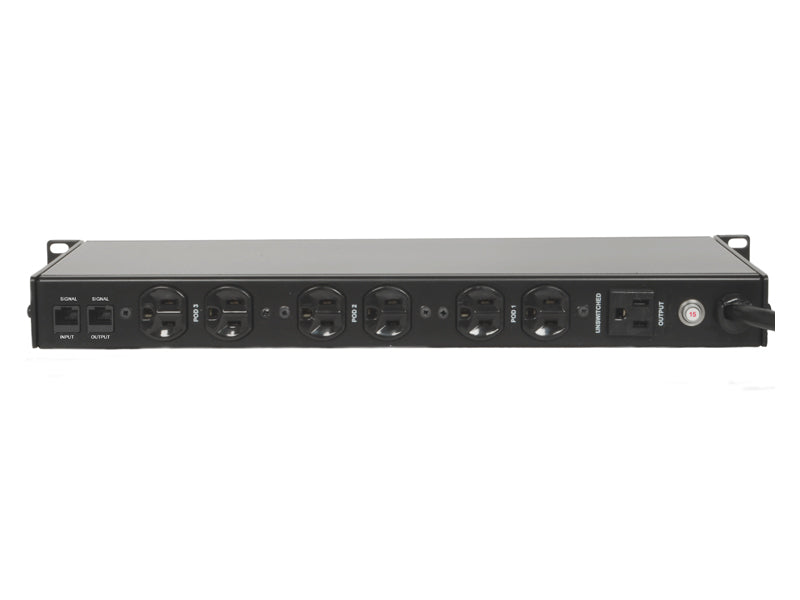

This single-space rack mount device provides reliable AC power sequencing combined with high-performance RX Series surge protection. It features seven AC power outputs on the rear chassis with a combined rating of 15 amps. Six of the outputs are grouped into three power pods for individual sequence events, while one remains unswitched. The advanced RX technology protects against normal and common mode surge events up to 6,000 volts. Integrated diagnostic LEDs allow for real-time monitoring of sequencing functions and protection status directly from the front panel. Users can adjust sequence timing between two and thirty seconds via internal DIP switches to suit specific system requirements. This self-contained circuit facilitates seamless master or slave coordination using standard RJ-45 cabling.
| Amperage | 15 Amps |
| Form Factor | 1U Rack Mount |
| Total AC Outputs | 7 |
| Sequencing Steps | 3 Power Pods |

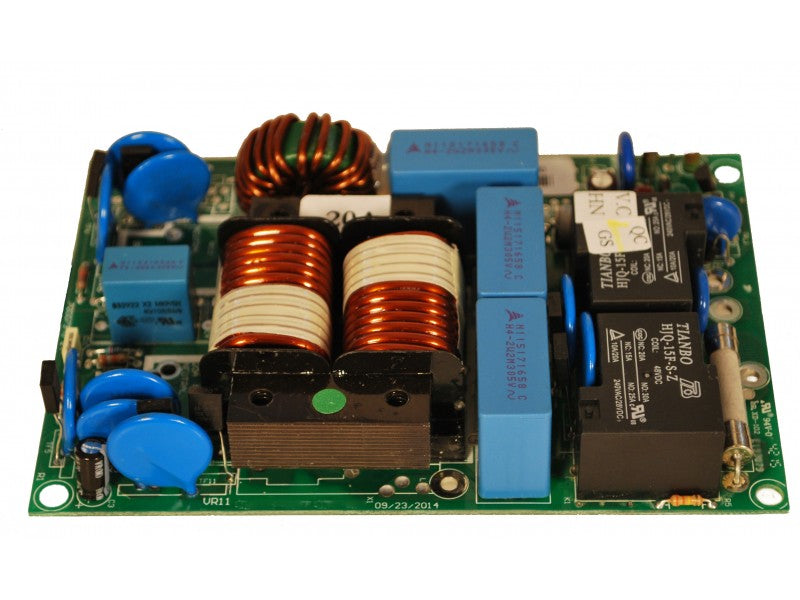

| Surge Protection Type | RX Series (Normal and Common Mode) |
| Maximum Surge Voltage | 6,000 Volts |
| Maximum Surge Current | 3,000 Amps |
| Adjustable Delay Timing | 2, 10, 20, or 30 Seconds |
| Control Connection | RJ-45 Signal Input/Output |
| Ground Line Surge Limit | 0.50 Volts |
