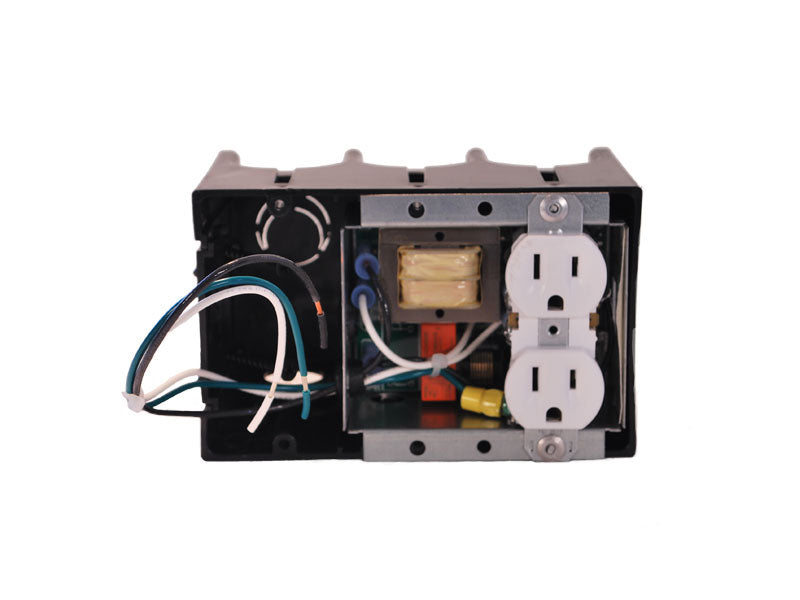

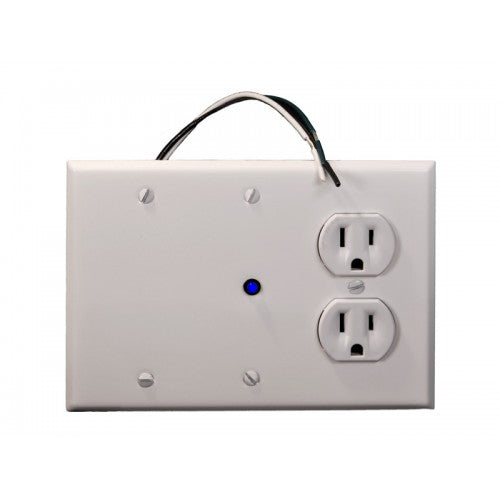

This in-wall power distribution module provides seamless sequencing for audio systems and powered speakers. It integrates directly into standard three-gang enclosures for a clean, professional installation. The unit features a fifteen-amp duplex receptacle that activates with a single sequence event. Integrated RJ-45 input and output ports allow for effortless daisy-chaining with other CQ Series devices. It effectively eliminates the need for bulky rack equipment in distributed AV environments. Metal faceplates ensure durability while maintaining an aesthetic appearance in diverse settings. This module is an ideal solution for both new builds and retrofit audio installations.
| Amperage | 15 Amps |
| Receptacle Type | NEMA 5-15R Duplex |
| Mounting Requirement | Standard Three Gang Wall Box |

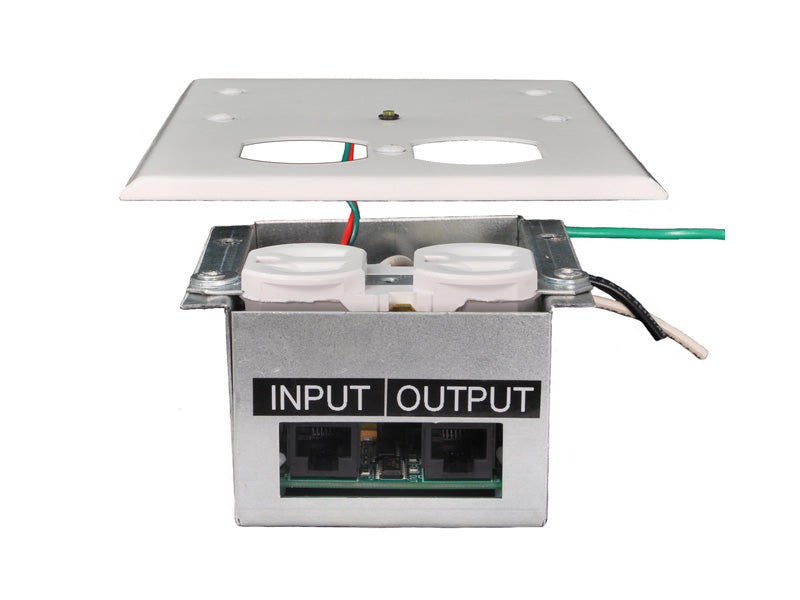

| Signal Connectors | RJ-45 Input and Output |
| Input Voltage | 120 VAC |
| Faceplate Material | Metal |
| Sequence Channels | 1 |
