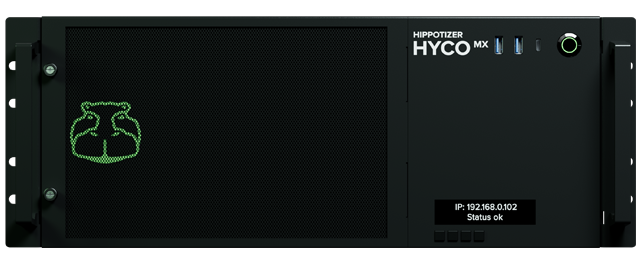

The HYCO MX stands as the flagship media server designed for the most demanding production workflows. It features four modular production outputs supporting HDMI 2.0, DisplayPort 1.4, or 12G SDI configurations. With a massive 111,552 Notchmarks rating, it delivers unrivaled generative performance for large-scale event production. The internal hardware is powered by a 16-core CPU and 128GB of high-speed DDR5 memory. Integrated 100Gb/s networking and a 16TB PCIe5 media drive ensure seamless handling of uncompressed video content. Professional features like Genlock and software EDID emulation provide total control over system configuration. This 4U rackmount powerhouse is built for mission-critical reliability in live entertainment environments.
| Form Factor | 4U Rackmount |
| Processor | 16 Core (32 Threads) 4.5 GHz |
| Memory | 128GB DDR5-5200 |
| Media Storage | 16TB PCIe5 SSD (14,000 MB/s) |

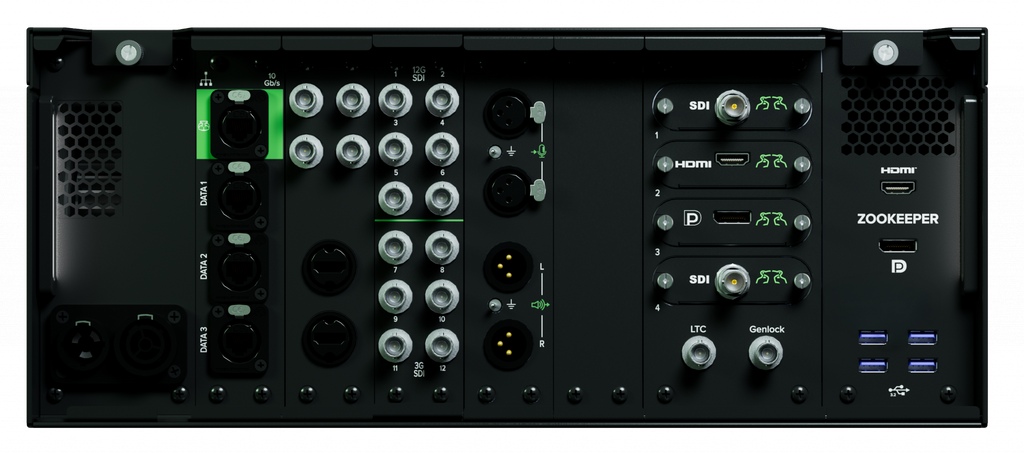

| Production Outputs | 4 (Modular HDMI 2.0, DP 1.4, or 12G SDI) |
| Network Connectivity | 2x 10Gb, 2x 100Gb/s |
| Audio I/O | Balanced Stereo XLR Input/Output |
| Operating Voltage | 100-250V 50/60Hz |
| Max Power Consumption | 2000W |
| Heat Dissipation | 5000 btu/hr |
