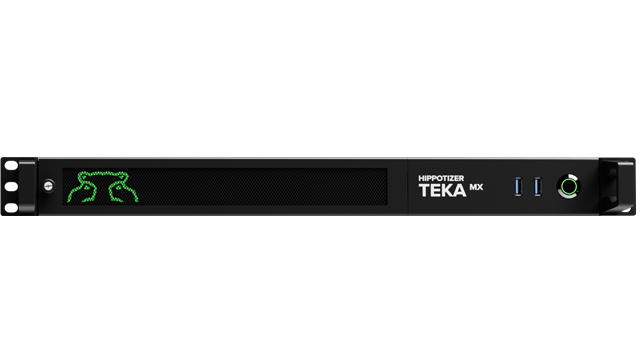

This high-performance video playback hardware delivers a single 4K output for demanding installations and live productions. Engineered with a 2TB internal media drive, it ensures seamless playback of high-bitrate 10-bit NotchLC clips. The compact 1U rackmount chassis features 16GB of high-speed DDR5-5200 memory and a powerful six-core processor. Users can customize the system with optional capture cards and network upgrades to meet specific project requirements. Integrated HippoNet and PixelMapper tools provide extensive control over complex lighting and video arrays. This server facilitates complete production management through a dedicated REST API and Show Manager interface. Its robust design supports reliable operation in temperatures ranging from 32°F to 95°F.
| Rack Units | 1U |
| Storage Capacity | 2TB Media Drive (6,000 MB/s), 500GB OS SSD |
| Memory | 16GB DDR5-5200 |
| Processor | 6-Core (12 Threads) @ 4.3GHz Base Clock |
| Video Outputs | 1 x DisplayPort 1.4 (Production), 1 x DisplayPort 1.4 (Control) |
| Network Connectivity | 2 x 1Gb Ethernet Ports |
| Power Supply | 100-250V 50/60Hz, 600W Max Consumption |
| Audio I/O | Stereo 1/8" TRS Input and Output |
| Operating Temperature | 32°F to 95°F |
| USB Connectivity | 6 x USB 3.2 Type-A (4 Rear, 2 Front) |
