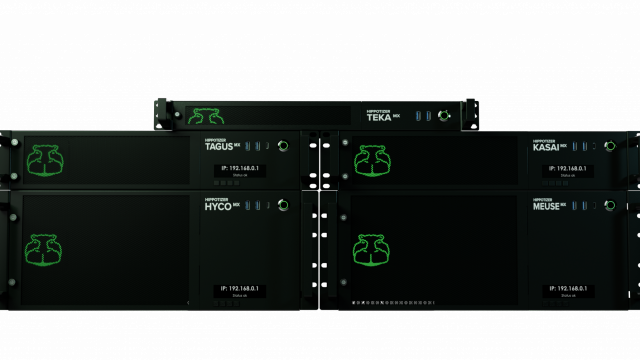

The Kasai MX provides unparalleled power and flexibility within a custom tour-ready 2U rackmount chassis. It features two swappable output modules supporting HDMI 2.0, DisplayPort 1.4, and 12G SDI configurations. With an internal 4TB media drive reaching speeds of 6,500 MB/s, content playback remains fluid and responsive. The system manages up to twenty-four concurrent 4K layers for complex generative visual events. Integrated Genlock and software EDID emulation ensure perfectly synchronized displays across professional installations. This high-performance hardware includes a removable media slot for PCIe5 expansion up to 32TB. Connectivity is robust with dual 10Gb network ports and balanced stereo XLR audio outputs.
| Form Factor | 2U Rackmount |
| Media Storage | 4TB PCIe SSD (6,500 MB/s) |
| Memory | 32GB DDR5-5200 |
| Performance | 24 Concurrent 4K Layers |
| CPU | 8-Core 3.8GHz (16 Threads) |
| Outputs | 2x Swappable Modular Outputs |
| Networking | 2x 10Gb and 2x 1Gb Ports |
| Dimensions | 23.82 x 16.73 x 3.5 inches |
| Weight | 35.27 lbs |
| Voltage | 100-250V 50/60Hz |
