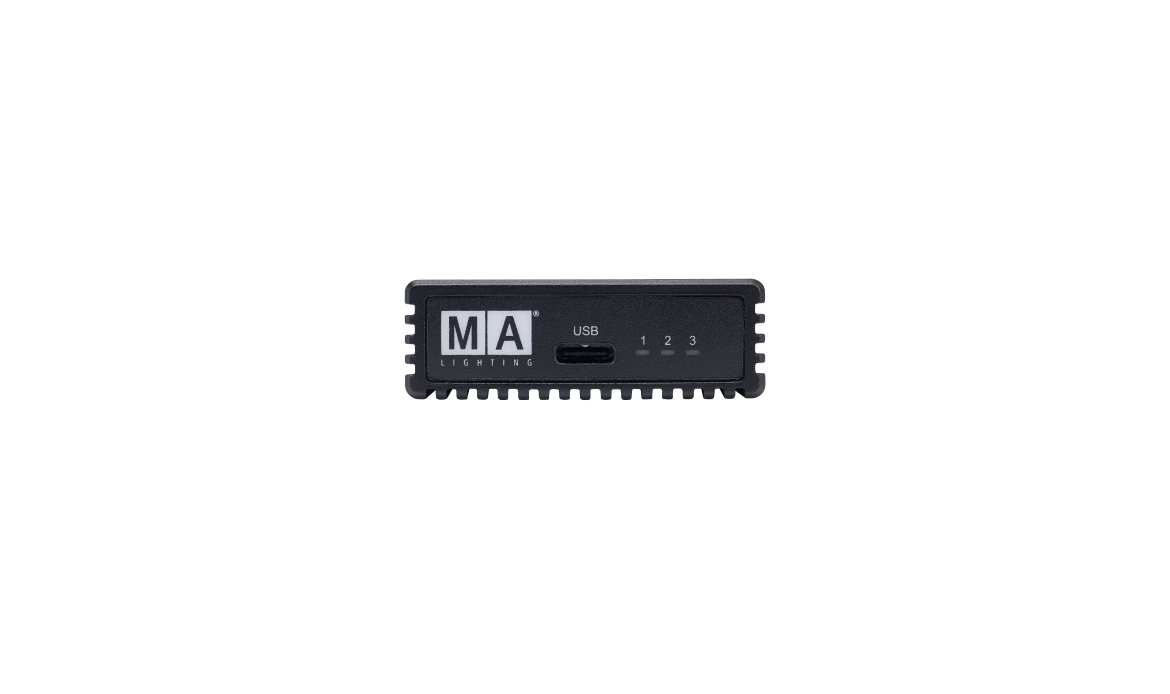

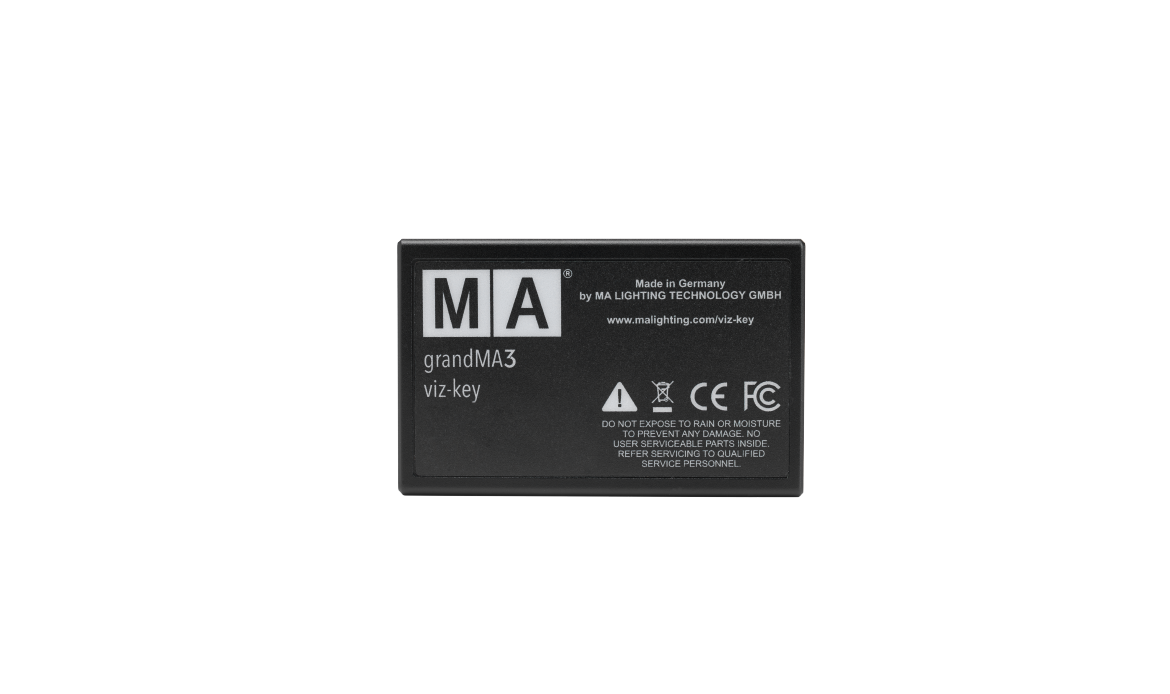

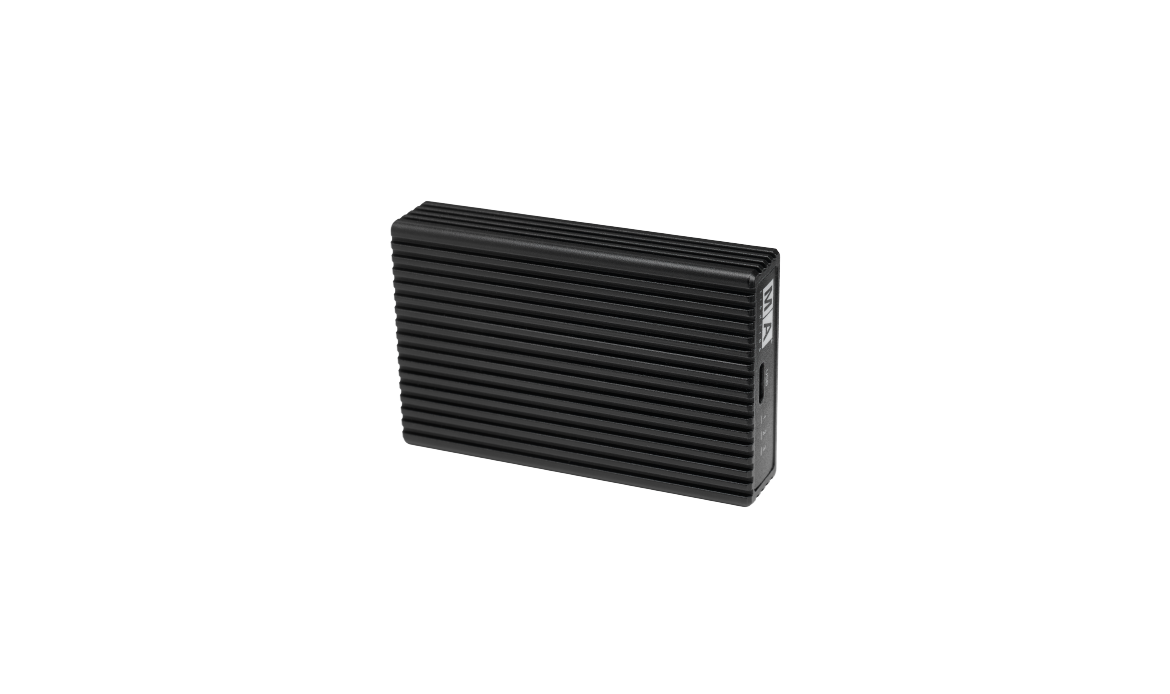

This unique hardware solution ensures stable connectivity between third-party visualization tools and grandMA3 lighting control systems. The device is recognized as an MA-Net3 device within the network for direct session integration. It features 512 onboard parameters that can be output via DMX over Ethernet for real-world fixture testing. Users benefit from a single-dongle solution compatible with major visualizers like Capture, WYSIWYG, and Vectorworks. A brief internet connection to the MA Worldserver is required every ten days for parameter activation. The compact design facilitates easy transport between studios and live performance venues. This interface streamlines the workflow for designers moving between digital pre-visualization and physical production.
| Parameters | 512 |
| Protocol Support | MA-Net3, DMX over Ethernet |
| Operating Voltage | 5V DC (USB Powered) |
| Operating Temperature | 32 °F to 104 °F |
| Dimensions | 3.2 x 2.0 x 0.7 in |
| Net Weight | 3.6 oz |
| Connection Port | 1 x USB 2.0 (Type C) |

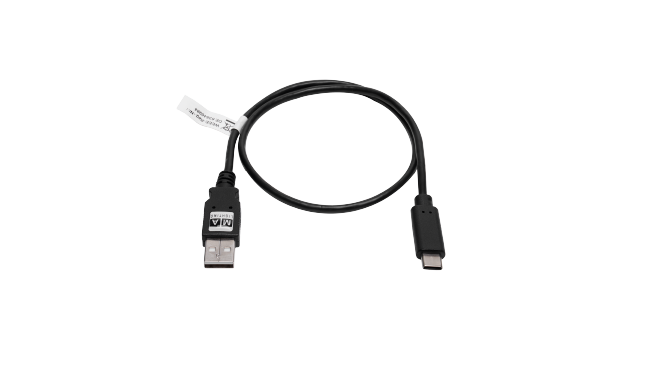

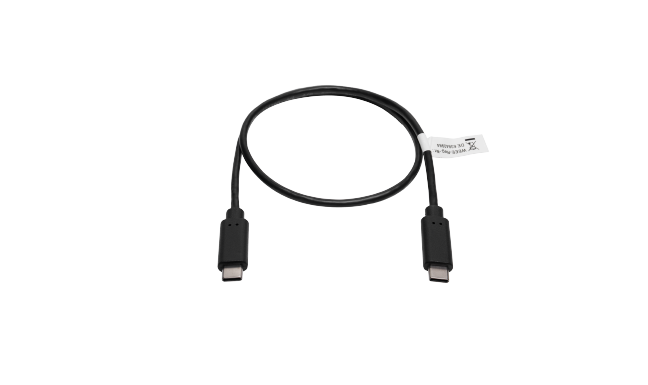

| Included Cables | 1x USB-C to USB-C (1.64 ft), 1x USB-C to USB-A (1.64 ft) |
| Compatibility | Capture, WYSIWYG, Carbon for Unreal, L8, Depence, Vectorworks Vision |
| Internet Requirement | Connection to MA Worldserver required every 10 days |
