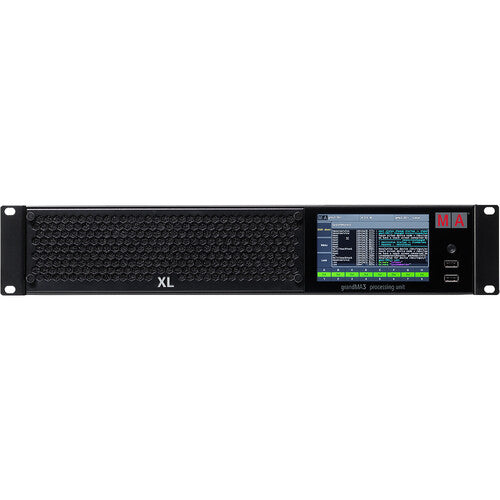

The grandMA3 processing unit XL provides the ultimate parameter expansion for complex lighting control systems. It calculates 16,384 parameters in real-time within the advanced MA-Net3 environment for frame-synchronous performance. This 2RU rack-mounted solution offers substantial size and cost savings for professional touring and permanent installations. An integrated touchscreen allows for immediate system monitoring and maintenance directly from the hardware rack. The unit includes eight DMX outputs to ensure reliable data distribution across any network topology. Backwards compatibility is maintained through Mode2, expanding existing grandMA2 systems by 4,096 parameters. Each unit is built with high-quality connectors including etherCON and powerCON TRUE1 for secure operation.
| Processing Power | 16,384 Parameters (grandMA3 Mode) |
| Legacy Support | 4,096 Parameters (grandMA2 Mode2) |
| Rack Height | 2RU |
| DMX Ports | 8 x DMX512-A Out (5-pin XLR female) |
| Network Ports | 2 x etherCON/RJ45 |
| Data Ports | 3 x USB 2.0 (Type A) |
| Operating Voltage | AC 100 - 240 V; 50/60 Hz |
| Power Consumption | 200 VA maximum |
| Dimensions | 19 x 15 x 4 inches |
| Net Weight | 12 lbs |
