This high-performance node represents MA Lighting’s largest model for distributing DMX lines in professional environments. The 19-inch 1RU housing synchronously outputs eight DMX universes within any grandMA3 system for maximum flexibility. Equipped with a 1 Gb/s Ethernet connection and PoE support, it ensures reliable data conversion while reducing cabling requirements. Users can unlock 4,096 parameters directly within the grandMA3 onPC software for cost-effective, full-featured fixture control. The unit supports MA-Net3, sACN, and Art-Net protocols with full RDM compliance for versatile network integration. A front-facing 3.9-inch color display provides immediate status overviews and simplified configuration. This robust interface is ideal for permanent theatre installations or demanding touring festival racks.
| Parameters | 4,096 (HTP/LTP) |
| Operating Voltage | 100-240V AC; 50/60 Hz or PoE (IEEE 802.3af) |
| Power Consumption | 15 VA maximum |

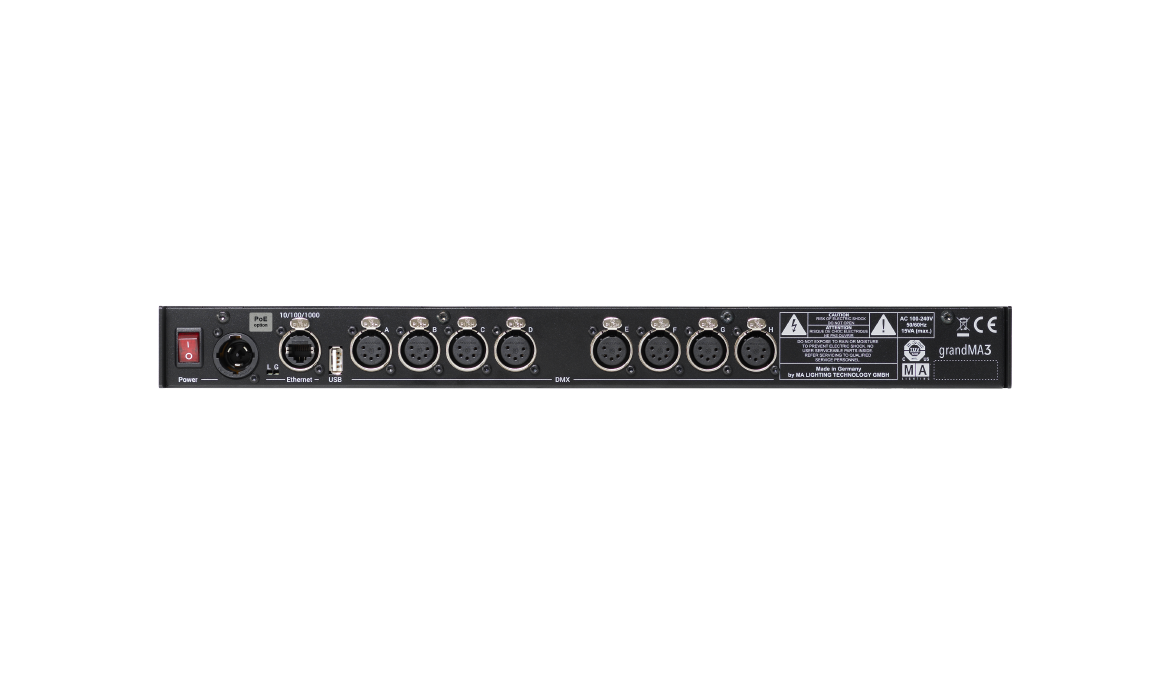

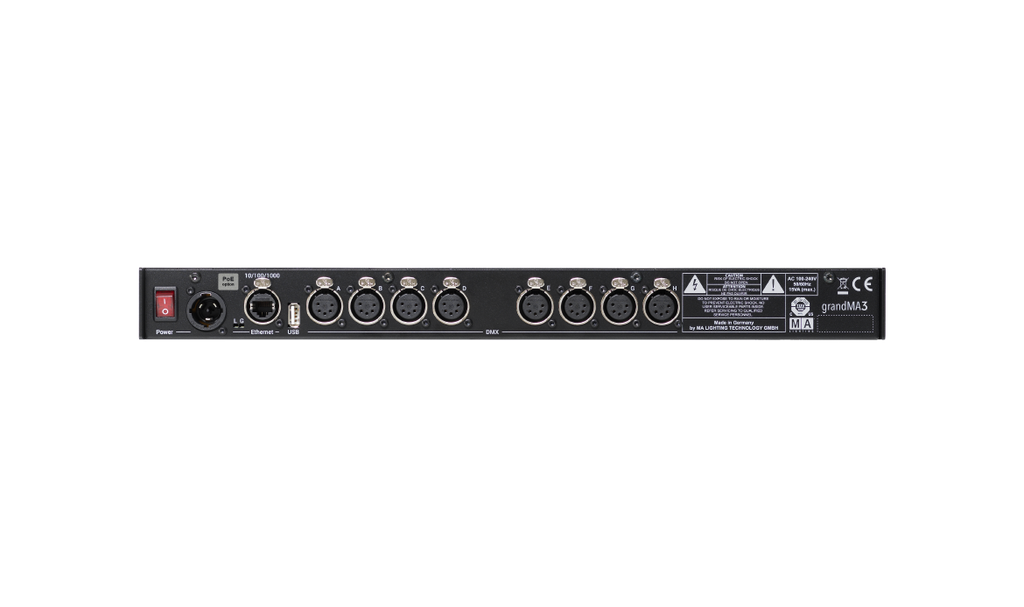

| Connectors | 1 x powerCON TRUE1, 1 x etherCON/RJ45, 1 x USB 2.0 |
| DMX Output | 8 x DMX512-A Out (5-pin XLR female) |
| Housing | 19-inch Rackmount, 1RU |
| Dimensions | 19 x 8 x 2 inches |
| Net Weight | 5 lbs |

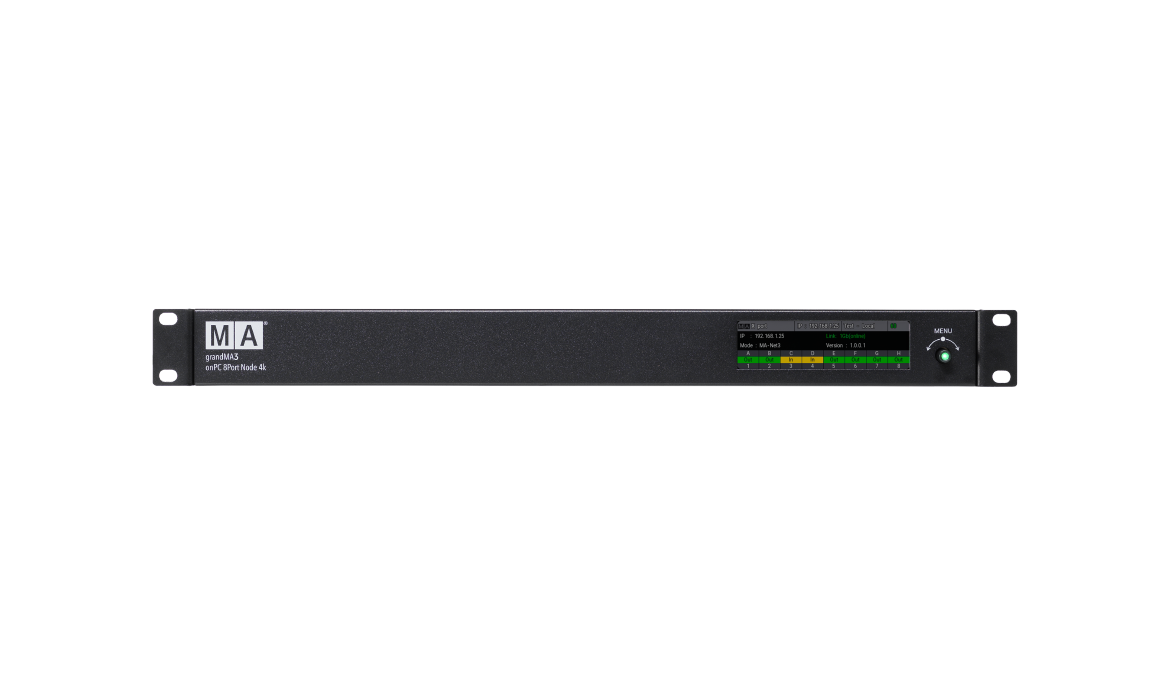

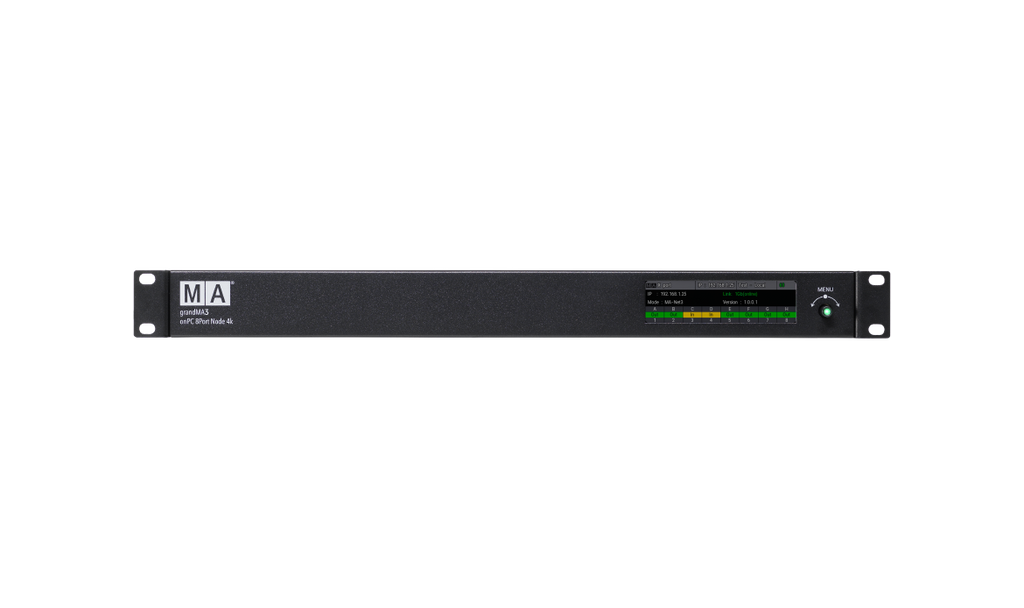

| Display | 3.9-inch Color Screen |
| Protocols | MA-Net3, MA-Net2, sACN, Art-Net, RDM |
