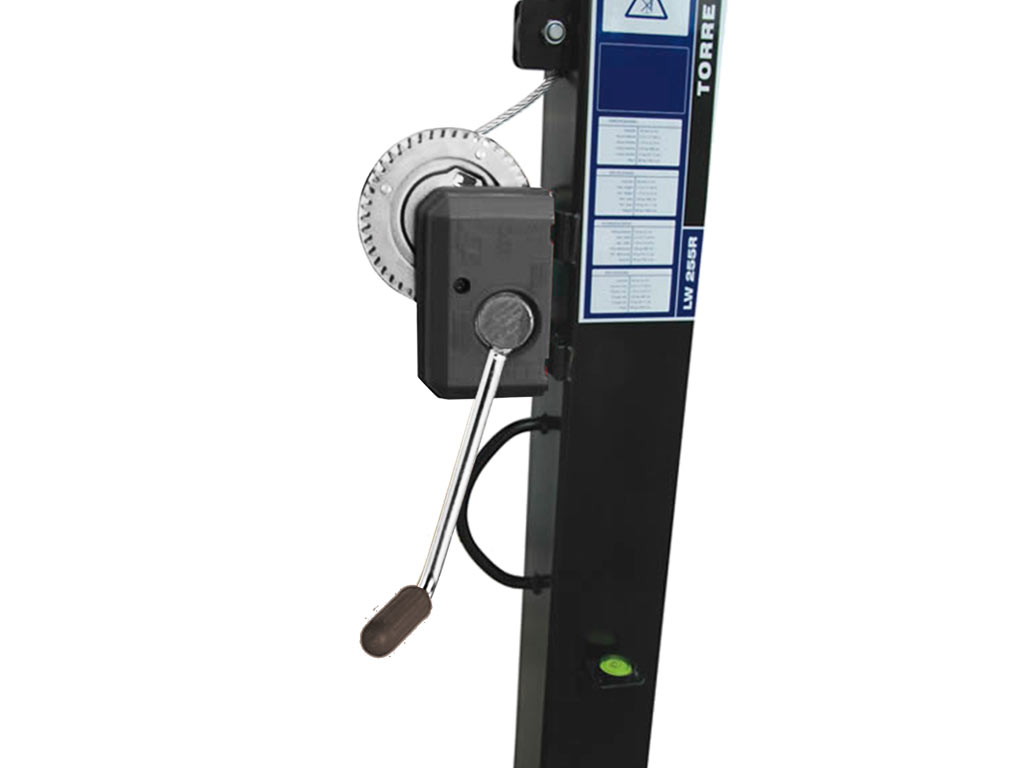

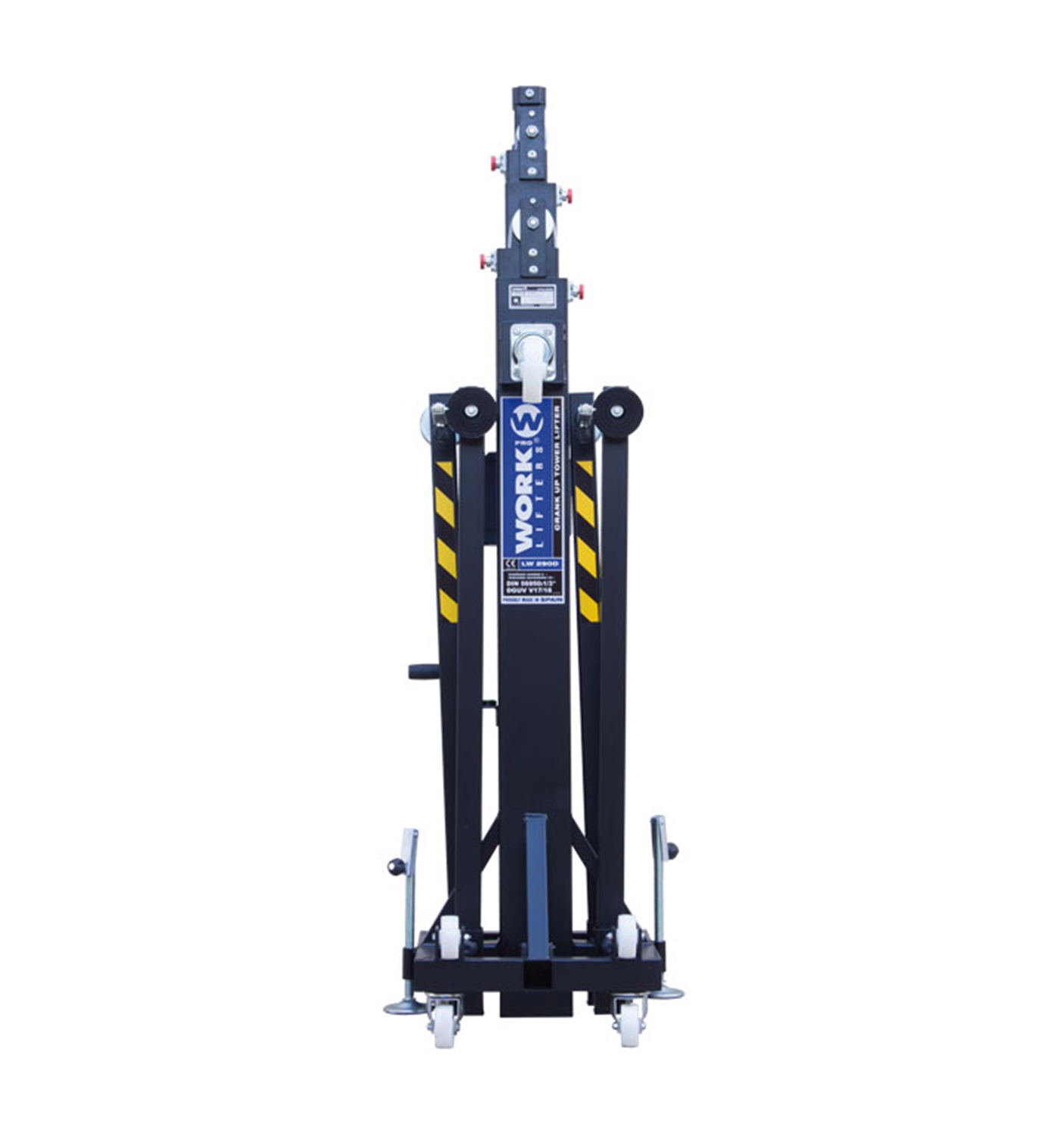

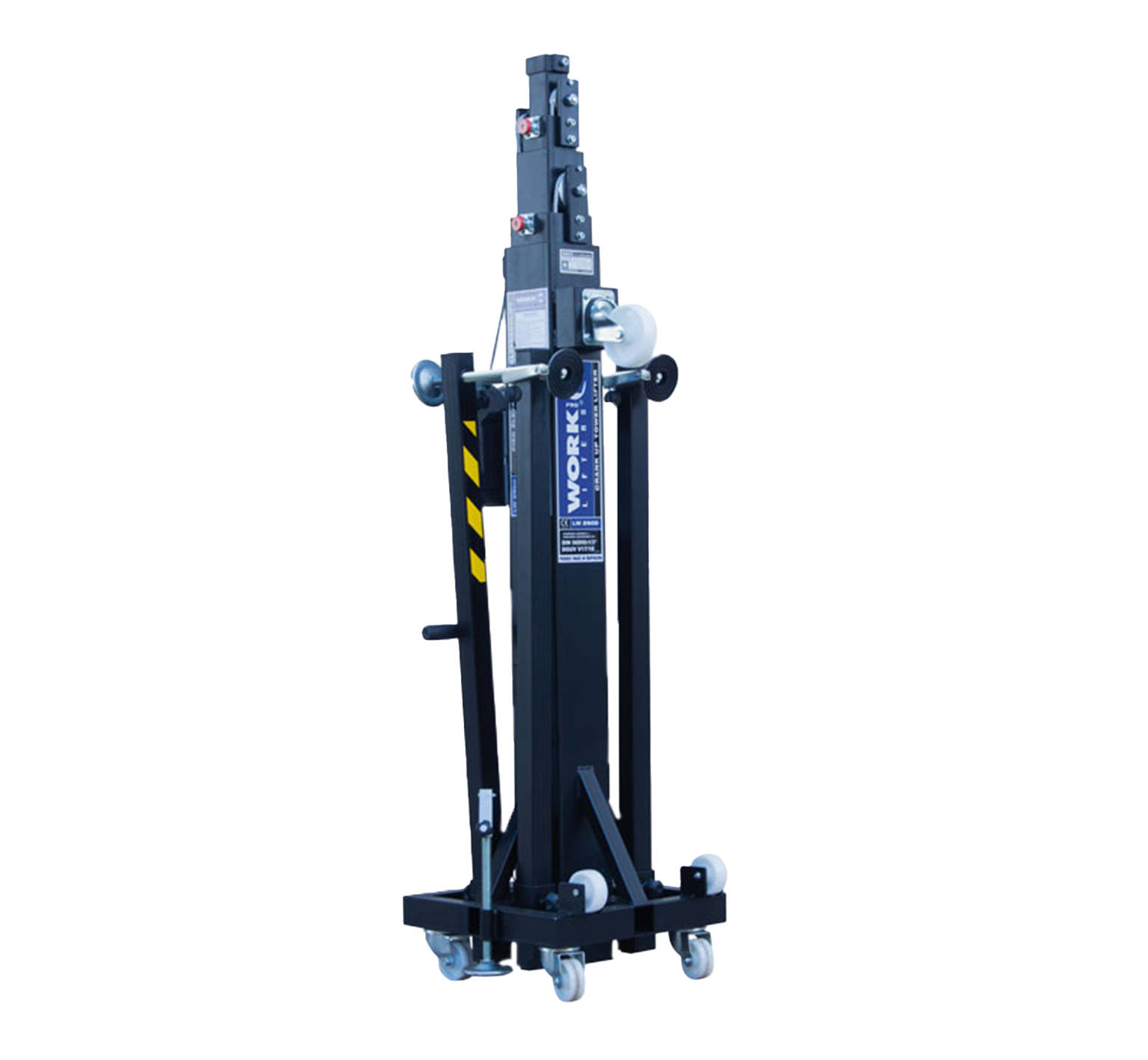

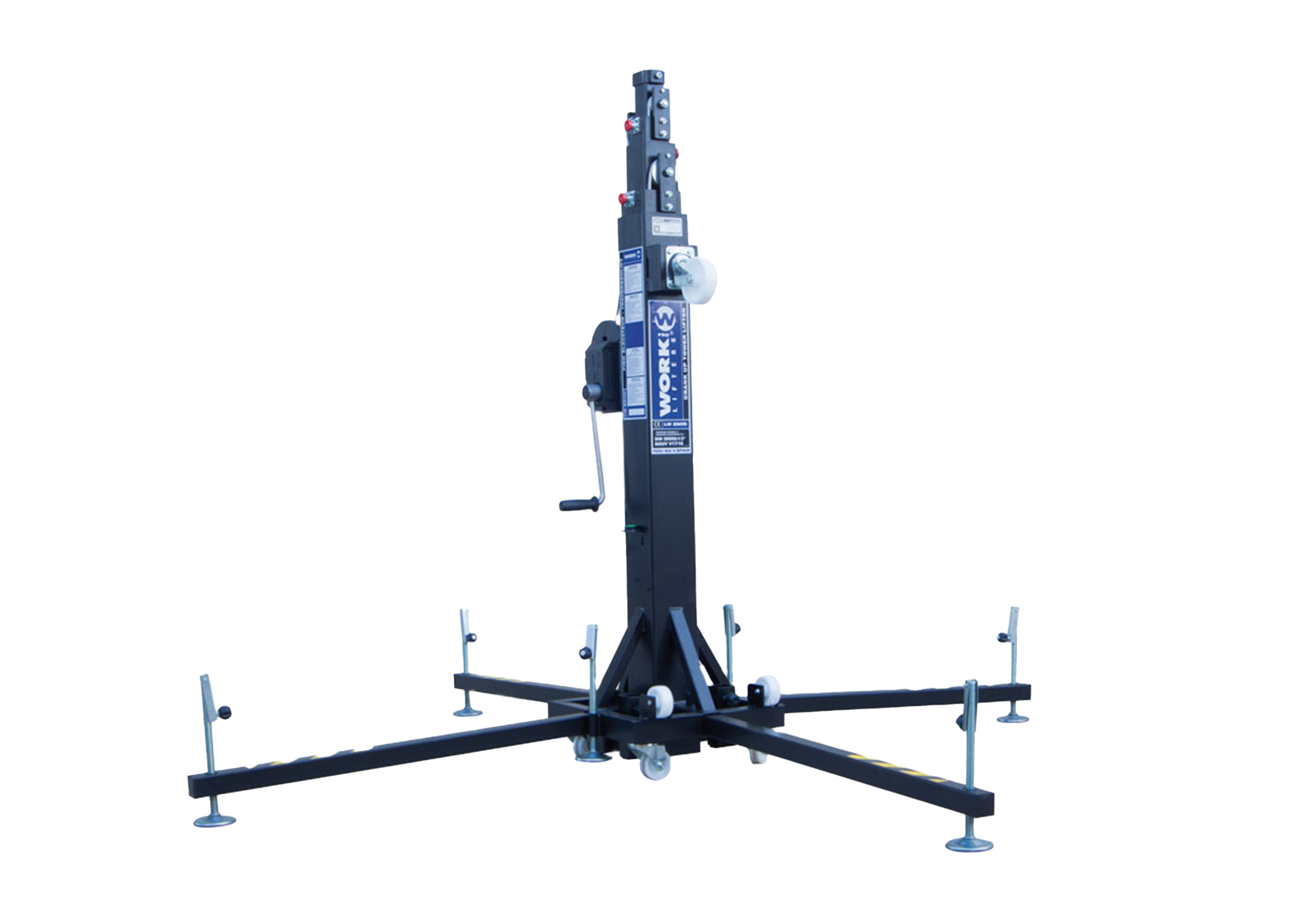

The LW 265D is a professional telescopic lifter engineered for demanding event production and stage rigging. Three extensible steel profiles provide a maximum elevation height of 21.33 feet with a robust load capacity of 485 pounds. This model features an innovative Wire Drive system designed to eliminate dangerous cable crossing within the winch drum. Integrated multidirectional grooved pulleys ensure smooth cable travel and significantly extend the lifespan of the lifting wire. Full compliance with DIN 56950 standards guarantees the highest level of safety for overhead lifting applications. The compact base includes heavy-duty castors for effortless positioning and transport across venue floors.
| Material | High-Grade Carbon Steel |
| Maximum Height | 21.33 ft |
| Minimum Height | 5.91 ft |
| Maximum Load Capacity | 485.02 lb |
| Minimum Load Capacity | 55.12 lb |
| Unfolded Diameter | 8.27 ft |
| Base Dimensions (Folded) | 1.51 x 1.51 ft |
| Winch Capacity | 1102.31 lb |
| Noise Emissions | 72 dB |
| Safety Standard | DIN 56950 Compliant |
