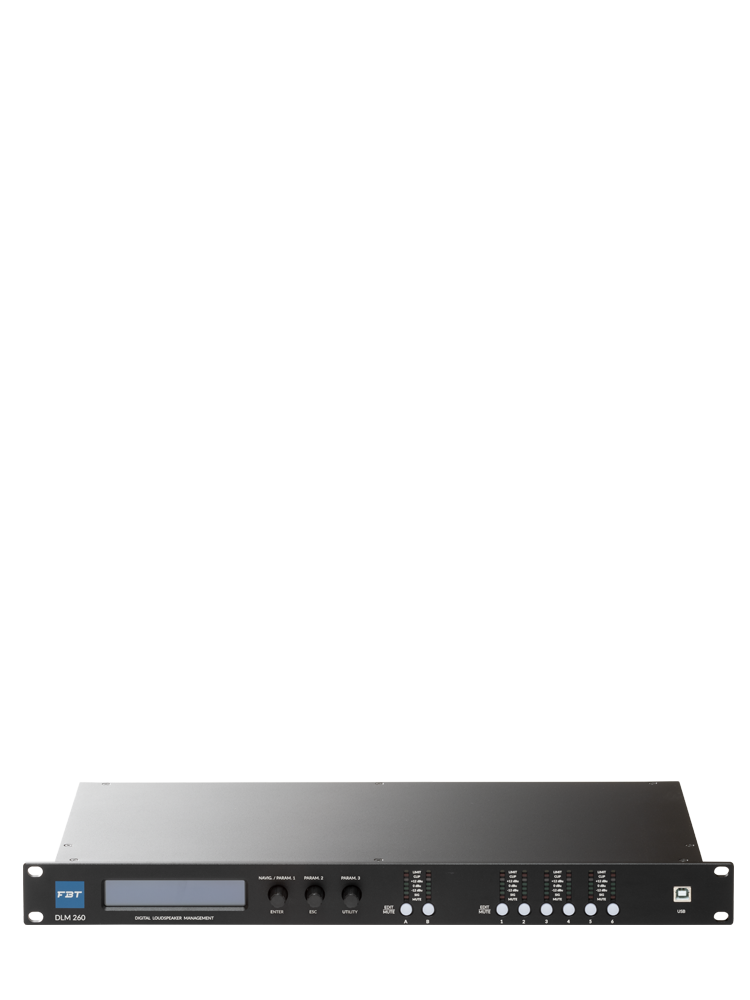

The FBT DLM 260 is a sophisticated digital loudspeaker management system engineered for precise sound reinforcement control. It features two balanced inputs and six balanced outputs driven by high-performance 24-bit AD/DA converters. Each input channel provides comprehensive gain control, delay, and a 5-band parametric equalizer for detailed acoustic calibration. The output sections include versatile crossover filters, 7-band parametric EQ, and independent peak limiters to ensure maximum component protection. An intuitive front panel interface allows for immediate parameter adjustments, while the integrated USB port supports advanced software management. Built into a rugged 1U rackmount chassis, it is ideal for both demanding touring rigs and permanent installations. This processor maintains exceptional signal integrity while offering flexible routing for complex multi-way speaker configurations.
| Type | Digital Loudspeaker Management System |
| Inputs | 2 x XLR Balanced |
| Outputs | 6 x XLR Balanced |
| AD/DA Conversion | 24-bit |
| Rack Space | 1U |
| Frequency Response | 20Hz to 20kHz |
| Connectivity | USB, RS485 |
| Equalization | 5-band Parametric (In), 7-band Parametric (Out) |
