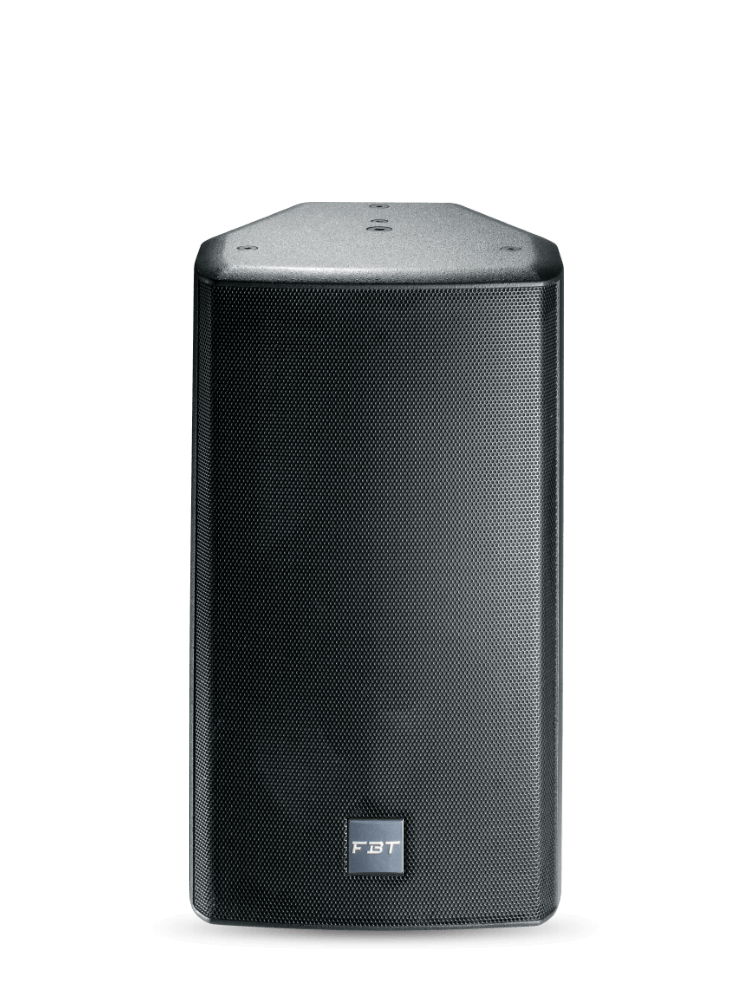

The FBT Archon 112 is a high-performance passive point source speaker designed for professional indoor installations. It features a custom 12-inch low-frequency woofer and a 1-inch high-frequency compression driver for precise audio reproduction. The enclosure is constructed from premium 0.59-inch Baltic birch plywood with an internal bracing system to minimize resonance. A rotatable 90° x 60° constant directivity horn allows for flexible vertical or horizontal mounting. This speaker delivers 500W of continuous power at 8 ohms, ensuring clean and impactful sound across the frequency spectrum. Integrated M10 rigging points and a variety of mounting accessories facilitate seamless integration into any architectural environment. The sleek, unobtrusive design makes it an ideal choice for clubs, theaters, and houses of worship.
| Transducer Type | Passive 2-Way Point Source |
| Low Frequency Woofer | 12-inch with 2.5-inch voice coil |
| High Frequency Driver | 1-inch with 1.4-inch voice coil |
| Power Handling | 500W RMS / 1000W Program |
| Nominal Impedance | 8 Ohms |
| Frequency Response | 50Hz - 18kHz (-6dB) |
| Sensitivity | 99dB 1W/1m |
| Cabinet Material | 0.59-inch Baltic Birch Plywood |
| Rigging Points | 12 x M10 threaded points |
| Input Connectors | 2 x Neutrik Speakon NL4 |
