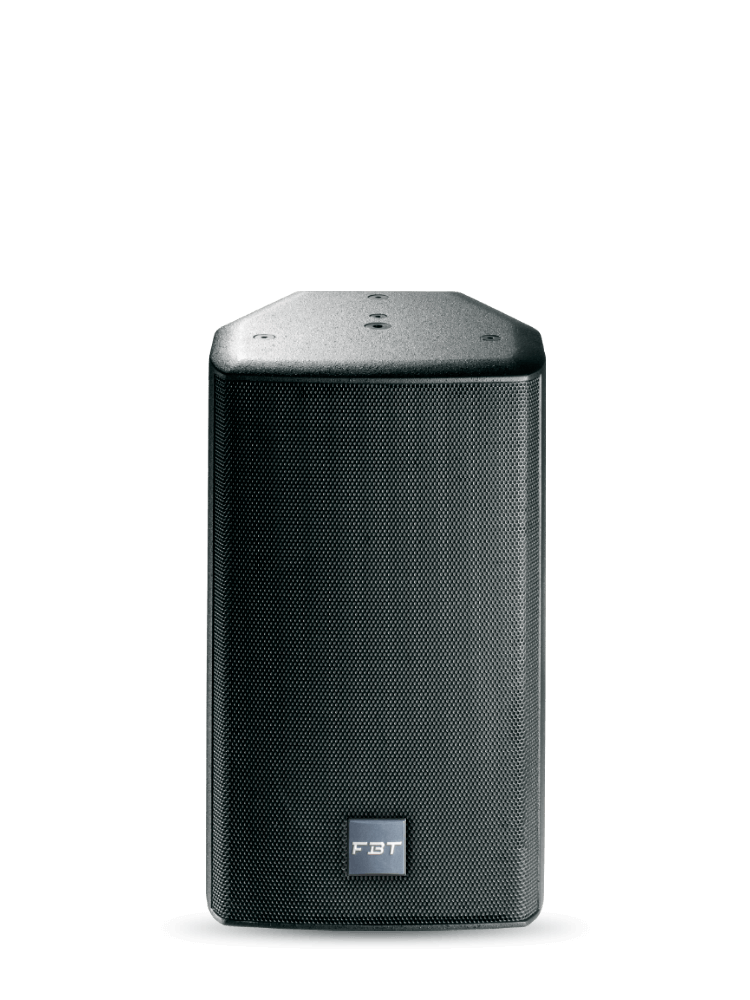

The FBT Archon 110 is a high-performance passive point source speaker engineered for professional sound reinforcement in permanent installations. It features a custom 10-inch low-frequency woofer paired with a 1-inch compression driver for exceptional vocal clarity and musical detail. The enclosure is crafted from 15mm Baltic birch plywood with an internal metal plate for added structural rigidity. A rotatable 80° x 50° constant directivity horn allows for precise coverage in both horizontal and vertical mounting configurations. Integrated M10 rigging points and a standard pole mount socket offer versatile deployment options across various venue types. The passive crossover network is designed with high-quality components to ensure seamless transition and reliable performance under heavy loads. This speaker provides a sophisticated solution for theaters, clubs, and houses of worship requiring premium audio fidelity.
| Configuration | 2 Way Passive |
| Low Frequency Woofer | 10 inch with 2.5 inch voice coil |
| High Frequency Driver | 1 inch exit with 1.4 inch voice coil |
| Power Handling | 350W RMS / 700W Program |
| Nominal Impedance | 8 Ohm |
| Frequency Response | 60Hz - 22kHz (-6dB) |
| Maximum SPL | 129dB |
| Dispersion | 80°H x 50°V Rotatable |
| Crossover Frequency | 1.8 kHz |
| Cabinet Material | 15mm Baltic Birch Plywood |
