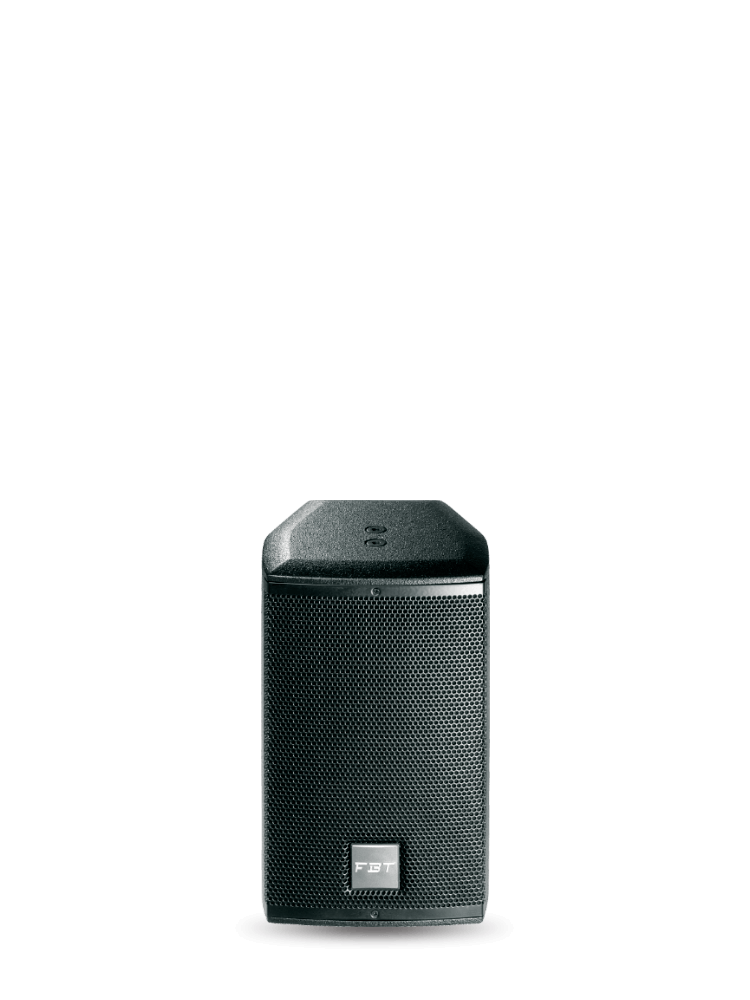

The FBT Archon 105 delivers high-quality sound reinforcement in a compact, elegant birch plywood enclosure. Designed for permanent installations, this passive point source speaker features a 5-inch low-frequency woofer and a 1-inch dome tweeter. It provides exceptional speech intelligibility and music reproduction for hospitality and corporate environments. The internal crossover ensures seamless transition between drivers while protecting the components during high-output operation. Multiple M5 rigging points and optional brackets allow for flexible mounting configurations on walls or ceilings. Its textured paint finish and robust steel grille provide a professional aesthetic that blends into any architectural setting. This speaker is an ideal choice for distributed audio systems requiring precision and reliability.
| Configuration | 2 Way Passive |
| Low Frequency Woofer | 5 inch with 1.25 inch voice coil |
| High Frequency Driver | 1 inch dome tweeter |
| Power Handling | 200W RMS / 400W Program |
| Nominal Impedance | 8 Ohms |
| Frequency Response | 70Hz - 22kHz |
| Sensitivity | 89dB @ 1W/1m |
| Maximum SPL | 112dB continuous / 115dB peak |
| Enclosure Material | 0.47 inch Baltic Birch Plywood |
| Input Connectors | 4-pin Euroblock |
