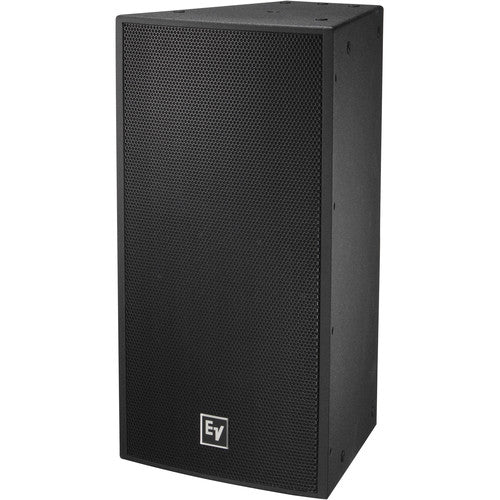

The Electro-Voice EVF-1122S is a high-performance 12-inch two-way loudspeaker designed for permanent installation in diverse acoustic environments. This professional-grade system features the SMX2121 woofer and an ND2B compression driver for exceptional sonic clarity and power handling. Its rotatable waveguide allows for precise coverage pattern adjustment to suit specific venue requirements. The enclosure is constructed from 13-ply birch plywood with a durable finish to ensure long-term structural integrity. Integrated rigging points provide versatile mounting options for stadiums, houses of worship, and performing arts centers. Advanced crossover design optimizes the transition between drivers for a seamless and natural frequency response. This loudspeaker delivers consistent, high-impact audio performance even in the most demanding sound reinforcement applications.
| LF Transducer | 12-inch SMX2121 woofer |
| HF Transducer | 2-inch ND2B titanium compression driver |
| Frequency Response (-3 dB) | 58 Hz – 16 kHz |
| Maximum SPL | 131 dB |
| Power Handling | 500W Continuous, 2000W Peak |
| Nominal Impedance | 8 ohms |
| Enclosure Material | 13-ply birch plywood with EVCoat |

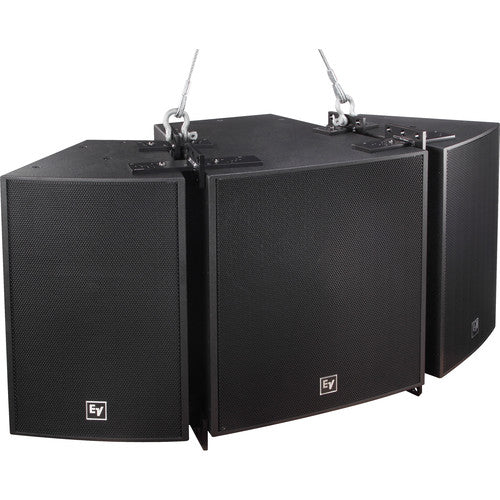

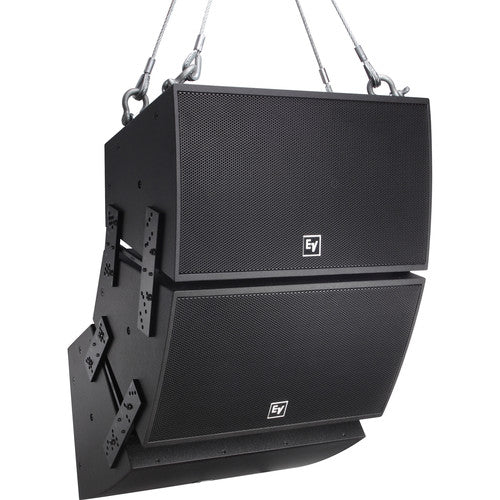

| Rigging | 22 x M10 threaded points |
| Dimensions | 30.26" x 16.0" x 18.33" (estimated: true) |
