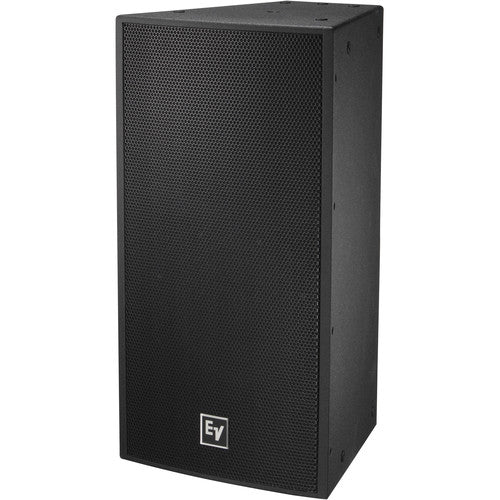

The Electro-Voice EVF-1122S is a professional 12-inch two-way loudspeaker designed for high-impact permanent installations. It utilizes an SMX2121 low-frequency transducer paired with an ND2B compression driver to deliver superior acoustic performance. The 13-ply birch plywood cabinet features internal bracing and a rugged textured finish for maximum structural integrity. Integrated rotatable waveguides allow for precise horizontal or vertical orientation to suit specific venue acoustics. Twenty-two threaded M10 points provide versatile rigging options for seamless integration into architectural spaces. Advanced crossover networks and protection circuitry ensure reliable operation even during peak power demands. This system provides a maximum SPL of 131 dB, making it suitable for large auditoriums and houses of worship.
| Material | 13-ply Birch Plywood |
| Finish | Black EVCoat (Textured Paint) |
| Transducer (LF) | 12-inch SMX2121 Woofer |
| Transducer (HF) | 2-inch ND2B Compression Driver |

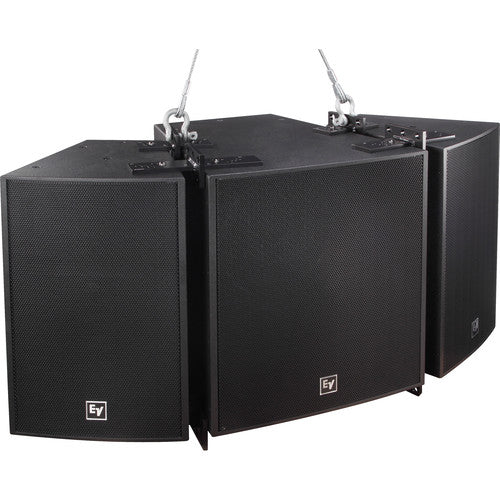

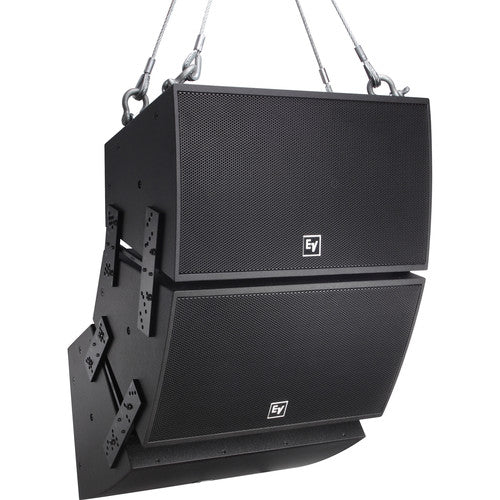

| Mounting | 22 x M10 Threaded Points |
| Frequency Response (-3 dB) | 58 Hz – 16 kHz (estimated) |
| Power Handling | 500W Continuous, 2000W Peak (estimated) |
| Maximum SPL | 131 dB (estimated) |
| Nominal Impedance | 8 Ohms |
| Grille | 16-gauge Steel with Cloth |
