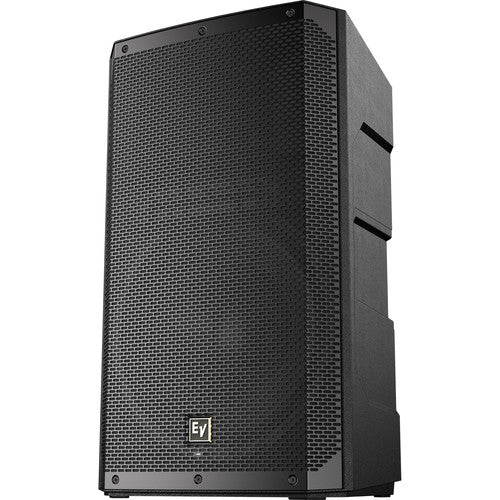

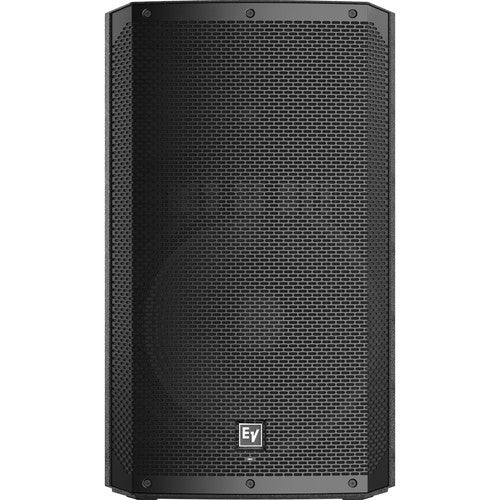

The ELX200-15P delivers professional-grade audio performance through a high-efficiency 1200-watt Class-D power amplifier. Integrated QuickSmartDSP provides intuitive system control via four factory presets and user-programmable settings. Its 15-inch EVS-15M woofer produces deep low-frequency response suitable for demanding live sound applications. High frequencies are handled by a 1-inch titanium compression driver for exceptional clarity and projection. The patented Signal Synchronized Transducers waveguide design ensures precise and consistent coverage across any audience. Constructed from lightweight polypropylene, the enclosure is engineered to withstand rigorous mobile use and transport. Professional mounting hardware includes three M10 threaded points and integrated pole mounts for versatile installation.
| Power Rating | 1200 Watts |
| LF Transducer | EVS-15M 15-inch woofer |
| HF Transducer | DH-1C 1-inch titanium compression driver |
| Maximum SPL | 132 dB |
| Frequency Response | 48 Hz – 19 kHz (-10 dB) |
| Coverage | 90° x 60° (H x V) |
| Enclosure Material | Polypropylene with 18 AWG steel grille |

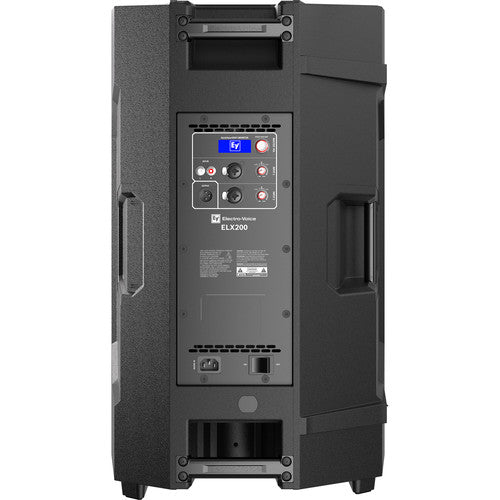

| Connectors | 2x XLR/TRS combo, 1x Stereo RCA, 1x XLR link |
