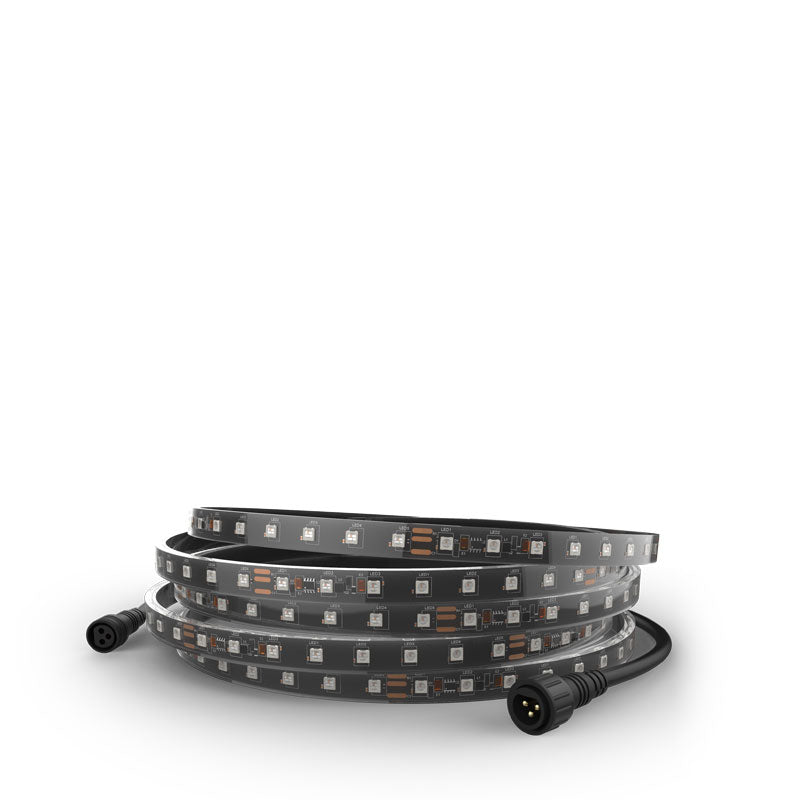

ÉPIX Flex 20 is a durable, outdoor-rated LED flexible strip that extends 196.85 inches and can be cut and prolonged without compromising its IP67 rating. This design allows it to line even the most complicated spaces, offering significant installation versatility. Featuring 240 individually controllable RGB LEDs, it provides a spectrum of color-changing options, dimming, and brightening capabilities. This strip is also pixel-mappable, enabling sophisticated video and motion graphics displays. Operating on a reliable plug-and-play 24 V system, it supports 75 feet of extension from the required ÉPIX Flex Drive controller. It offers versatile control via DMX, Art-Net, and sACN, supporting extensive programming with alternate 17 or 34 channel personalities or a 720-channel pixel personality. The unit includes 10 mounting bracket sets, simplifying permanent installations in diverse entertainment and architectural venues.
| Light Source | 240 Tri-Color RGB SMD LEDs |
| LED Life Expectancy | 50,000 hours |
| Luminous Flux | 140 lumens per foot |
| Viewing Angle | 160 degrees |
| Pixel Resolution | 240 pixels (1-row) |
| Pixel Pitch | 0.79 inches (20 mm) |
| Ingress Protection | IP67 (Outdoor Rated) |
| Control Protocols | DMX, Art-Net, sACN |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Housing Material | High-temperature silicone with UV protection |
