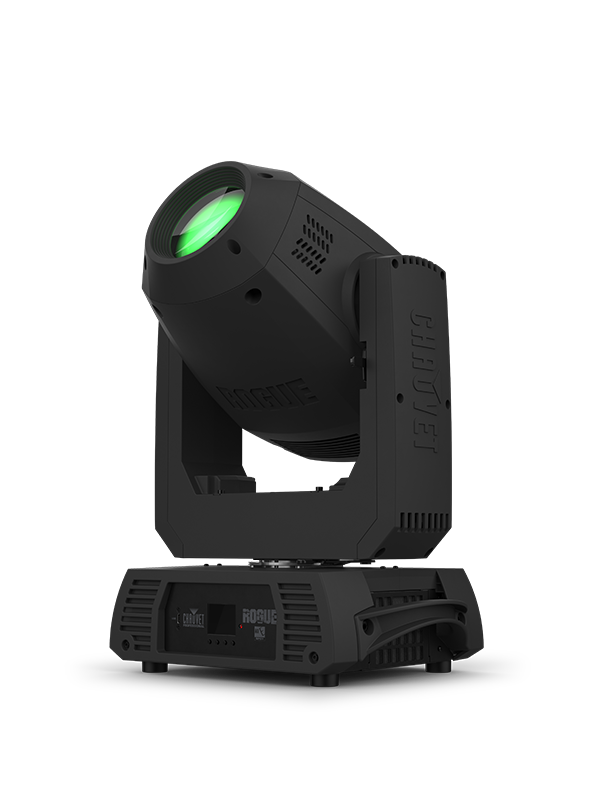

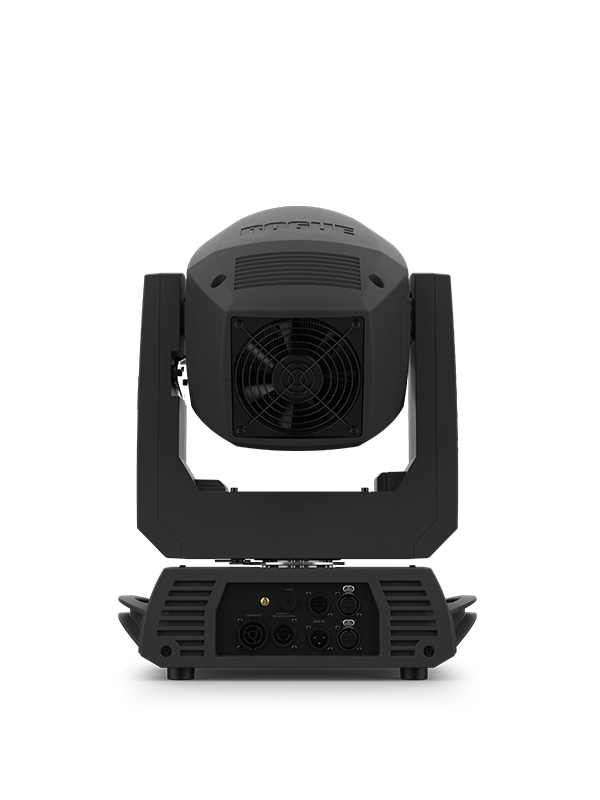

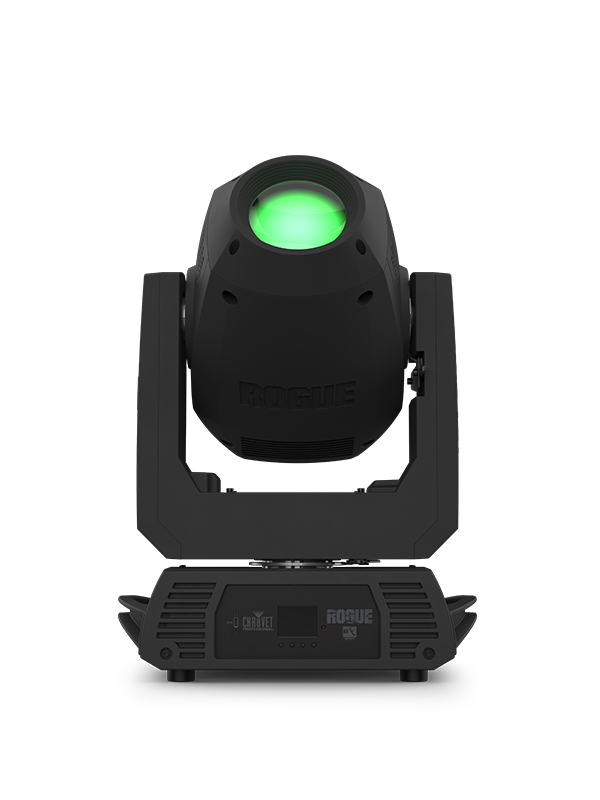

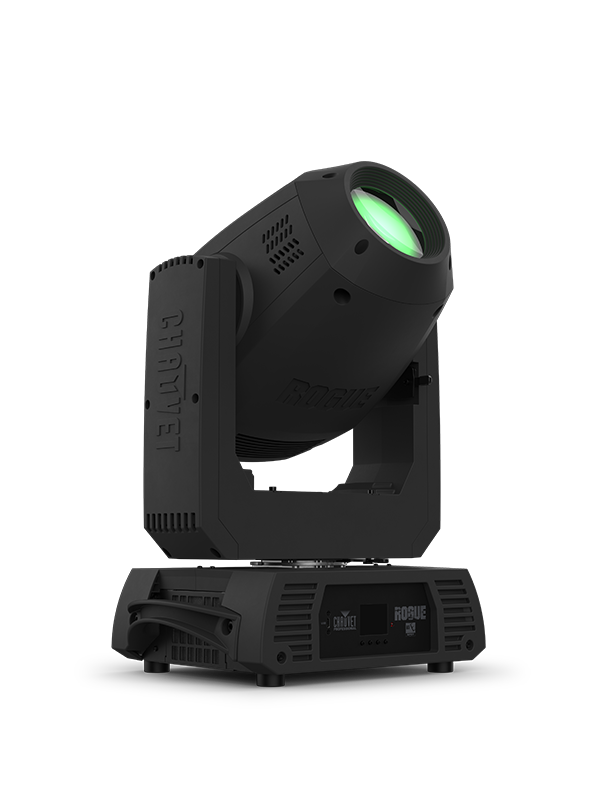

The Rogue R1E Spot is a compact, lightweight moving yoke fixture, engineered for professional lighting applications. It features an intense 200W LED light engine, delivering exceptional output and clarity. A versatile wheelhouse includes a 3-facet rotating prism for dynamic aerial effects and a motorized iris for precise beam shaping. Dual gobo wheels, one rotating and interchangeable, and one static, facilitate complex gobo morphing capabilities. The integrated color wheel offers eight brilliant colors, white, and split-color options for diverse chromatic palettes. Its 15° beam angle ensures crisp gobo projections, maintaining visual integrity in any production. Selectable LED maximum output settings allow seamless integration and brightness matching with existing Rogue R1X Spot fixtures.
| Light Source | 1 x 200W CW LED |
| Light Source Life Expectancy | 50,000 hours |
| Color Temperature | 7423 K |
| Beam Angle | 15.3° |
| Output Lumens | 12,210 |
| Illuminance | 9,021 lux @ 16.4 ft |
| Pan/Tilt Range | 540° pan / 270° tilt |
| Color Wheel | 8 colors + white, split colors |
| Gobo Wheels | Dual (1 rotating, 1 static) |
| Prism | 3-facet, motorized, rotating |
| Dimming | 16-bit electronic |
| DMX Channels | 16 or 19 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 315 W @ 120 V, 60 Hz |
| IP Rating | IP20 (dry location) |
