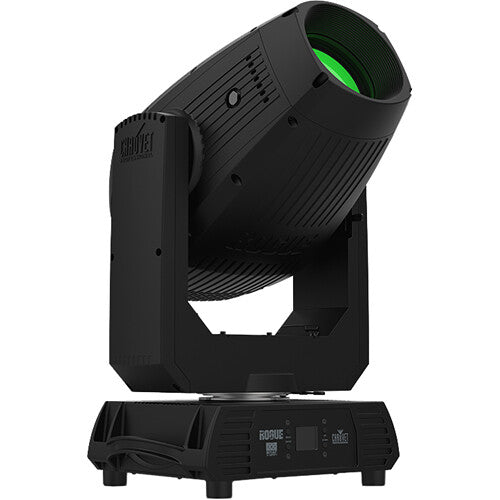

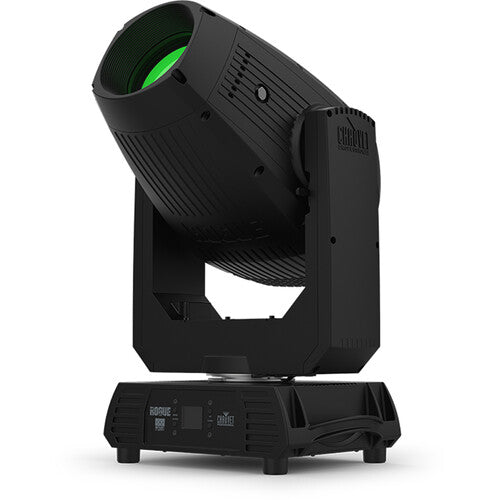

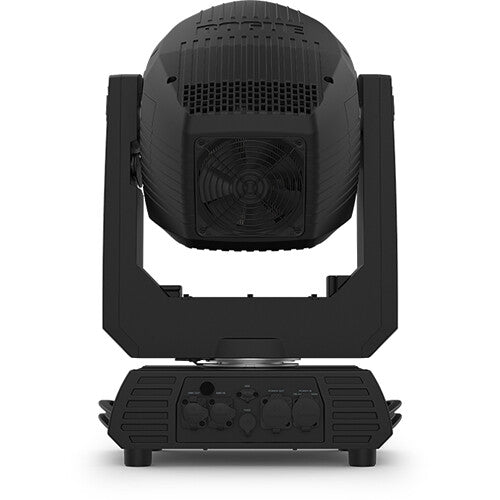

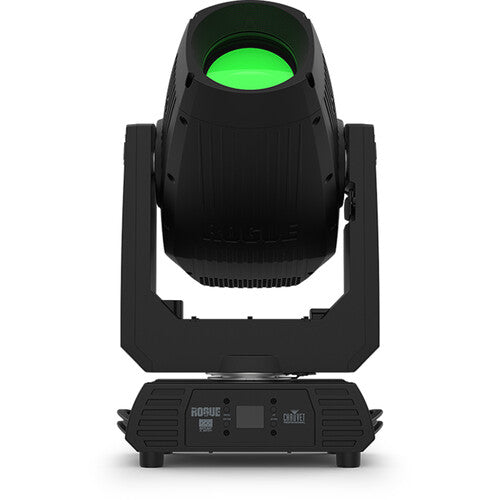

The Rogue Outcast 3 Spot is an advanced IP65 LED moving head fixture engineered for rigorous professional applications. Its robust, lightweight alloy construction ensures durability against environmental elements and particulates like fog and haze, making it ideal for both outdoor and indoor installations. This luminaire offers exceptional color possibilities through dual color wheels and dynamic morphing effects via dual gobo wheels. Precise beam control is achieved with motorized zoom, iris, a five-facet prism, and frost. Experience seamless lighting transitions with beautiful 16-bit LED dimming for ultimate fade control. Versatile DMX control and RDM capability provide flexible programming and remote troubleshooting options. This powerful fixture delivers consistent, high-performance illumination across various settings.
| Light Source | 1 x 300W Cool White LED (7044K), 50,000 hours life expectancy |
| Front Lens Diameter | 4.68 inches |
| CRI | 70 |
| Beam Angle | 4.9° to 33.7° |
| Field Angle | 5.5° to 38° |
| Zoom Range | 4.9° to 38.7° |
| Lumens Output | 14,989 |
| Illuminance (4.9°) | 56,916 lux @ 16.4 feet |
| Illuminance (38.7°) | 2,145 lux @ 16.4 feet |
| Pan and Tilt | 540° Pan / 270° Tilt |
| Color Wheels | Two; each with 7 colors + white, split colors, continuous variable speed scrolling |
| Gobo Wheels | Two; one rotating interchangeable (7 metal gobos + open) and one static (8 metal gobos + open) |
| Gobo Size (Rotating Wheel) | 1.0 inch (outside), 0.58 inch (image), 0.078 inch (max. thickness) |
| Gobo Size (Static Wheel) | 0.94 inch (outside), 0.63 inch (image), 0.024 inch (max. thickness) |
| Dimming | 16-bit Electronic |
| Dynamic Effects | Motorized Zoom, Focus, Frost, Iris, 5-facet Prism |
| Strobe Rate | 0 to 20 Hz |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Consumption (120V) | 506 W, 4.24 A |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 feet |
| Control Protocol | DMX, RDM |
| DMX Channels | 20 or 25 |
| IP Rating | IP65, temporary outdoor/wet |
| Operating Temperature | -14°F to 113°F |
| Housing Material | High-impact flame-retardant polymer (lightweight aluminum and magnesium alloy) |
| Certifications | CE, MET, UKCA |
