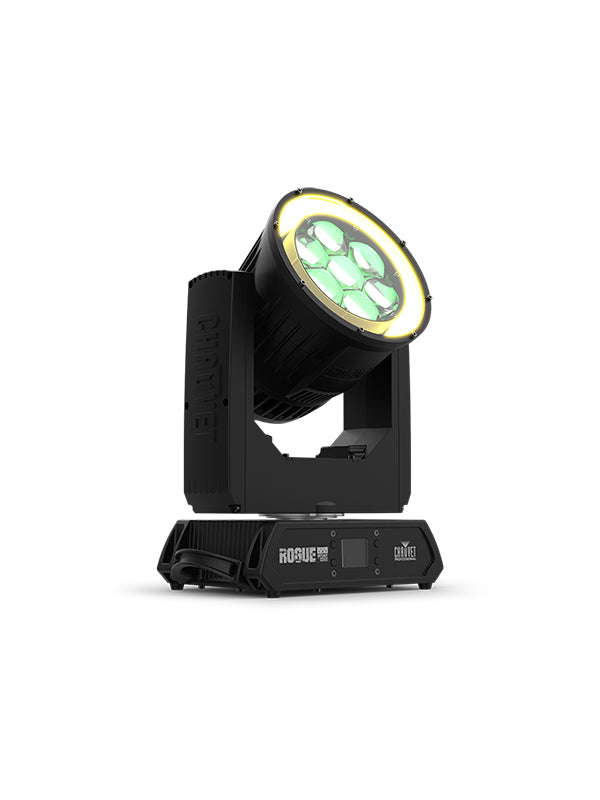

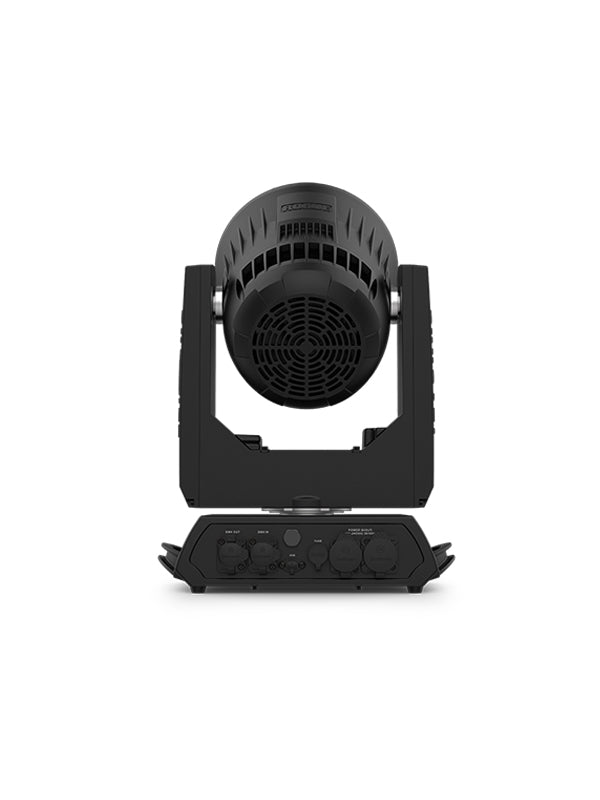

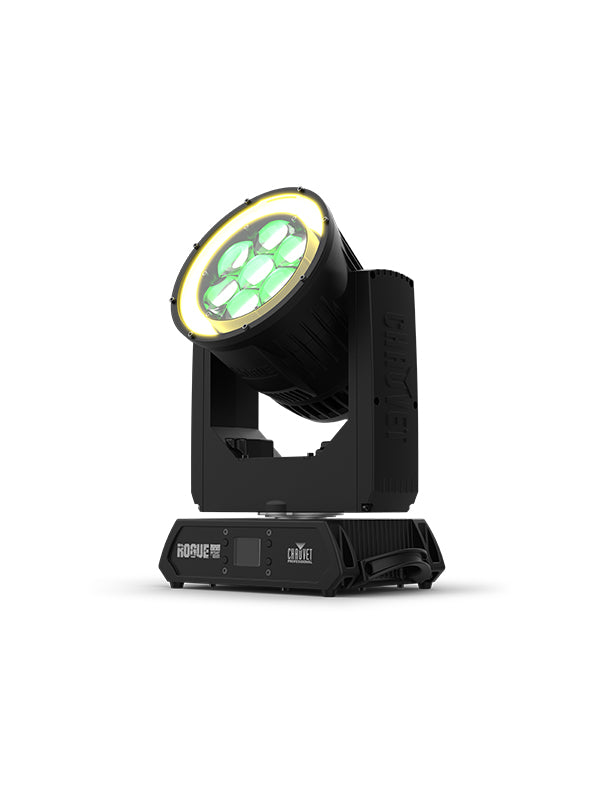

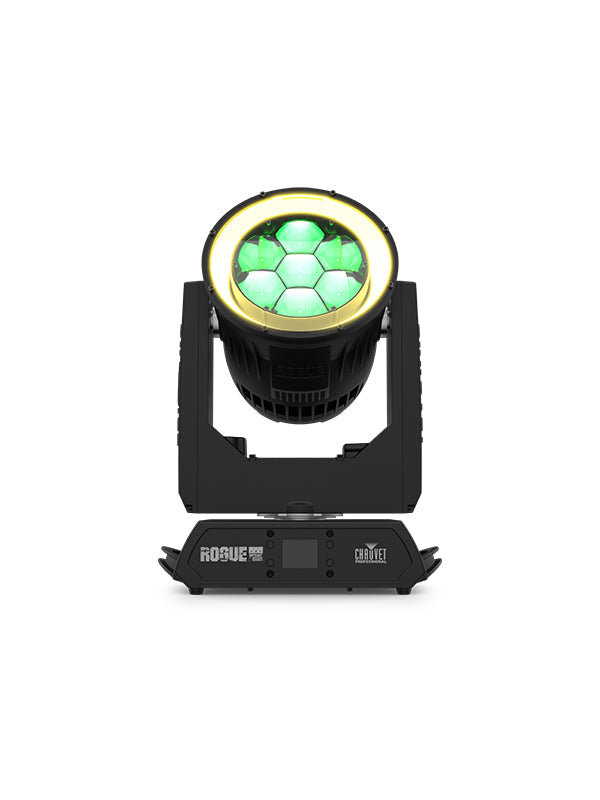

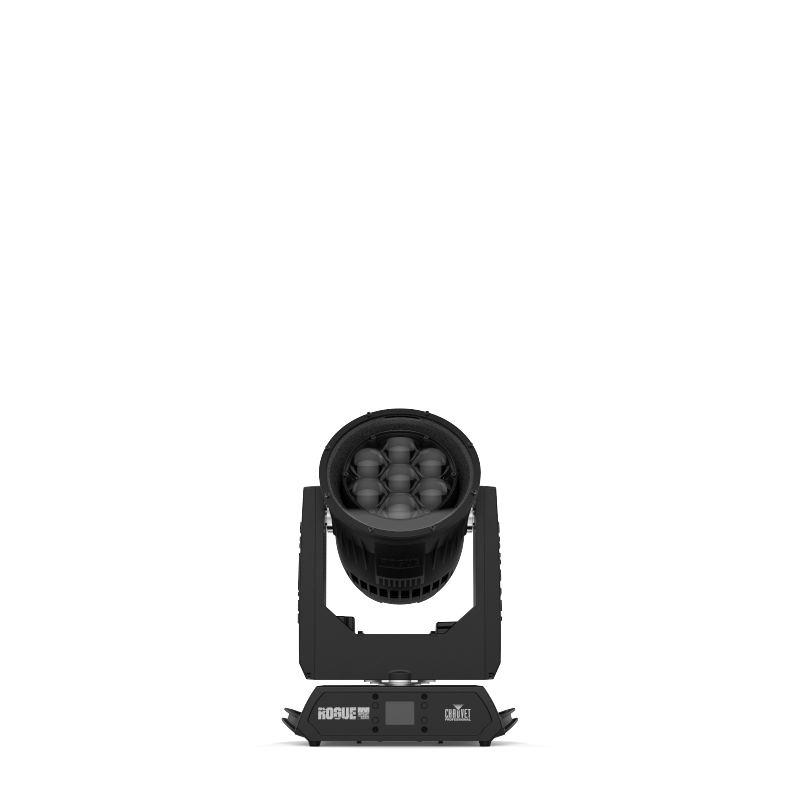

The Rogue Outcast 1 BeamWash is a lightweight, IP65-rated LED Beam and Wash fixture, featuring an integrated pixel-mappable LED ring. Its unique lens design enables tight beam effects, providing a broad zoom range from 3.9° to 55.3° for extensive coverage. Seven powerful 45W RGBW LEDs ensure exceptional color mixing and punchy output, complemented by 16-bit dimming and multiple dimming modes for precise control. The outer ring incorporates 12 pixel-mappable RGB LED zones, concealed beneath a smoked stealth filter, allowing for sophisticated visual effects. This compact, 20.2-pound fixture boasts a rugged IP65 casing, built to endure challenging environmental conditions. Versatile control options include DMX and RDM protocols, with both simple and advanced profiles. Software updates are conveniently managed via an onboard USB-C port.
| Light Source | 7 RGBW LEDs, 45W each |
| LED Ring | 12-zone pixel-mappable RGB |
| Dimming | 16-bit master and individual color, 6 modes |
| Zoom Range | 3.9° to 55.3° |
| IP Rating | IP65 |
| Control Protocol | DMX, RDM |
| DMX Channels | 15, 24, 30, 64, 111, or 135 (6 personalities) |
| Pan/Tilt | 540° Pan / 260° Tilt |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Housing Material | Magnesium aluminum diecast, high impact, flame-retardant polymer |
| Exterior Color | Black |
| Operating Temperature | -4 °F to 113 °F |
| PWM Settings | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz (Selectable) |
| Lumens Output | 4,073 |
| Power Consumption | 385 W @ 120 V |
| Data Connectors | 5-pin XLR |
| Power Connection Type | Seetronic Powerkon IP65 (Input/Output) |
| Power Cable Length | 5 ft |
