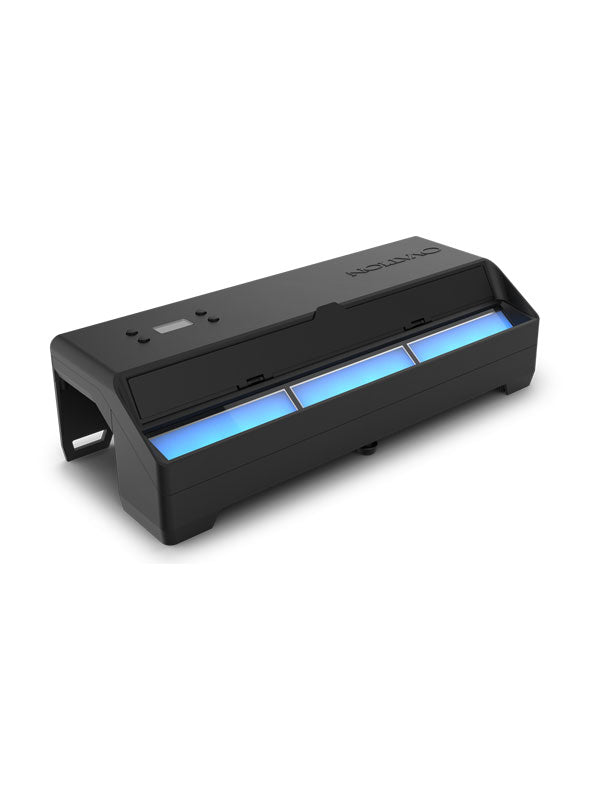

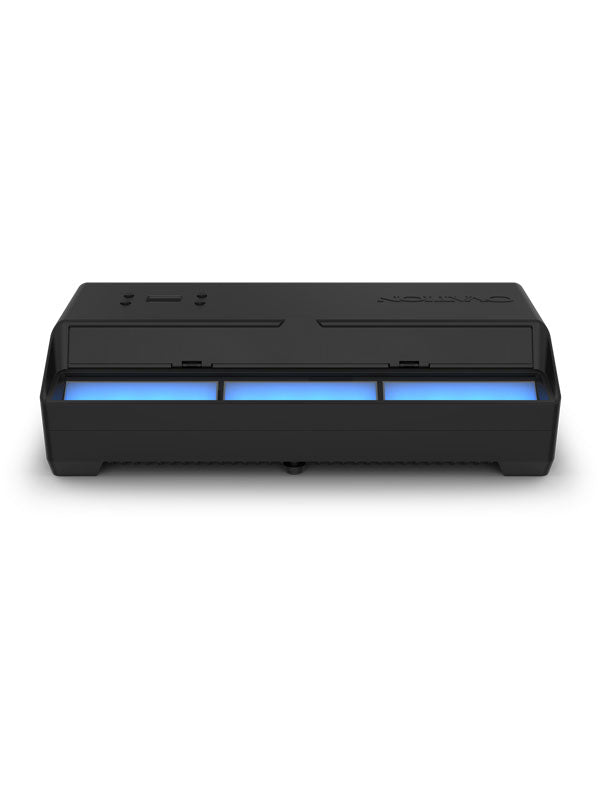

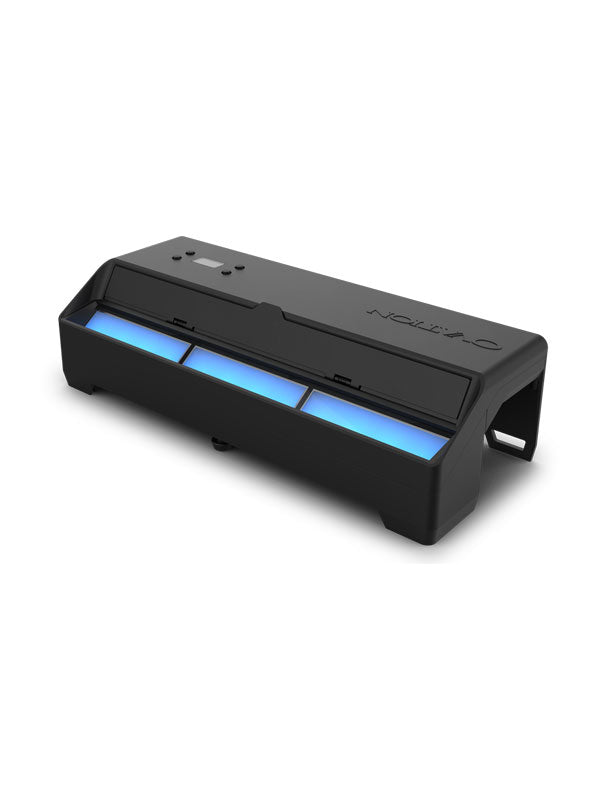

The Ovation CYC 1 FC is a discreet, lightweight cyclorama fixture designed for superior light distribution. Its convection-cooled operation ensures silent performance, critical for theatrical and studio environments. Employing an advanced RGBAL color-mixing system, this unit delivers a vast spectrum of colors with exceptional realism and saturation. The low-profile design allows for effective use as a footlight, enhancing stage versatility. Integrated features like a kickstand and adjustable glare shield provide precise beam modification. This versatile fixture includes an omega bracket for secure mounting options. Experience professional-grade illumination with advanced control and silent efficiency.
| Light Source | 60 RGBAL LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) |
| LED Life Expectancy | 50,000 hours |
| Color Temperature Range | 2800K to 6500K |
| CRI (at 3200K) | 90.6 |
| Lumens Output | 8,966 lumens |
| Illuminance | 210 lux @ 16.4 ft (5 m) |
| Beam Angle (Horizontal) | 81.1° |
| Beam Angle (Vertical) | 87.1° |
| Dimming | 16-bit Electronic |
| Control Protocol | DMX, RDM |
| DMX Channels | 2, 4, 5, 8, 11, 13, 14, 16 or HSV |
| PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 139 W, 1.14 A @ 120 V, 60 Hz |
| Housing Material | Aluminum Die-cast |
| Exterior Color | Black |
| IP Rating | IP20 (Dry Location) |
| Operating Temperature | -4°F to 113°F |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Power Cable Length | 5 ft |
