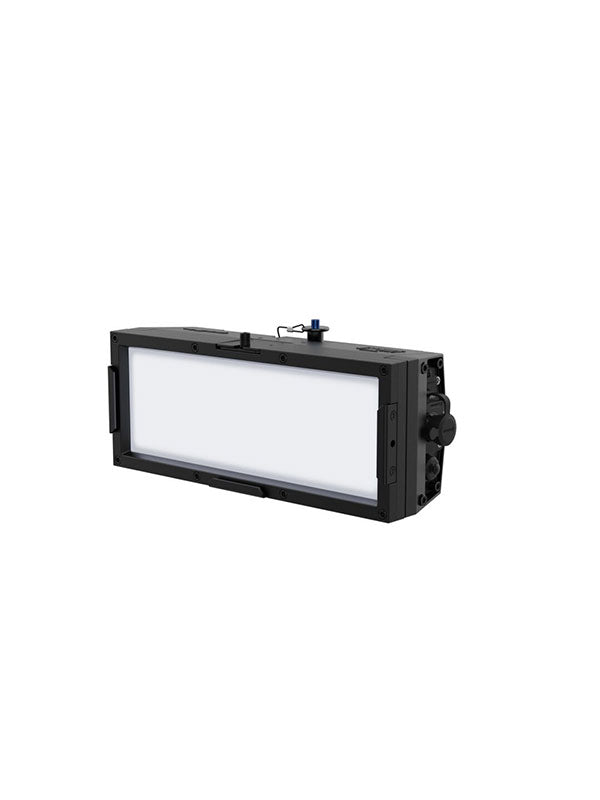

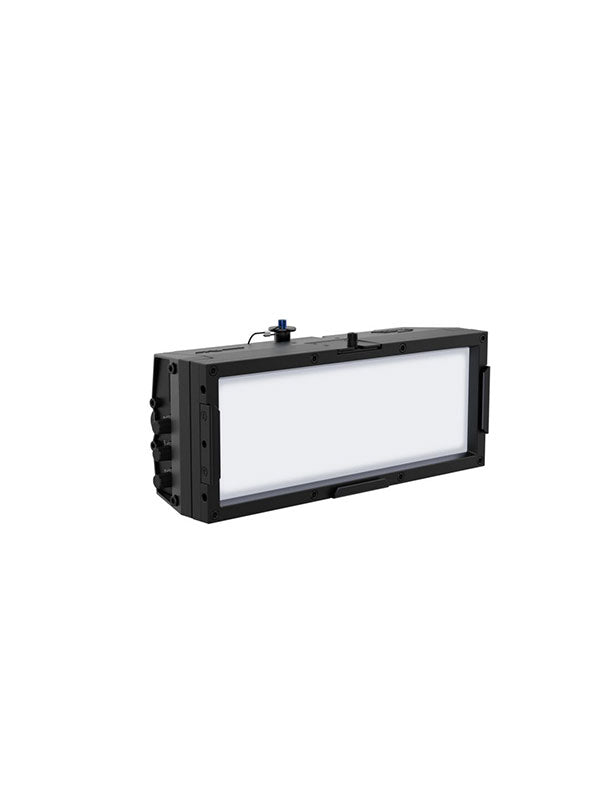

The CHAUVET Professional onAir Panel Min IP is a rugged, full-spectrum LED soft light engineered for demanding broadcast, film, and event environments. Its IP65 rating ensures reliable performance in all weather conditions, making it suitable for both indoor and outdoor applications. This compact fixture delivers superior white light quality with high CRI/TLC and TM-30 scores, alongside a smooth 16-bit dimming curve. Users can precisely adjust +/- green and utilize emulated redshift, or create vibrant color effects with built-in customizable programs. Versatile mounting options, including a ball head with baby pin and threaded clamp inserts, enhance operational flexibility. Designed for silent operation, it integrates seamlessly into studio settings without noise interference. The portable design allows for remote powering via a 28 VDC input, providing exceptional mobility for on-location shoots.
| Light Source | 40 Tri-Color RGB LEDs (1.4W) & 40 Warm White LEDs (0.50W) |
| LED Life Expectancy | 50,000 hours |
| Color Temperature Range | 2800 to 8000 K |
| Color Rendering Index (CRI) | 95 |
| Beam Angle | 94.9° |
| Field Angle | 149.4° |
| Lumens Output | 2,573 |
| Illuminance | 47 lux @ 16.4 feet |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Dimming | Electronic, 16-bit, 4 modes, 4 curves |
| Strobe Rate | 0 to 27 Hz |
| Housing Material | Aluminum Alloy |
| Exterior Color | Black |
| Power Connection | Edison plug (local) to Seetronic Powerkon IP65 |
| DC Power Input | 28 VDC via 3-pin IP65 XLR |
| Power Cable Length | 5 feet |
| Control Protocol | CRMX, RDM |
| DMX Channels | 1, 3, 4, 5, 6, 8, 10, 11, 15 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| IP Rating | IP65 for temporary outdoor use |
| Ambient Operating Temperature | -4°F to 113°F |
