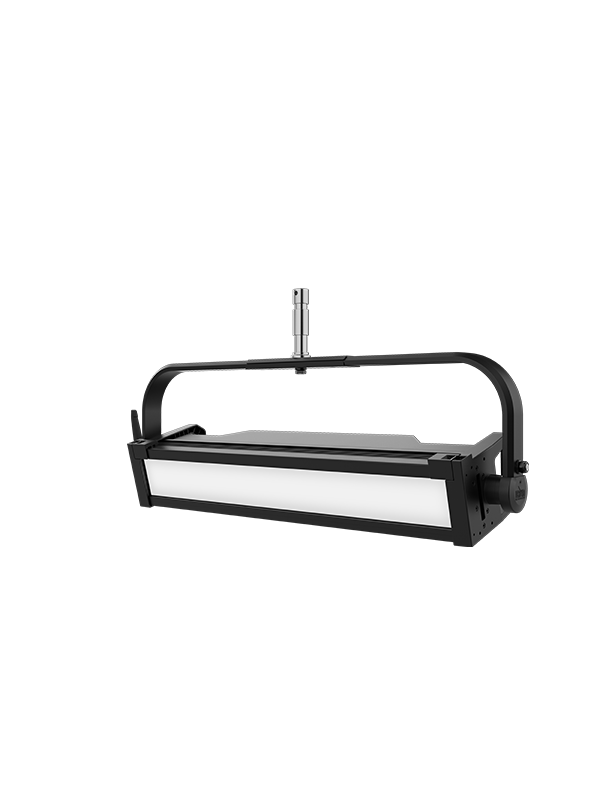

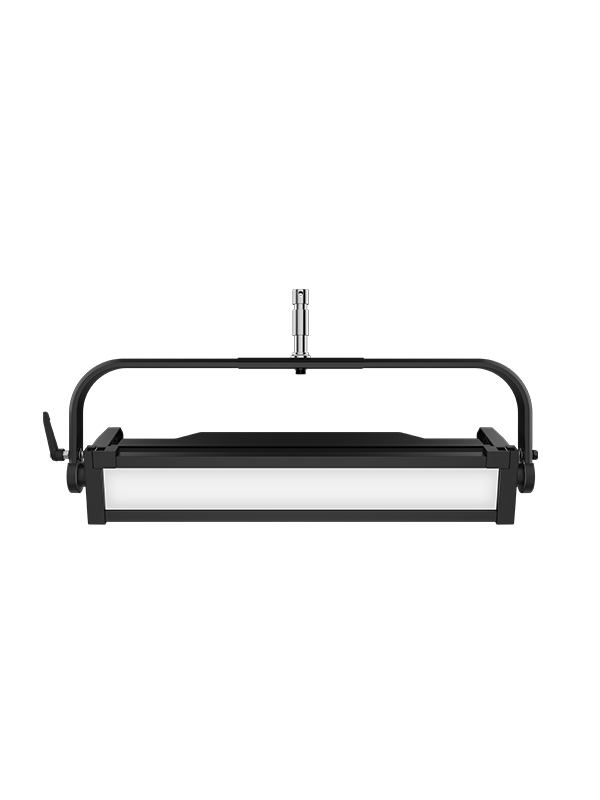

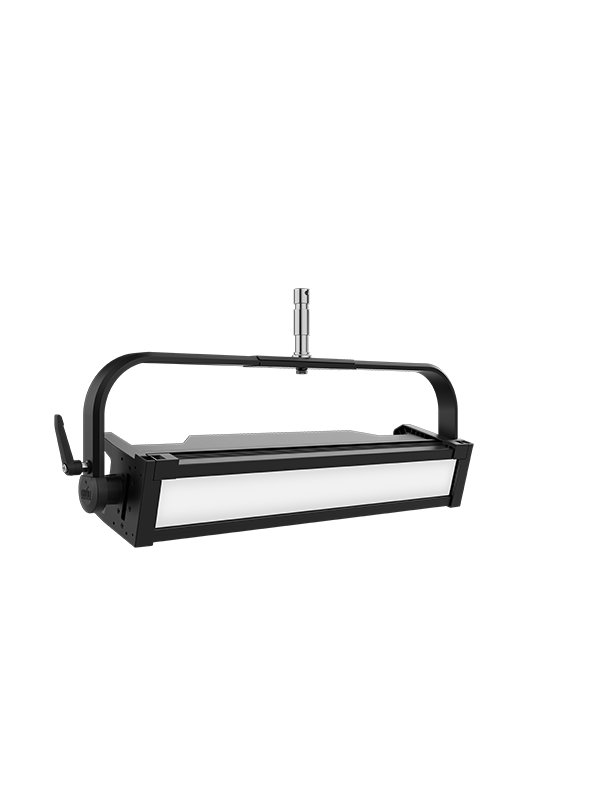

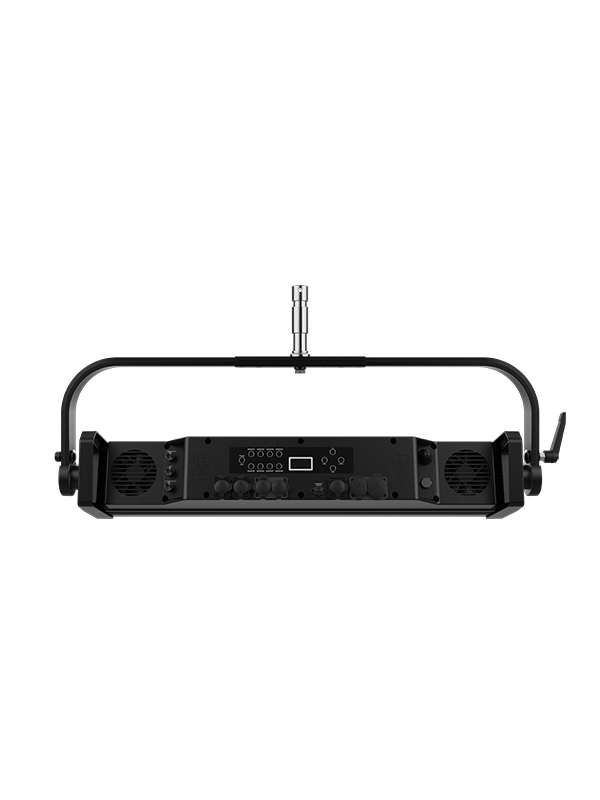

The Chauvet Professional onAir Panel 3 IP is a robust, full-spectrum LED soft light, designed for versatile indoor and outdoor use in broadcast, film, and special events. This 1x3 linear fixture offers superior white light quality with high CRI/TLC and TM-30 scores. It features smooth 16-bit dimming, customizable effects, and +/- green adjustment for precise color control. Operators can easily switch between Jr Pin and Omega Bracket mounting options, and utilize the drop-in slot for diffusers and intensifier filters. Adjustable PWM ensures flicker-free operation for any camera setup, while an optional 28 VDC input allows external battery power. Multiple control protocols, including DMX, RDM, CRMX, Art-Net, and sACN, provide flexible integration. Explore its robust design and advanced features for professional lighting needs.
| Light Source | 120 LEDs (tri-color RGB) 1.5W, 120 LEDs (WW) 0.5W |
| Life Expectancy | 50,000 hours |
| Color Temperature Range | 2800 to 8000 K |
| CRI (at 3200 K) | 91.2 |
| IP Rating | IP65 |
| Dimensions | 11.2 in x 33.75 in x 4.75 in |
| Weight | 26 lb |
| Exterior Color | Black |
| Housing Material | Die-Cast Magnesium |
| PWM Frequencies | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Control Protocols | Art-Net, sACN, DMX, WDMX, CRMX, RDM |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Ambient Temperature Range | -13 °F to 113 °F |
