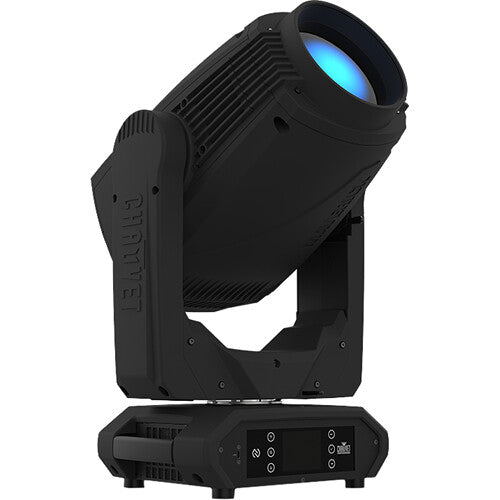

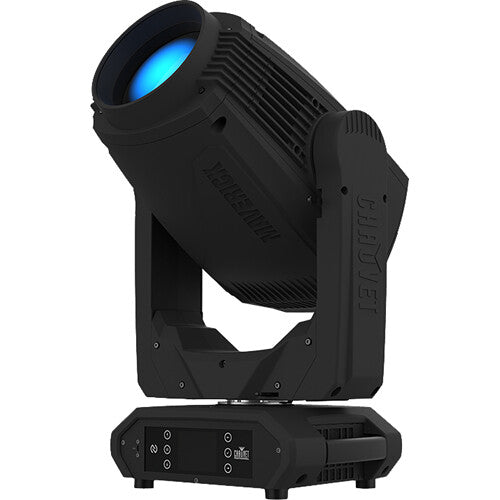

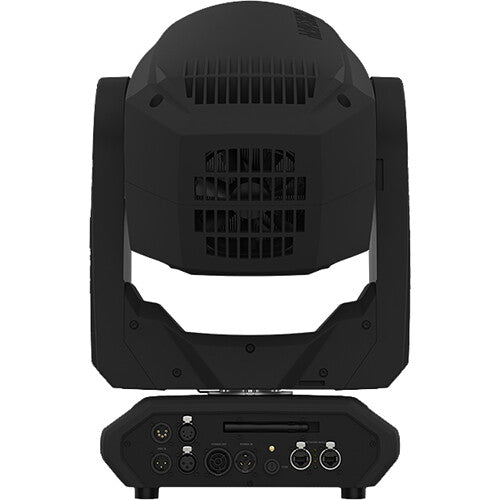

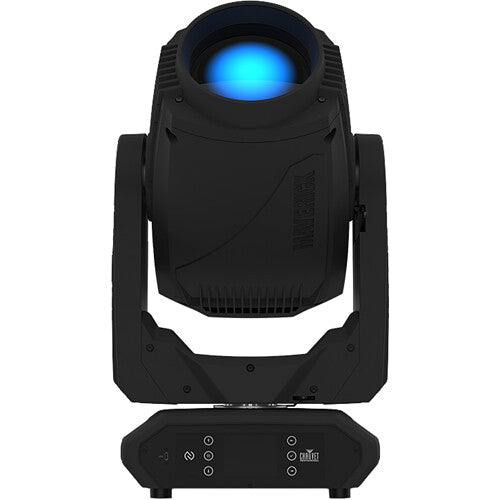

The Maverick Force X Profile is a compact, high-performance LED moving head fixture designed for diverse professional lighting applications. It delivers superb dimming, an expansive 18:1 zoom, and an impressive 18,963 lumens of output. This fixture maintains a flat field of focus across its wide 3.5° to 57.3° beam range. An advanced 4-blade shutter framing system, variable CMY color mixing, and dual gobo wheels offer comprehensive creative control. It also features a 5-facet prism, iris, and frost for versatile beam shaping. Control options include DMX, RDM, sACN, Art-Net, and CRMX, ensuring seamless integration into any setup. Color calibration and gobo selection are matched to other Force series fixtures for cohesive rig performance.
| Light Source | 1 LED (CW) 520 W, 6966 K, 50,000 hours life expectancy |
| Luminous Output | 18,963 Lumens |
| Zoom Range | 3.5° to 57.3° |
| Color System | Variable CMY, 7 Colors + White, CRI & CTB Filters |
| Gobo Wheels | Two (1 Rotating Metal, 1 Rotating Glass) |
| Framing System | 4-Blade Shutters with Dual-Axis Movement, 120° Rotation |
| Control Protocols | DMX, Art-Net, sACN, CRMX, NFC |
| Dimming | 16-bit Electronic with 65,000 Hz PWM |
| Pan and Tilt Range | 540° Pan / 270° Tilt |
| IP Rating | IP20, dry location |
