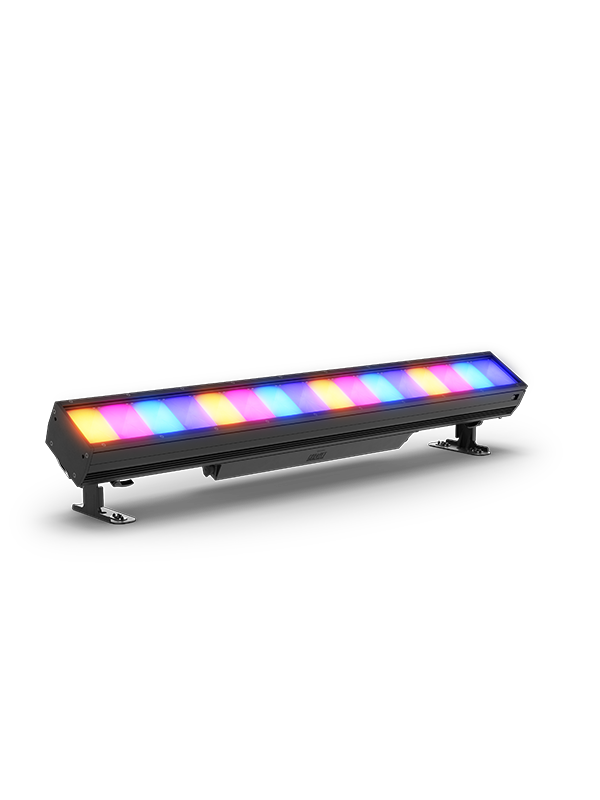

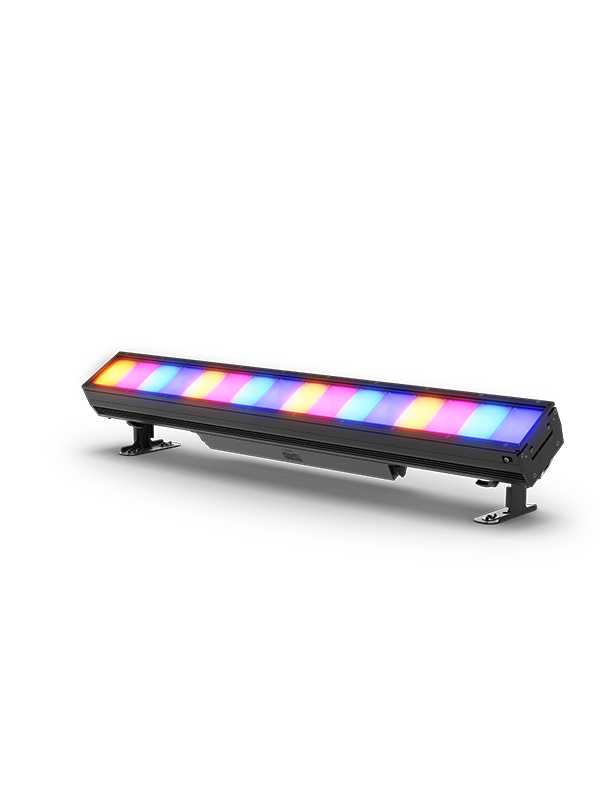

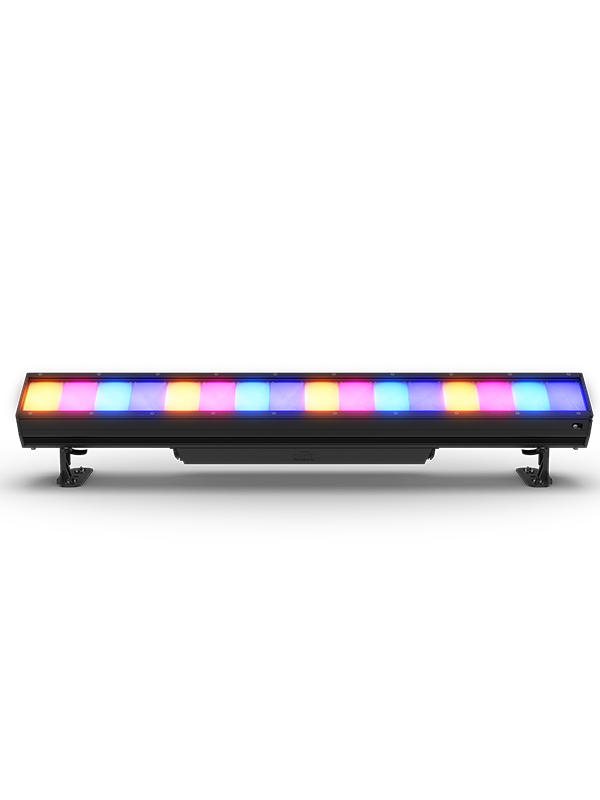

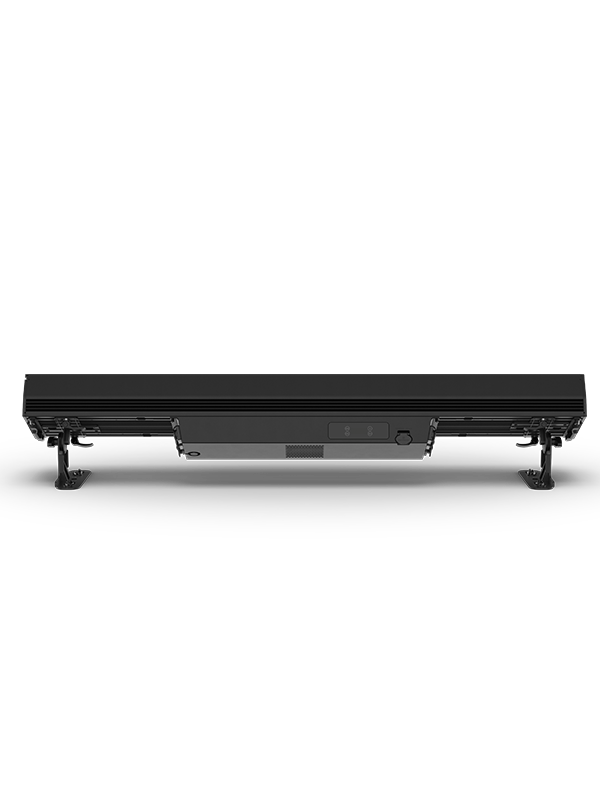

The COLORado Solo Bar 4 is a 16-cell IP65-rated RGBwWL LED batten, delivering a full spectrum of color and precise whites. This versatile fixture enables lighting designers to create beautiful whites with RGBwW or utilize all five colors in the full RGBwWL array. It seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, offering high output and impressive long throw. The batten performs effectively as a cyc, footlight, or traditional downlight, suitable for diverse applications. Its advanced IP65 design ensures lightweight construction and all-weather durability, ideal for both touring and permanent installations. A selection of beam shaping filters is included to broaden projection effects, enhancing creative possibilities and offering comprehensive control via DMX, ArtNet, and sACN. With virtually silent operation and flawless performance, this fixture is perfect for festivals, broadcast, and theatrical productions.
| Light Source | 16 (RGBWwL) LED Engines |
| Color Temperature Range | 2800 to 8000 K |
| Color Rendering Index (CRI) | 95 |
| Beam Angle | 17.4 degrees |
| Field Angle | 38.8 degrees |
| Luminous Output | 17,090 lumens |
| Illuminance | 310.2 foot-candles @ 16.4 feet |
| Selectable PWM Frequencies | 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz |
| Strobe Rate | 0 to 30 Hz |
| Control Protocols | Art-Net, sACN, DMX, CRMX, RDM |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Maximum Power Consumption | 379 Watts |
| IP Rating | IP65 (Weatherproof) |
| Ambient Operating Temperature | -4°F to 113°F |
| Housing Material | Aluminum Diecast, Aluminum Profile |
| Exterior Finish | Black |
