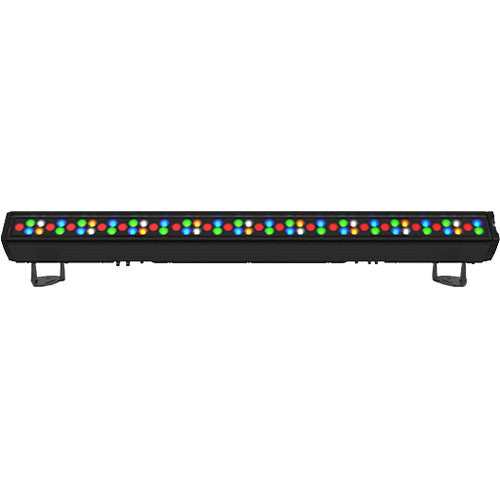

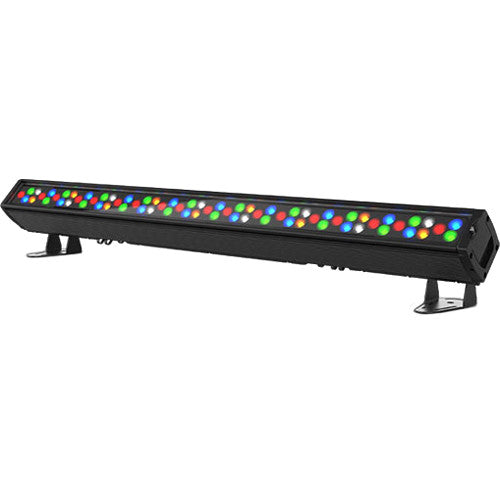

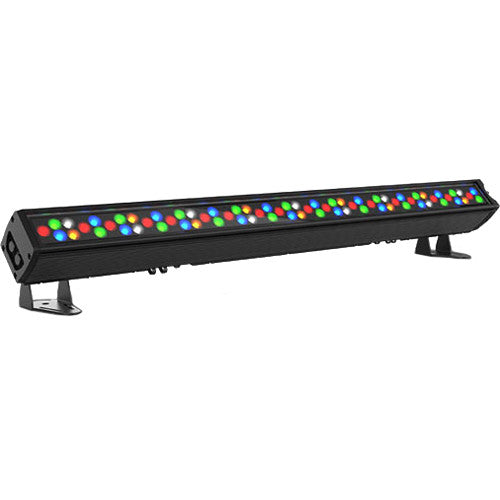

The COLORado Batten 72X is a class-leading, powerful IP65 batten-style wash light, powered by 72 calibrated RGBWA LEDs. This compact, tour-ready unit delivers superb color rendering and a vast palette, from soft pastels to intensely saturated hues. Its advanced 16-bit dimming capability, coupled with five selectable dimming curves, ensures smooth fades and seamless integration into traditional lighting rigs. Integrated trunnions allow for versatile vertical or horizontal hanging, accommodating various staging requirements. Engineered for demanding environments, this durable fixture is ideal for touring, rental, and production, both indoors and outdoors. Advanced color temperature presets and customizable programs offer unparalleled versatility for creative lighting designs. Experience professional-grade performance with this robust and adaptable lighting solution.
| Light Source | 72 RGBWA LEDs (18 Red, 18 Green, 18 Blue, 9 White, 9 Amber), 3 Watts each |
| LED Life Expectancy | 50,000 hours |
| Color Temperature Range | 3200 K to 10000 K |
| CRI (3200 K) | 80 |
| Installed Optics | 24° |
| Beam Angle (Horizontal) | 22° |
| Beam Angle (Vertical) | 18° |
| Field Angle (Horizontal) | 39° |
| Field Angle (Vertical) | 34° |
| Lumens | 3,631 |
| Illuminance | 1730 lux @ 16.4 ft |
| Selectable PWM | 600, 1200, 2000, 2400, 4000, 6000, 25000 Hz |
| Dimmer | Electronic, 16-bit |
| Dim Modes | 5 selectable curves |
| Strobe Rate | 0 to 25 Hz |
| Control Protocol | DMX, RDM |
| DMX Channels (1 Cell) | 3, 4, 5, 8, 8, 9, 10, 10, 16 |
| DMX Channels (3 Cell) | 9, 12, 15, 21, 22, 24, 27, 30, 43 |
| Modes/Personalities | 18 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Consumption (at 120 V, 60 Hz) | 161 W, 1.33 A |
| IP Rating | IP65 (temporary outdoor/wet use) |
| Operating Temperature | -4 °F to 113 °F |
| Exterior Color | Black |
| Housing Material | Aluminum alloy, Aluminum die-cast |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input/Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Power Cable Length | 5 ft |
| Certifications | CE, MET |
