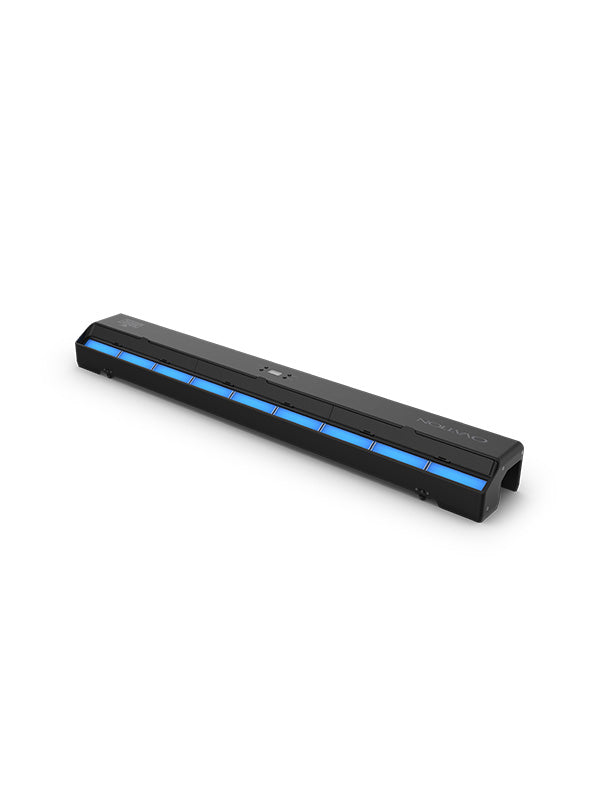

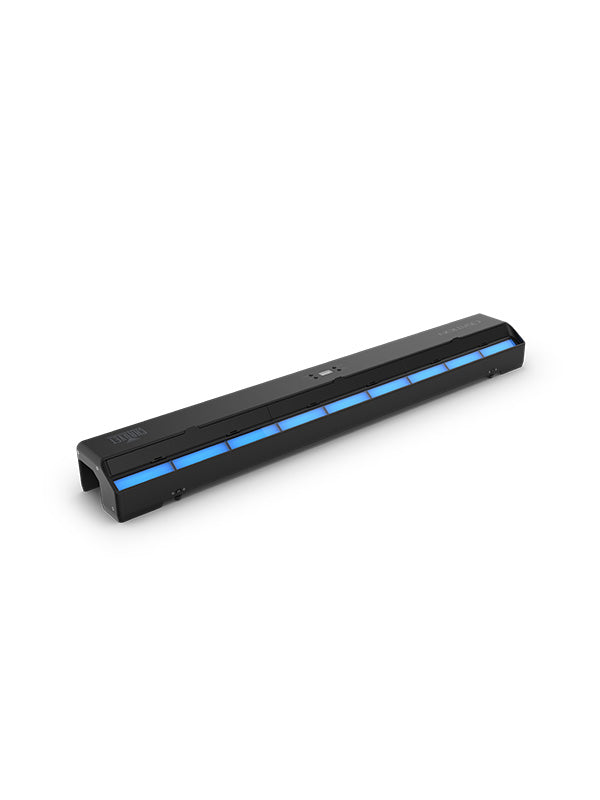

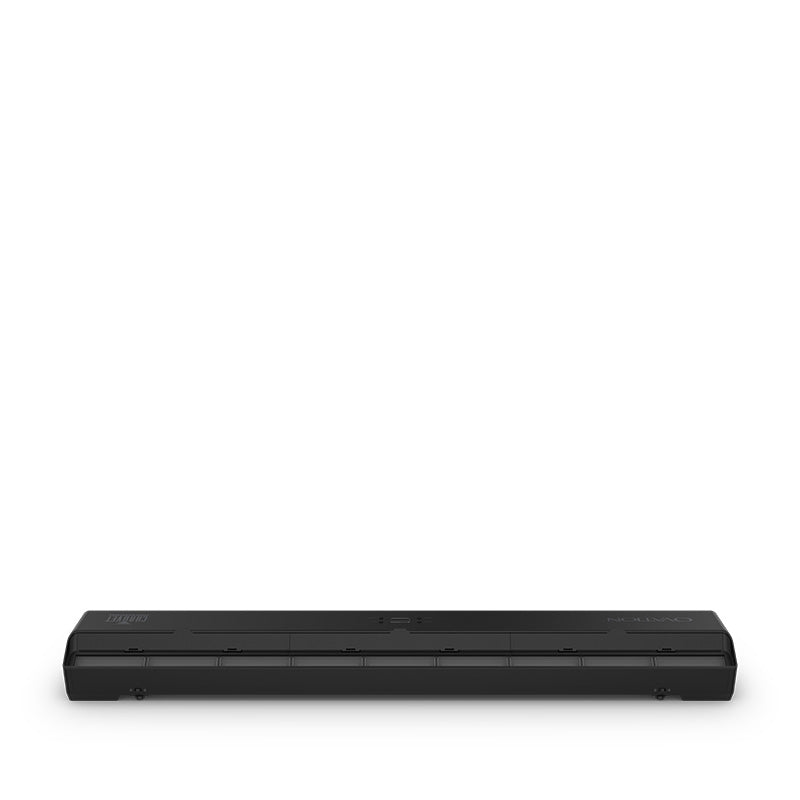

The Ovation CYC 3 FC delivers a homogeneous field of light with significant reach, designed for versatile stage applications. Its low-profile design seamlessly integrates into sets as either a cyc wash or footlight. The unit pairs perfectly with the CYC 1 FC for extended, consistent coverage across large surfaces. Convection cooling ensures silent operation, a critical feature for studio and theatre environments. An advanced RGBAL color-mixing system renders a vast spectrum of vibrant, saturated colors with tremendous realism. Integrated kick stands and an adjustable glare shield provide precise beam modification and throw. This fixture represents a professional lighting solution for theatrical, film, and production needs.
| Light Source | 180 LEDs (36 Red, 36 Green, 36 Blue, 36 Amber, 36 Lime) 2.5W to 3.5W (725 mA) |
| Color Temperature Range | 2800 to 6500 Kelvin |
| CRI (at 3200K) | 90 |
| Beam Angle (Horizontal) | 111.4° |
| Field Angle (Horizontal) | 151.8° |
| Lumens | 19,575 |
| Illuminance (total) | 280 lux @ 16.4 feet |
| PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz |
| Dimmer | Electronic |
| Strobe Rate | 0 to 29 Hz |
| Dim Modes | 4 |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 3, 5, 7, 10, 12, 13, 16, 17, 33 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Consumption (at 120 V, 60 Hz) | 345 Watts, 2.93 Amps |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Power Cable Length | 5 feet |
| IP Rating | IP20 (dry location) |
| Operating Temperature | -4°F to 113°F |
| Certifications | CE, MET, FCC, UKCA |
